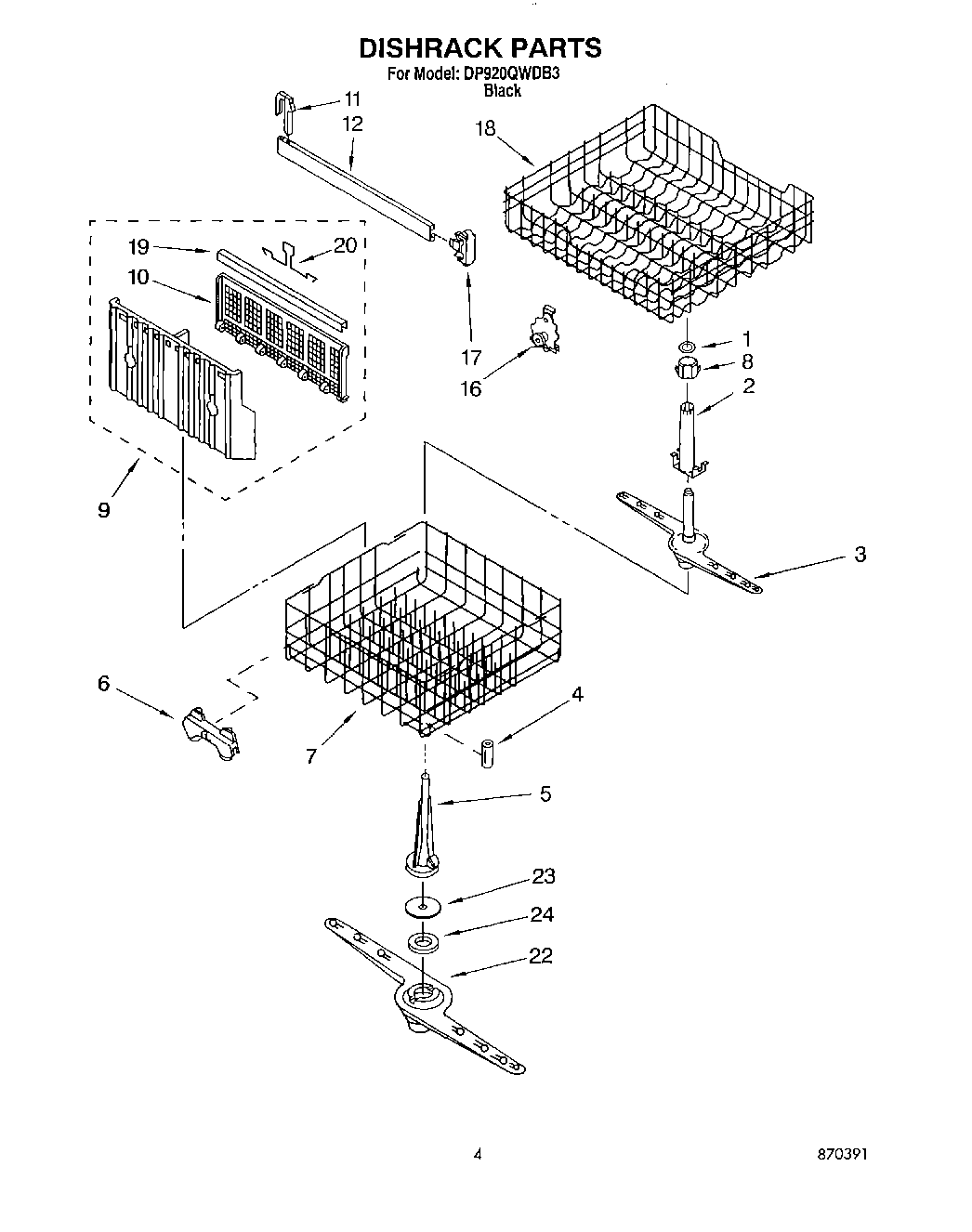

DP920QWDB3 04 – DISHRACK

Products

PositionProduct
1Clip
2Support, Arm
3Spray Arm, Upper
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
8Support, Lock Spray Arm
9Silverware Basket Assembly
10Cover, Basket
11Stop, Track (2)
12Track, Rack
16WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
17Endcap, Front or Rear (2)
18W11169039 Whirlpool Dishwasher Dish Rack
19Trim, Basket
20Handle, Basket
22WP3376848 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
