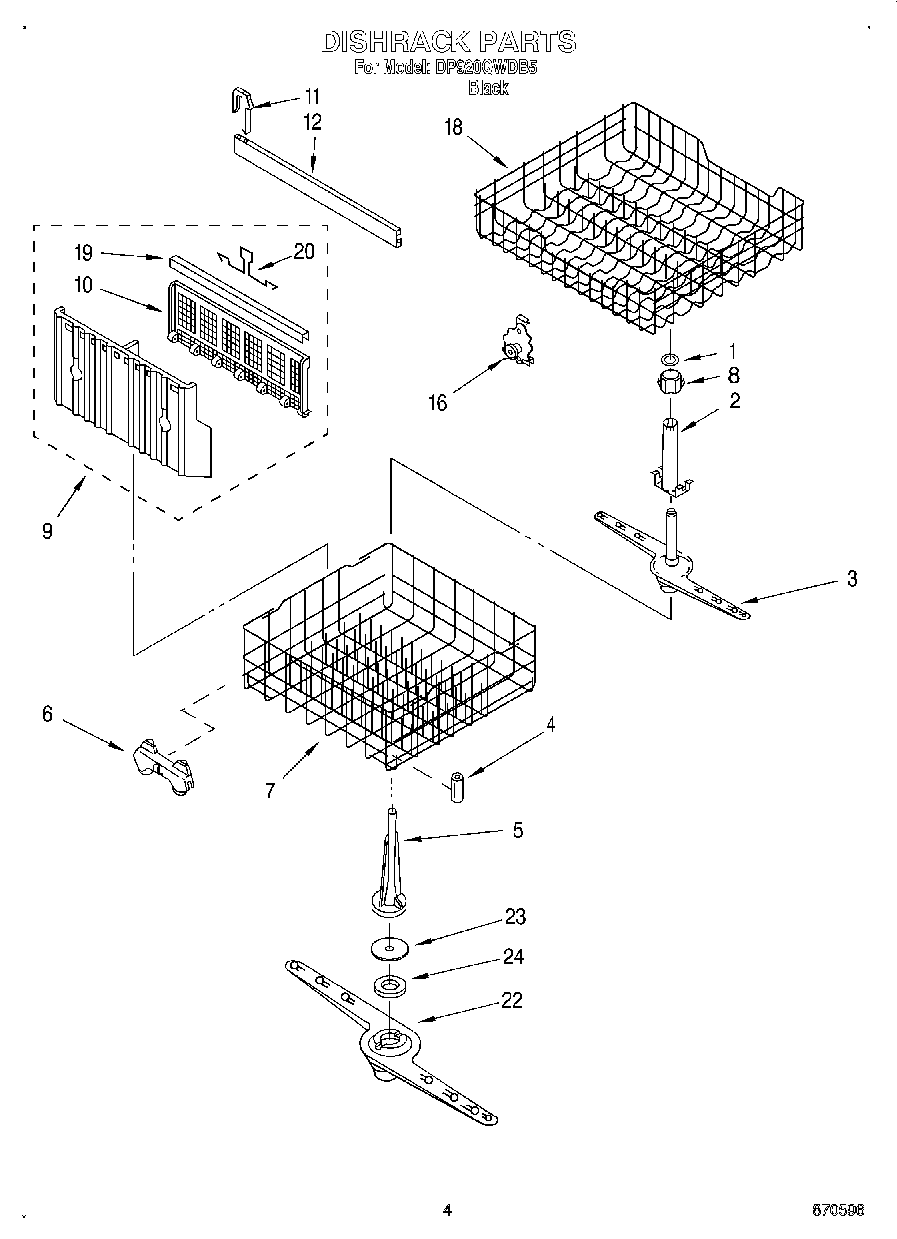

DP920QWDB5 04 – DISHRACK

Products

PositionProduct
1Clip
2Support, Arm
3Spray Arm, Upper (Also Order Items 1 & 8)
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
8Support, Lock Spray Arm
9Silverware Basket Assembly
10Cover, Basket
11WP3379941 Whirlpool Dishwasher Stop
12WP3385089 Whirlpool Track
16WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18W11169039 Whirlpool Dishwasher Dish Rack
19Trim, Basket
20Handle, Basket
22WP3376848 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
