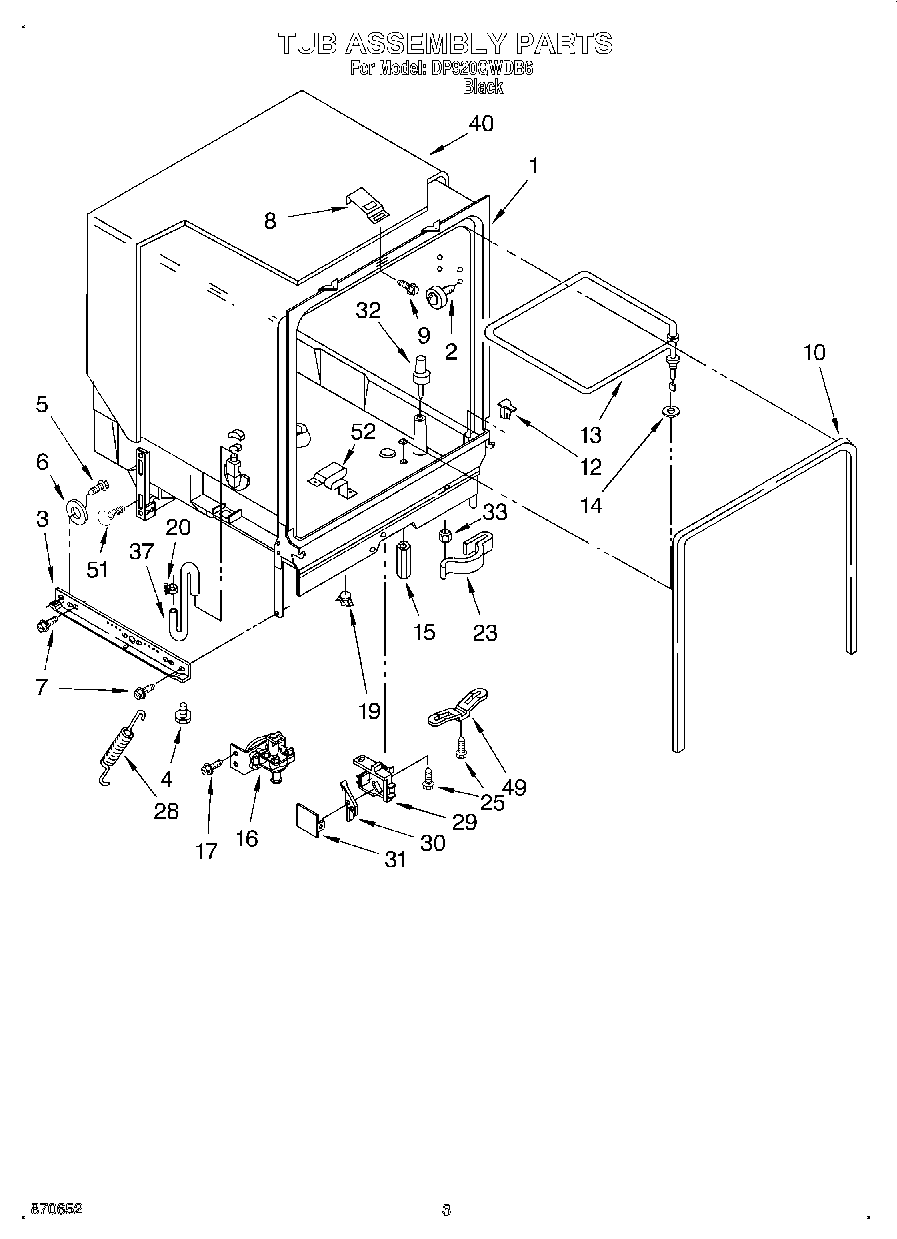

DP920QWDB6 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
12	DEFLECTOR-DISHWASHER
13	WPW10082896 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	WP8274220 Whirlpool Dishwasher Inlet Valve
17	WP489069 Whirlpool Compactor Screw
19	WP661566 Whirlpool High Limit Thermostat
20	WP596669 Whirlpool Hose Clamp
23	8528351 Whirlpool Clip
25	WP304231 Whirlpool Dishwasher Screw
28	WP3374343 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
37	Hose, Inlet
40	W11086533 Whirlpool Dishwasher Shield
49	W10539489 Whirlpool Dishwasher Bracket-Stat
51	WP304666 Whirlpool Dishwasher Retainer
52	3379740 Whirlpool Dishwasher Heater Support
