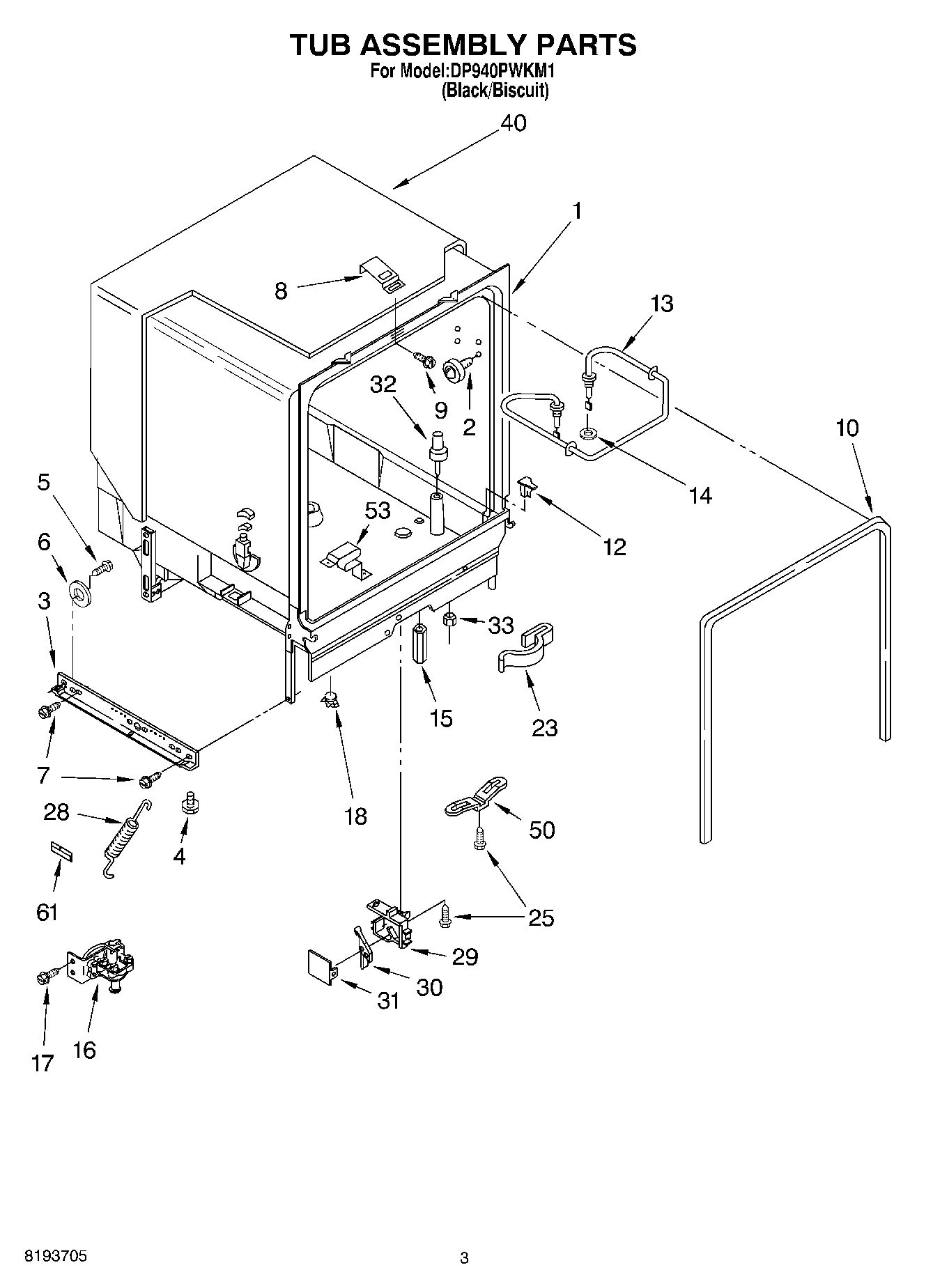

DP940PWKM1 03 – TUB ASSEMBLY
Written by
in
DP940PWKM1 03 – TUB ASSEMBLY
Products
Position
Product
1
Tub Assembly
2
Tub, Wheel Assembly (8)
3
Runner (2)
4
8193716 Whirlpool Leveling Leg
5
Screw (2)
6
WP302819 Whirlpool Dishwasher Wheel
7
SCREW
8
Plate, Latch
9
WP3374720 Whirlpool Dishwasher Screw
10
WPW10509257 Whirlpool Door Gasket
12
DEFLECTOR-DISHWASHER
13
WPW10082896 Whirlpool Dishwasher Heater
14
WP717273 Whirlpool Dishwasher Rubber Washer
15
WPW10477552 Whirlpool Dishwasher Terminal Nut
16
WP8274220 Whirlpool Dishwasher Inlet Valve
17
WP489069 Whirlpool Compactor Screw
18
WP661566 Whirlpool High Limit Thermostat
23
WP3400935 Whirlpool Dishwasher Clip
25
WP304231 Whirlpool Dishwasher Screw
28
WP3374343 Whirlpool Dishwasher Spring
29
Housing, Float Switch
30
Switch, Float
31
8318219 Whirlpool Dishwasher Cover Housing
32
WP3376397 Whirlpool Dishwasher Float Assembly
33
Nut
40
W11086533 Whirlpool Dishwasher Shield
50
W10539489 Whirlpool Dishwasher Bracket-Stat
53
3379740 Whirlpool Dishwasher Heater Support
61
Friction Pad (Velcro)
←
