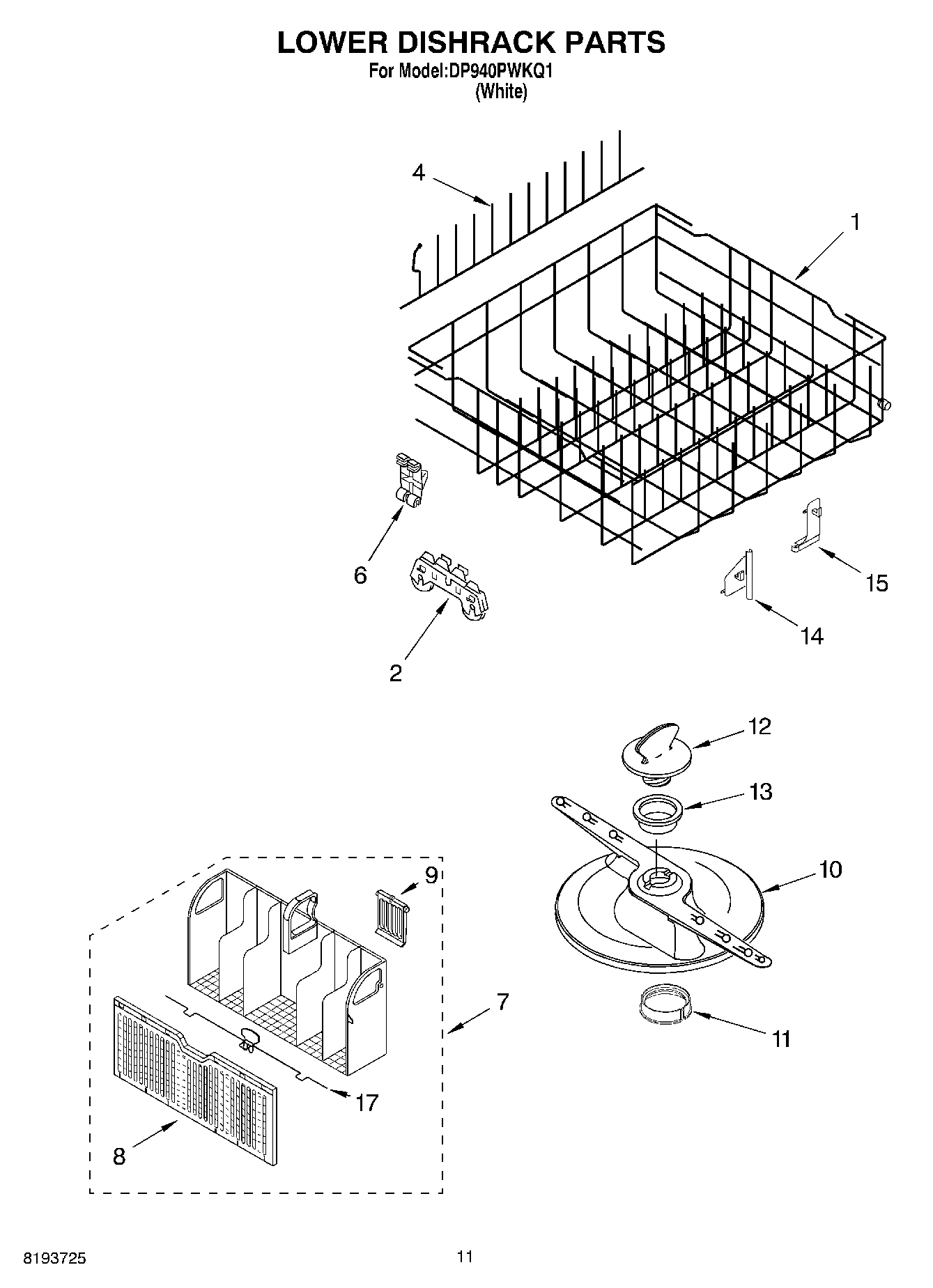

DP940PWKQ1 07 – LOWER DISHRACK

DP940PWKQ1 07 – LOWER DISHRACK

Written by

in

DP940PWKQ1 07 – LOWER DISHRACK

Products

PositionProduct
1W10161215 Whirlpool Dishwasher Dishrack
2WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
4Tinerow, Folding
6WP8268522 Whirlpool Dishwasher Retainer
7Silverware Basket Assembly
8Door, Silverware Basket
9Lid, Silverware Basket
10WP8268874 Whirlpool Dishwasher Spray Arm
11WP3376846 Whirlpool Seal
12WP8268873 Whirlpool Dishwasher Nut
13WP9742946 Whirlpool Dishwasher Spray Arm Bearing
148268867 Whirlpool Dishwasher Clip
158268868 Whirlpool Dishwasher Clip
17Latch Assembly
