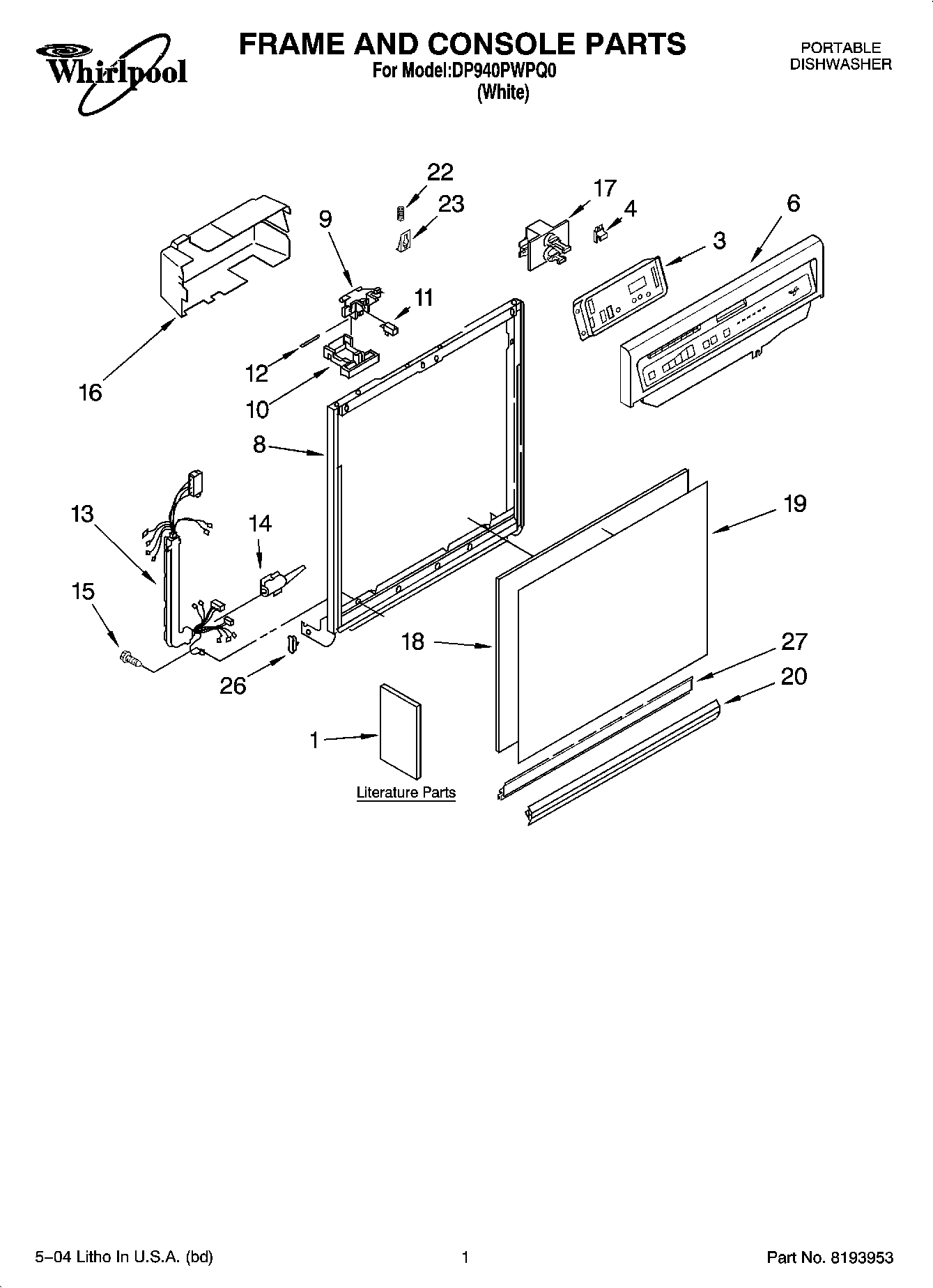

DP940PWPQ0 01 – FRAME AND CONSOLE PARTS

DP940PWPQ0 01 – FRAME AND CONSOLE PARTS

Written by

in

DP940PWPQ0 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1Guide, Energy
1Guide, Use & Care Tech Sheet
1Instructions, Installation
1DIAGRAM, WIRING
1Instructions, Installation (Supplement) (Location Your Water Supply)
3Control, Electronic
4675813 Whirlpool Thermal Fuse Kit
6Console (Includes Insert & Active Overlay) (White)
8Door Frame (Includes Item 24) (White)
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
18Door, Sound Absorber
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel (White)
23675782 Whirlpool Dishwasher Catch
26WP3373234 Whirlpool Dishwasher Bearing
27WP3374716 Whirlpool Dishwasher Channel
