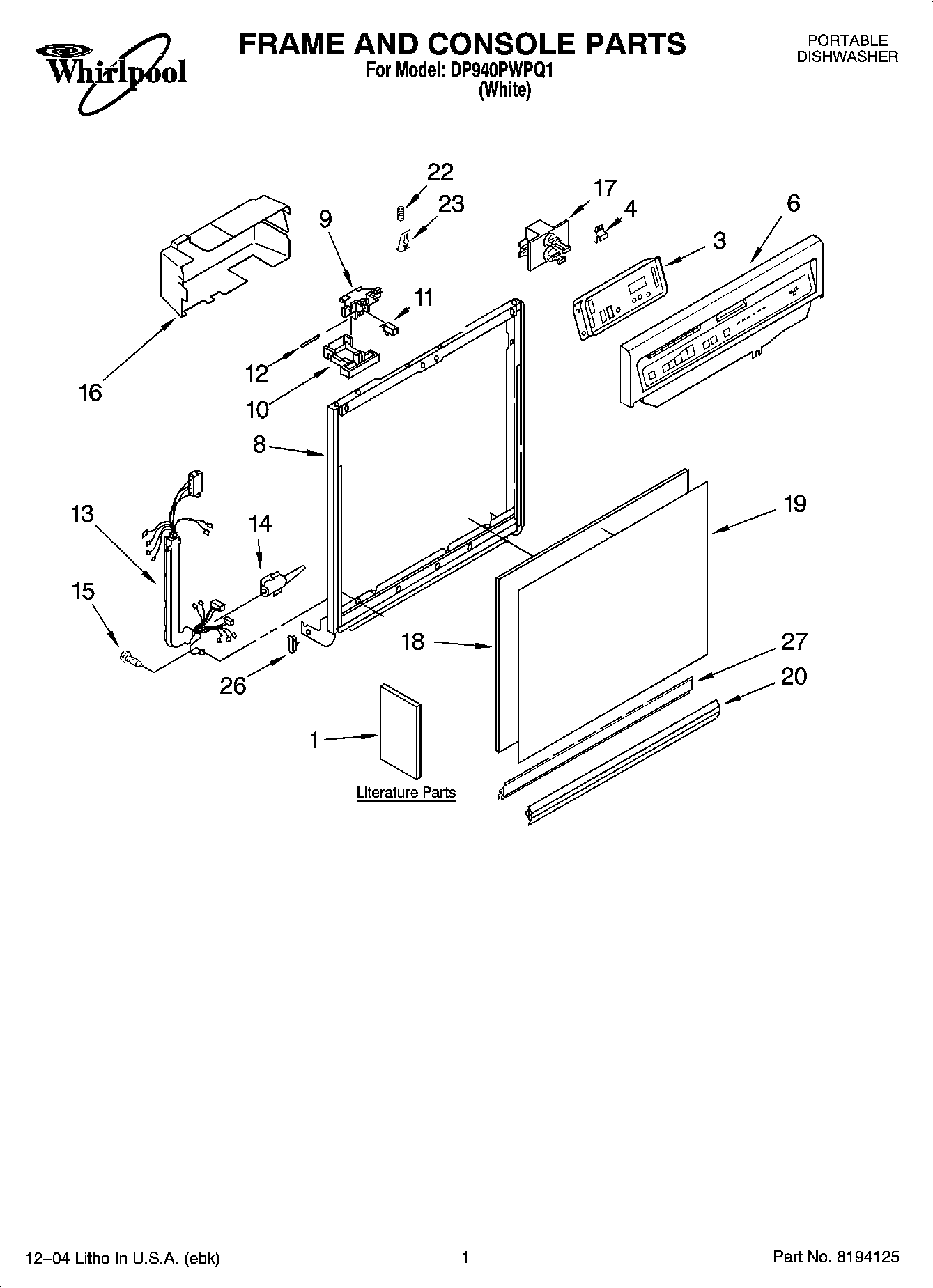

DP940PWPQ1 01 – FRAME AND CONSOLE PARTSadmin2025-04-26T10:56:48+00:00DP940PWPQ1 01 – FRAME AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | DIAGRAM, WIRING |
| 1 | Guide, Use & Care Tech Sheet |
| 1 | Guide, Energy |
| 1 | Instructions, Installation |
| 3 | Control, Electronic |
| 4 | 675813 Whirlpool Thermal Fuse Kit |
| 6 | Console (Includes Insert & Active Overlay) (White) |
| 8 | Door Frame (Includes Item 24) (White) |
| 9 | WP3380854 Whirlpool Door Latch Bolt |
| 10 | Lever, Latch White |
| 11 | Shield, Switch |
| 12 | Pin, Switch (2) |
| 13 | Harness and Protector |
| 14 | 3376405 Whirlpool Dishwasher Elbow |
| 15 | WP3400892 Whirlpool Dishwasher Screw |
| 16 | Cover, Timer |
| 17 | Motor, Dual |
| 18 | Door, Sound Absorber |
| 19 | WP3369769 Whirlpool Dishwasher Panel |
| 20 | Retainer, Panel (White) |
| 23 | 675782 Whirlpool Dishwasher Catch |
| 26 | WP3373234 Whirlpool Dishwasher Bearing |
| 27 | WP3374716 Whirlpool Dishwasher Channel |
