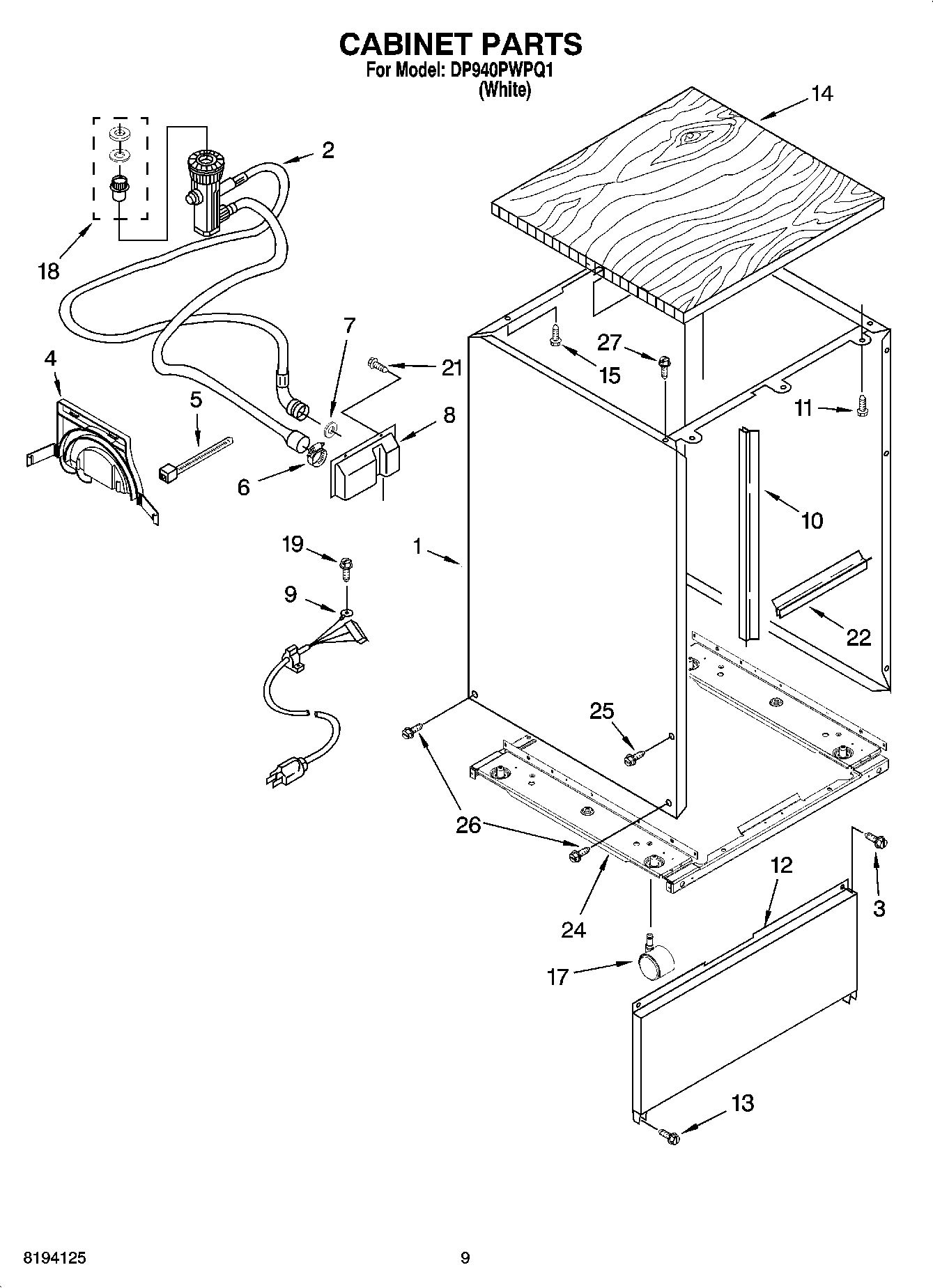

DP940PWPQ1 06 – CABINET PARTS

Products

Position	Product
1	Shell Assembly (White)
2	WPW10273574 Whirlpool Dishwasher Filter & DRNHOS
3	WP302868 Whirlpool Screw
4	3378109 Whirlpool Dishwasher Cushion
5	WPW10339879 Whirlpool Wire Tie
6	WP3367052 Whirlpool Hose Clamp
7	WP16123 Whirlpool Washer
8	Housing, Hose
9	W10831279 Whirlpool Dishwasher Power Cord
10	Protector-Edge, Divider
11	WP3373329 Whirlpool Dishwasher Screw
12	Shroud, Caster
13	Screw
14	WP3373199 Whirlpool Dishwasher Top Panel
15	SCREW
17	WP8559933 Whirlpool Caster
18	WPW10254672 Whirlpool Faucet Adapter
21	SCREW
22	Protector-Edge, Divider
24	FRAME, ASSEMBLY
25	Screw, 8-18 x 1/2
26	Screw
27	302251 Whirlpool Dishwasher Screw
