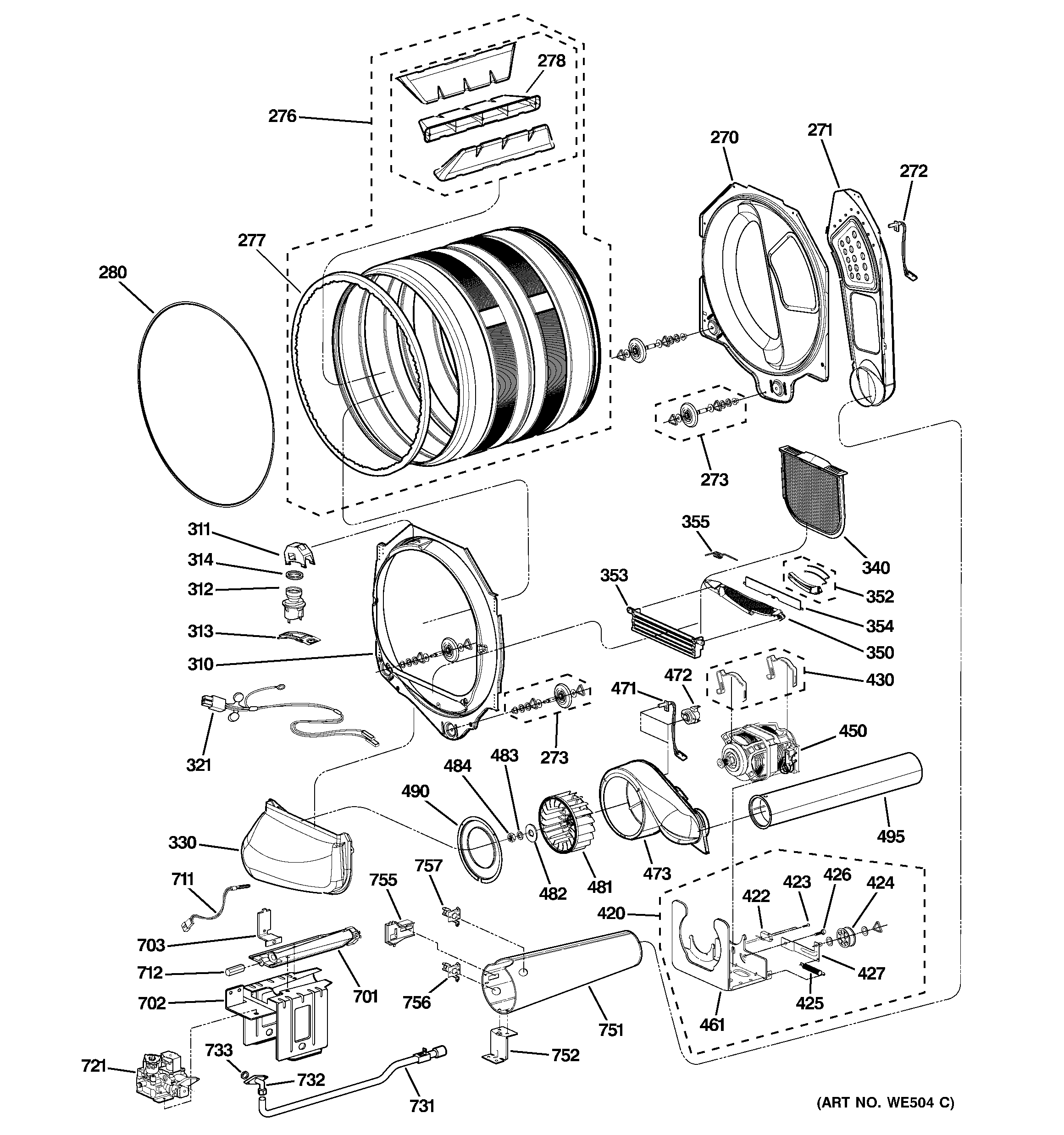

DPGT650GH0MG DRUM, MOTOR & BLOWER

DPGT650GH0MG DRUM, MOTOR & BLOWER

Written by

in

DPGT650GH0MG DRUM, MOTOR & BLOWER

Products

Position	Product
270	GEN WE14X10076
271	GEN WE14X10077
272	GEN WE04X10111
273	WE03X10008 GE Dryer Roller Assembly
276	GEN WE21X10015
277	SEAL- REAR DRUM
278	WE14X10080 GE Lifter
280	WE12X10011 GE Belt
310	DRUM FRONT ASM
311	GEN WE01X10191
312	SOCKET- LAMP
313	COVER BRACKET – LAMP
314	GEN WE01X10193
321	GEN WE08X10062
330	BLOWER DUCT ASM
340	GEN WE18X10008
350	GEN WE18X10010
352	SENSOR ASM
353	GEN WE14X10059
354	GEN WE18X10011
355	GEN WE01X10212
420	GEN WE13X10031
422	IDLER SWITCH
423	GEN WE02X10061
424	IDLER PULLEY ASM
425	GEN WE01X10195
426	GEN WE02X10062
427	GEN WE01X10241
430	CLAMP MOTOR
450	MOTOR ASM
461	GEN WE13X10030
471	OUTLET THERMISTOR
472	OUTLET THERMOSTAT
473	GEN WE14X10079
481	GEN WE16X10002
482	WE02X10063 GE Washer Lock C03
483	GEN WE02X10064
484	GEN WE02X10065
490	BLOWER GUIDE SUPPORT
495	GEN WE14X10062
701	GEN WE11X10014
702	GEN WE11X10015
703	GEN WE01X10199
711	WE04X10116 GE Igniter
712	GEN WE01X10240
721	GEN WE01X10243
731	WE01X10202 GE Pipe Assembly
732	GEN WE01X10203
733	GEN WE01X10204
751	GEN WE14X10063
752	GEN WE01X10205
755	GEN WE04X10117
756	GEN WE04X10141
757	GEN WE04X10142
