DPGT750EC2PL DRUM, BLOWER & MOTOR – Aparts

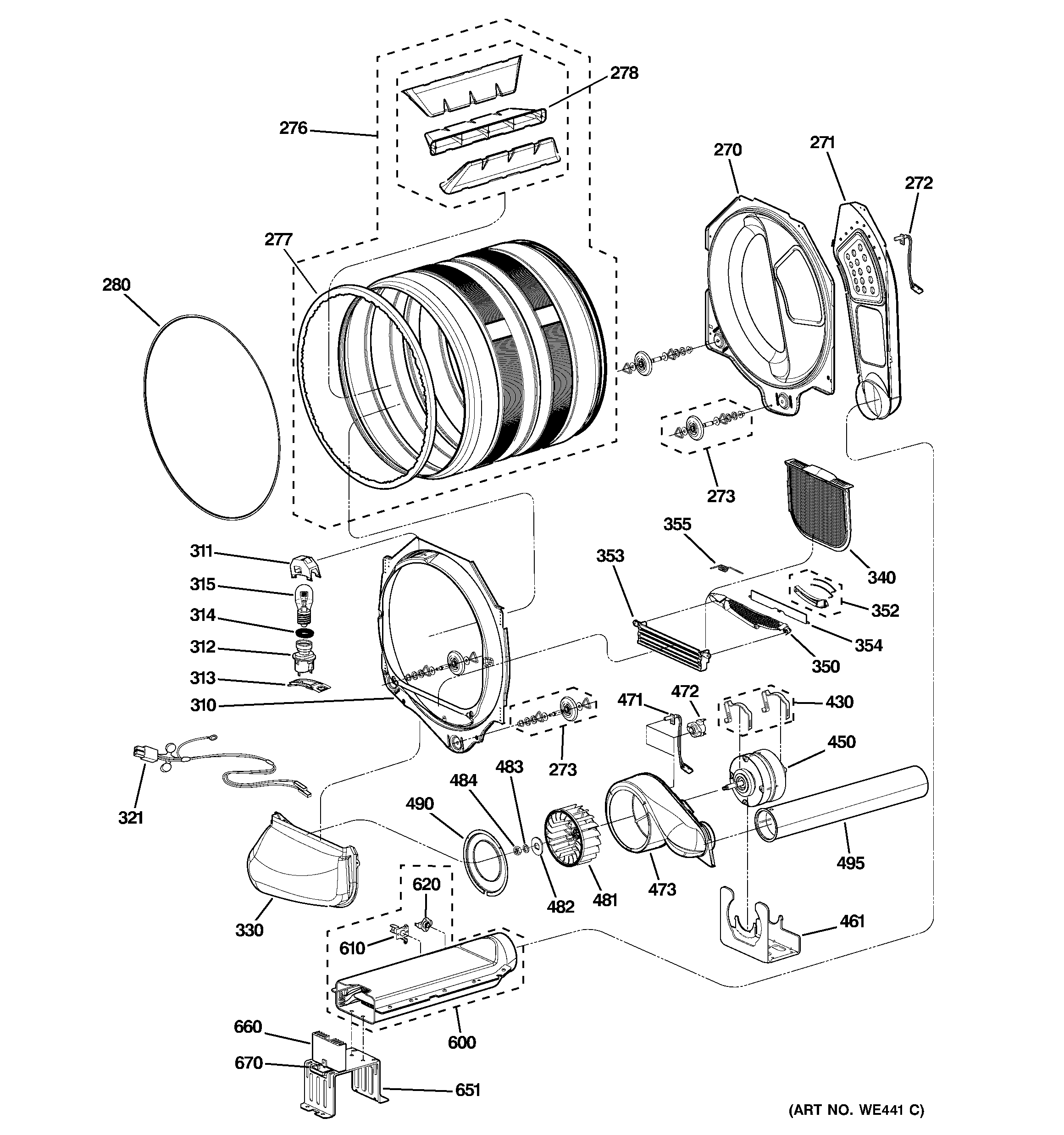

DPGT750EC2PL DRUM, BLOWER & MOTOR

Products

Position	Product
270	GEN WE14X10054
271	GEN WE14X10064
272	GEN WE04X10111
273	WE03X10008 GE Dryer Roller Assembly
276	GEN WE21X10015
277	SEAL- REAR DRUM
278	WE14X10080 GE Lifter
280	WE12X10011 GE Belt
310	DRUM FRONT ASM
311	GEN WE01X10191
312	SOCKET- LAMP
313	COVER BRACKET - LAMP
314	GEN WE01X10193
315	GEN WE04X10131
321	GEN WE08X10062
330	BLOWER DUCT ASM
340	GEN WE18X10008
350	GEN WE18X10010
352	SENSOR ASM
353	GEN WE14X10059
354	GEN WE18X10011
355	GEN WE01X10212
430	CLAMP MOTOR
450	GEN WE17X10008
461	GEN WE13X10025
471	OUTLET THERMISTOR
472	GEN WE04X10123
473	GEN WE14X10065
481	GEN WE16X10002
482	WE02X10063 GE Washer Lock C03
483	GEN WE02X10064
484	GEN WE02X10065
490	BLOWER GUIDE SUPPORT
495	GEN WE14X10062
600	GEN WE11X10016
610	GEN WE04X10124
620	GEN WE04X10125
651	GEN WE01X10208
660	GEN WE11X10017
670	GEN WE04X10126
