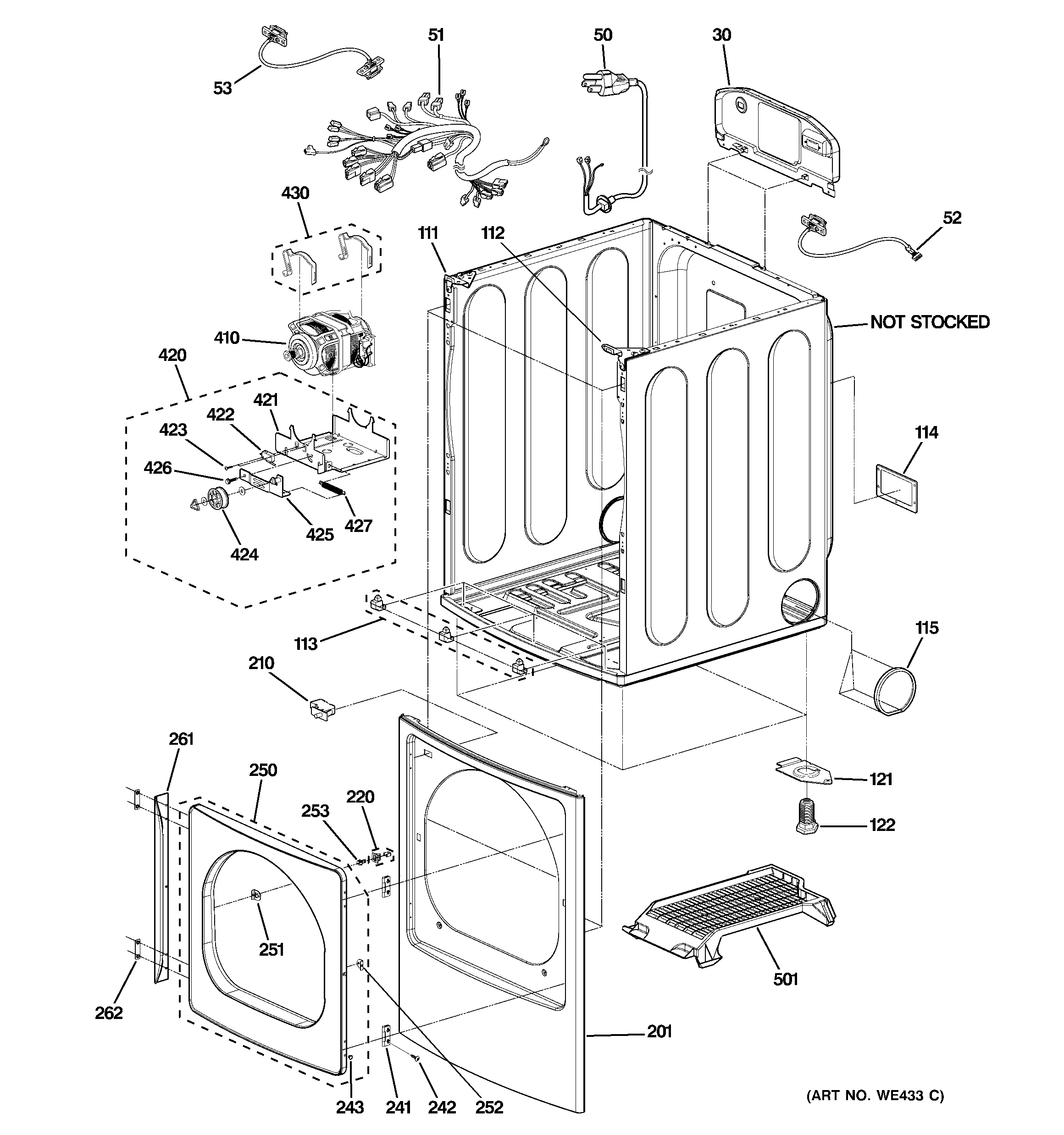

DPGT750GC1WW CABINET, FRONT PANEL & DOOR – Aparts

DPGT750GC1WW CABINET, FRONT PANEL & DOOR

Products

Position	Product
30	GEN WE20X10078
50	GEN WE08X10064
51	GEN WE08X10059
52	INTERNAL COMM CABLE
53	GEN WE08X10061
111	GEN WE01X10179
112	GEN WE01X10180
113	HOLDER-LEG BRACKET
114	GEN WE14X10053
115	GEN WE01X10210
115	GEN WE01X10182
121	BRACKET-LEG BASE
122	GEN WE02X10059
201	GEN WE20X10080
201	GEN WE20X10076
210	GEN WE04X10110
220	CATCH- DOOR STRIKE
241	GEN WE01X10185
242	WE02X10060 GE Screw
243	GEN WE01X10216
250	GEN WE10X10017
250	GEN WE10X10018
251	GEN WE01X10186
252	BRACKET- DOOR SUPPORT
253	DOOR STRIKE
261	GEN WE01X10189
262	GEN WE01X10190
410	GEN WE17X10007
420	GEN WE13X10023
421	GEN WE13X10024
422	IDLER SWITCH
423	GEN WE02X10061
424	IDLER PULLEY
425	GEN WE01X10195
426	GEN WE02X10062
427	GEN WE01X10196
430	CLAMP MOTOR
501	GEN WE01X10198
