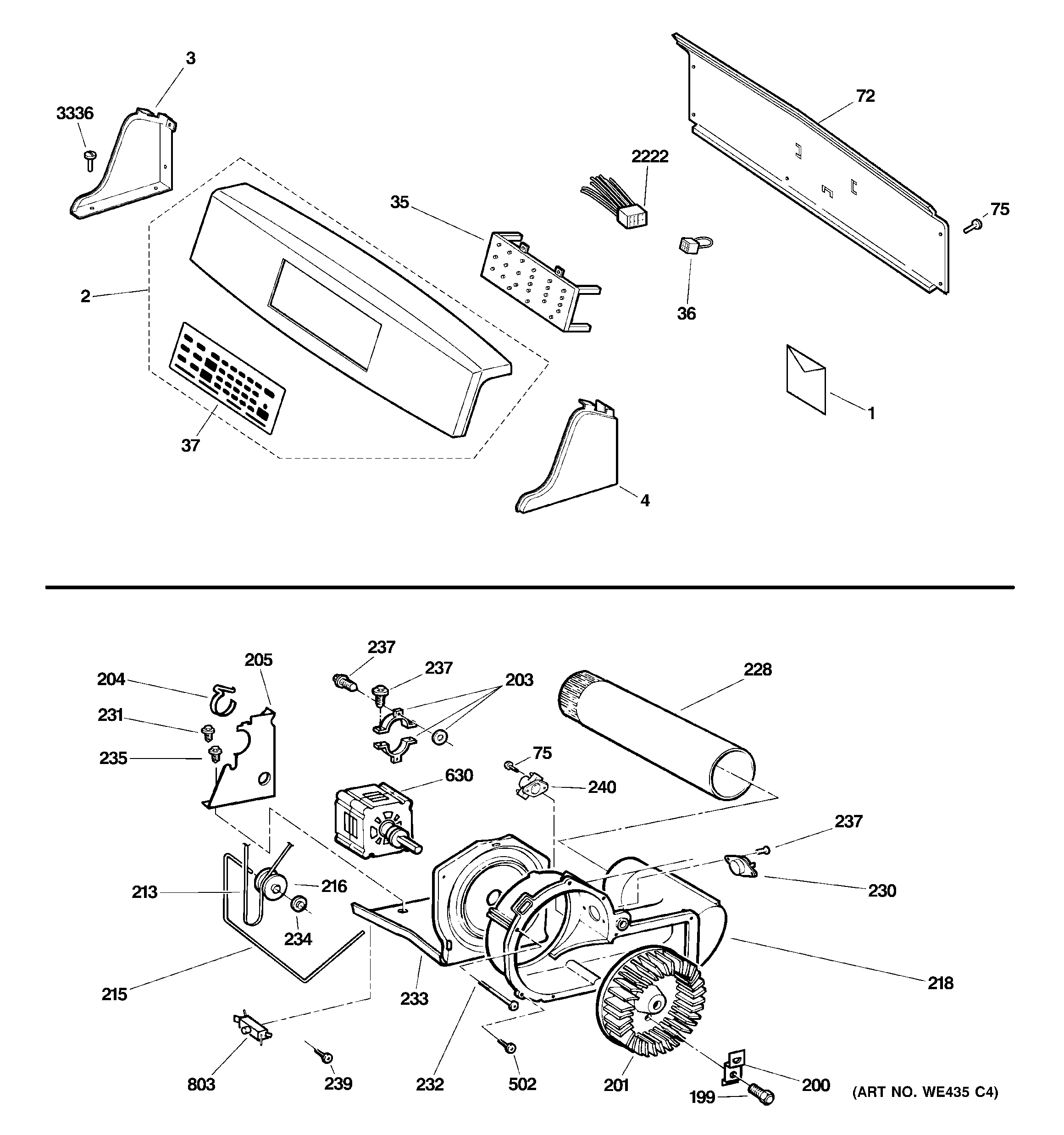

DPSB613GD2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DPSB613GD2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DPSB613GD2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 49-90160
1GEN 31-16077
1GEN 31-16026
2GEN WE19M1362
3GEN WE19M1312
4GEN WE19M1311
35WE4M296 GE Washer Control Module Board
36GEN WD21X10036
37GEN WE19M1366
72GEN WE19M1310
75WZ4X241D GE Screw Package
75WE2M173 GE Screw
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
203WE2M176 GE Washer Insulated
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
233GEN WD2M174
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240GEN WE4M261
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
2222GEN WE5M10
3336WE2M189 GE Screw
