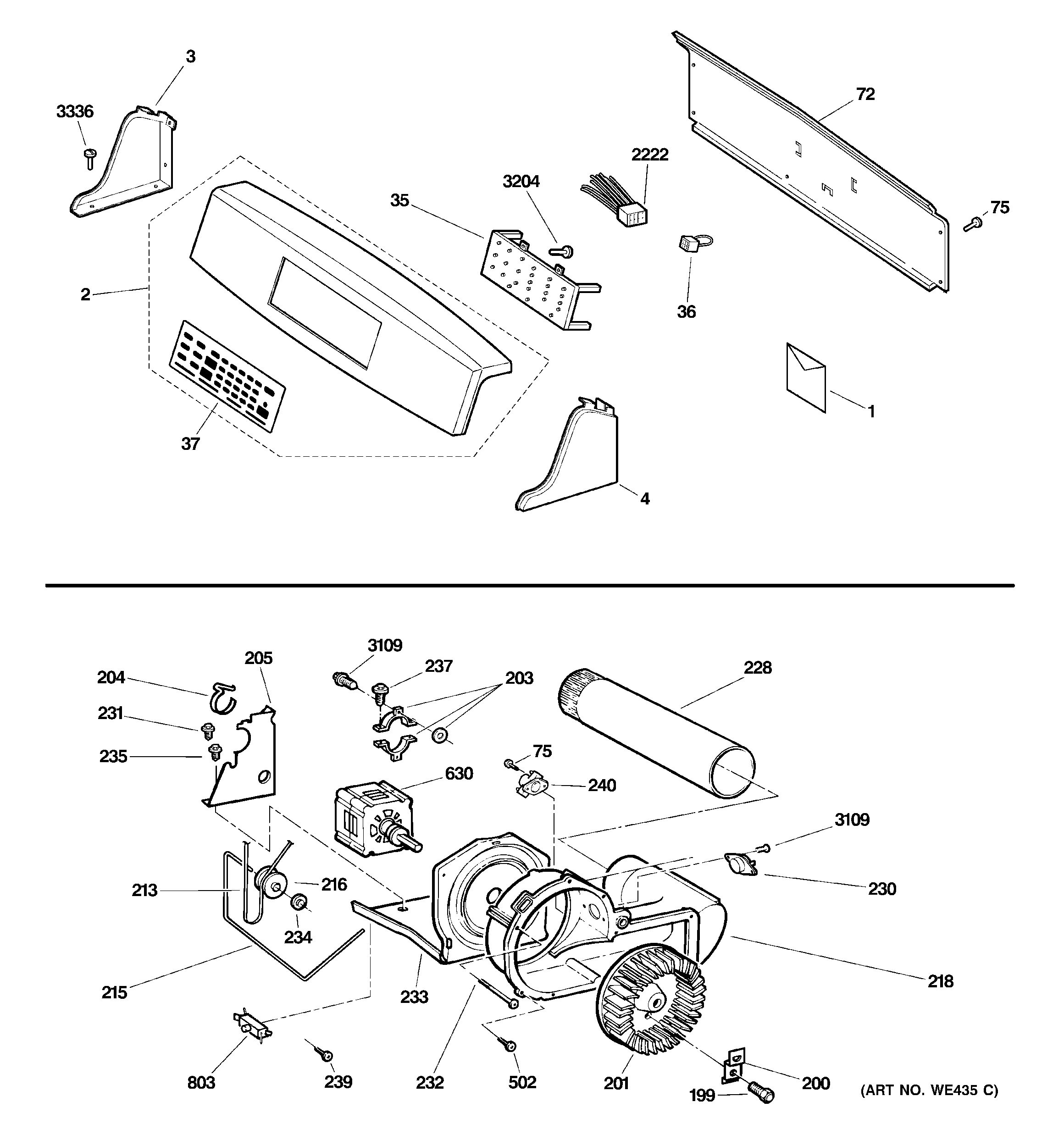

DPSB619ED1CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DPSB619ED1CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DPSB619ED1CC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-15475
1GEN 31-16103
1GEN 49-90160
2GEN WE19M1365
3DRYER END CAP LH BQ
4DRYER END CAP RH BQ
35WE4M296 GE Washer Control Module Board
36GEN WD21X10067
37GEN WE19M1369
72GEN WE19M1310
75WZ4X241D GE Screw Package
75WE2M173 GE Screw
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218GEN WE14M89
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WD2M174
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WE2M200 GE Ground Screw
239WR2X9260 GE Refrigerator Screw
240GEN WE4M299
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
2222HARNESS SENSORS
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3109WE2M176 GE Washer Insulated
3336WE2M189 GE Screw
