DPSB650EC0WW BACKSPLASH, BLOWER & MOTOR

DPSB650EC0WW BACKSPLASH, BLOWER & MOTOR

Written by

in

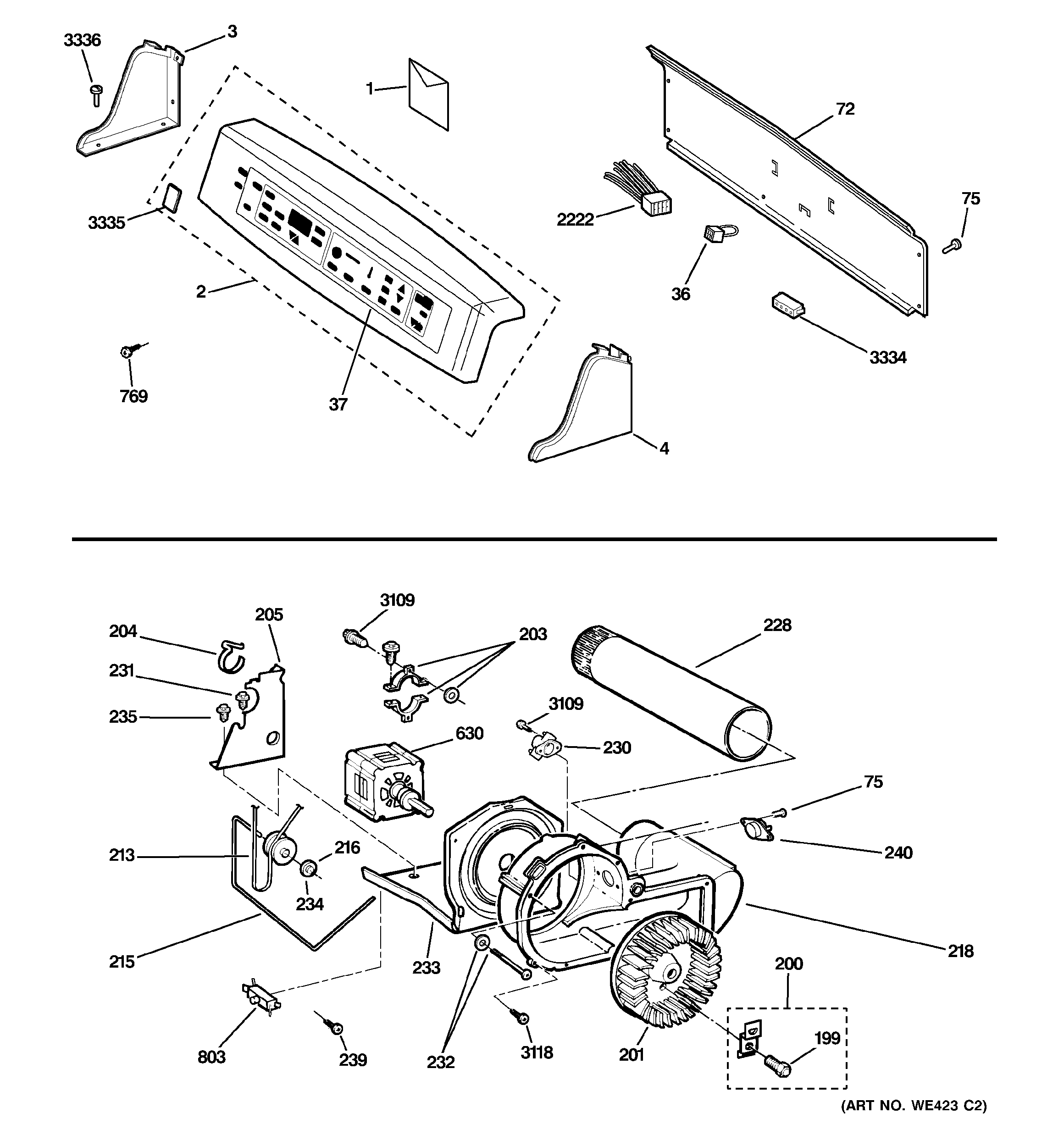

DPSB650EC0WW BACKSPLASH, BLOWER & MOTOR

Products

PositionProduct
1GEN 49-90143
1GEN 31-16066
1GEN 31-15475
2ENCLOSURE ASM
3GEN WE19M1312
4GEN WE19M1311
36CONNECTOR MODEL SELECT
37GEN WE19X10070
72GEN WE19M1310
75WE2M173 GE Screw
75WZ4X241D GE Screw Package
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218GEN WE14M89
228WE14X20421 GE Exhaust Duct
230WE4M300 GE Backup Thermostat Outlet Black
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
233GEN WD2M174
234GEN WE2M96?
235WE1M280 GE Screw
239WR2X9260 GE Refrigerator Screw
240GEN WE4M299
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
769WB1X500D GE Oven Screw Package
803WD21X10261 GE Dishwasher Interlock Switch
2222GEN WE5M15
3109WE2M176 GE Washer Insulated
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3118WE2M174 GE Screw #10
3334GEN WE2M194
3335GEN WE19M1319
3336WE2M189 GE Screw
