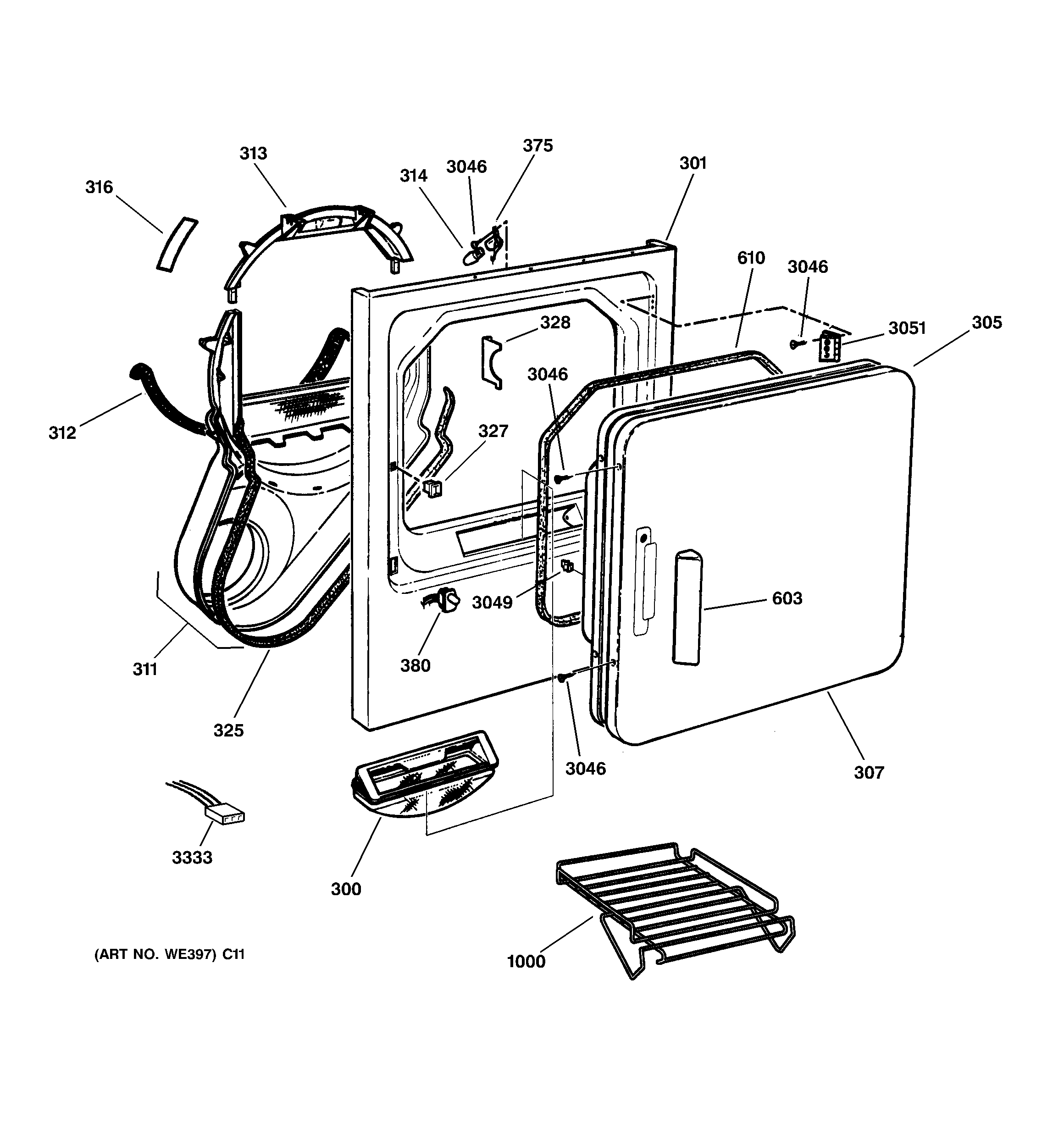

DPSE592EA1AA FRONT PANEL & DOOR

DPSE592EA1AA FRONT PANEL & DOOR

Written by

in

DPSE592EA1AA FRONT PANEL & DOOR

Products

PositionProduct
300WE18X25100 GE Dryer Lint Screen Filter
301WE01X29060 GE Heat Shield
305WE49X22295 GE Front Panel Assembly
307PANEL DOOR OUTER WH
311WE14X25080 GE Dryer Lint Filter Trap Assembly
312FELT TRAP DUCT
313WE3M26 GE Washer Dryer Front Drum Bearing
314WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
316GEN WE01M0333
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
327WE1M1011 GE Washer Dryer Door Latch
328GEN WE1M449
375GEN WE05M0005
380WE4M415 GE Washer Door Switch
603WE01X20419 GE Washer Dryer White Door Handle
610WE9M13 GE Door Gasket
1000GEN WE01M0396
3046WE2M196 GE Screw #8
3049WE1X1192 GE Dryer Door Strike
3051WE1M1033 GE Hinge
3333HARNESS SENSORS
