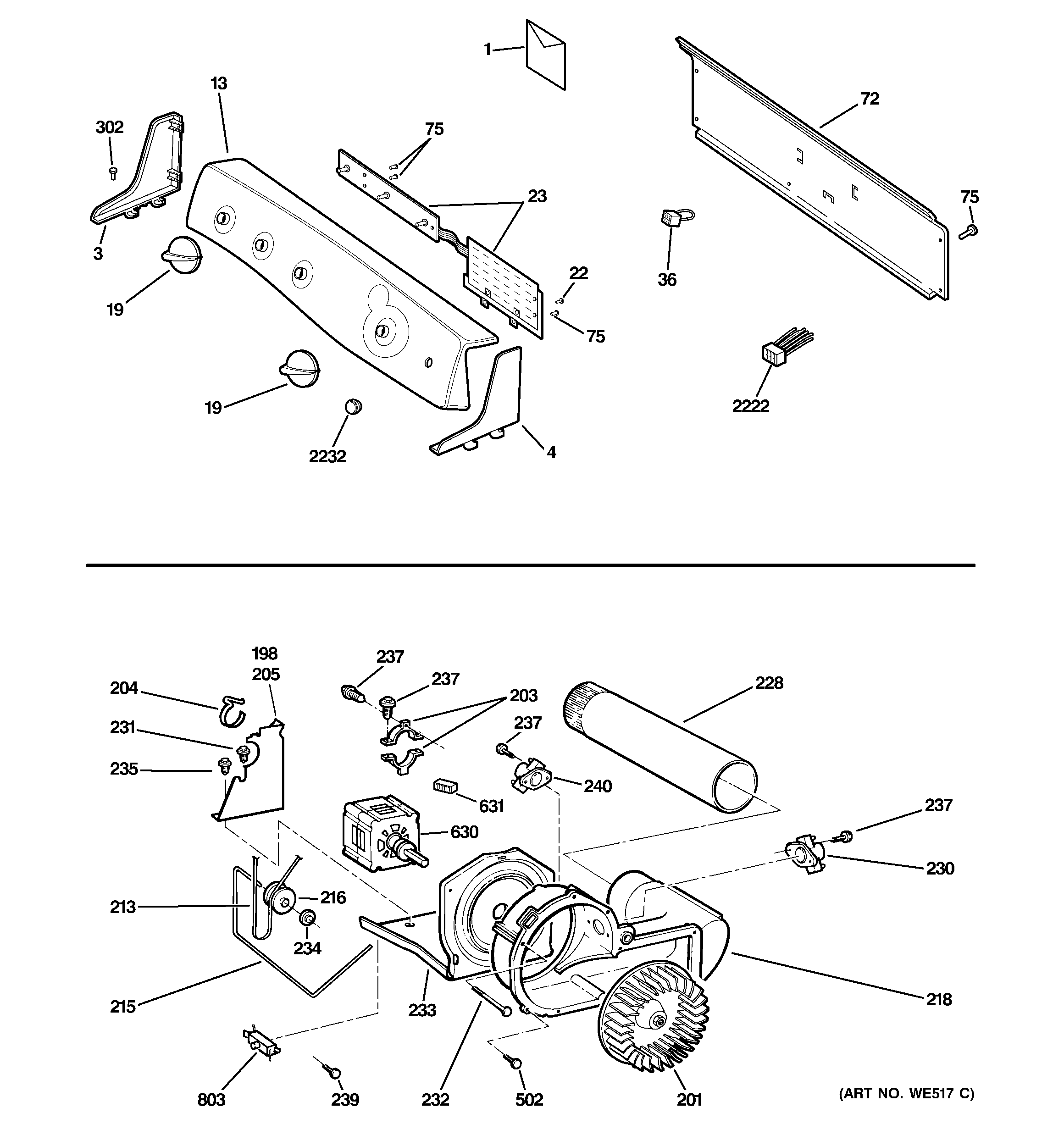

DPSE810EG4WT BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DPSE810EG4WT BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DPSE810EG4WT BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16175
1GEN 31-16135
1GEN 49-90290
3GEN WE19M1461
4WE19M1460 GE Dryer Right Hand Endcap, White
13GEN WE19M1506
19GEN WH01X10305
22GEN WH02X10236
23WE04M10004 GE Control Board
36CONNECTOR MODEL SELECT
72GEN WE19M1310
75WE2M173 GE Screw
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
203WE2M176 GE Washer Insulated
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M300 GE Backup Thermostat Outlet Black
232WE2M202 GE Screw
233GEN WD2M174
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE04X20685 GE Washer Thermistor
302WE2M189 GE Screw
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2222GEN WE5M35
2232WH01X10088 GE Start/stop Switch Button
