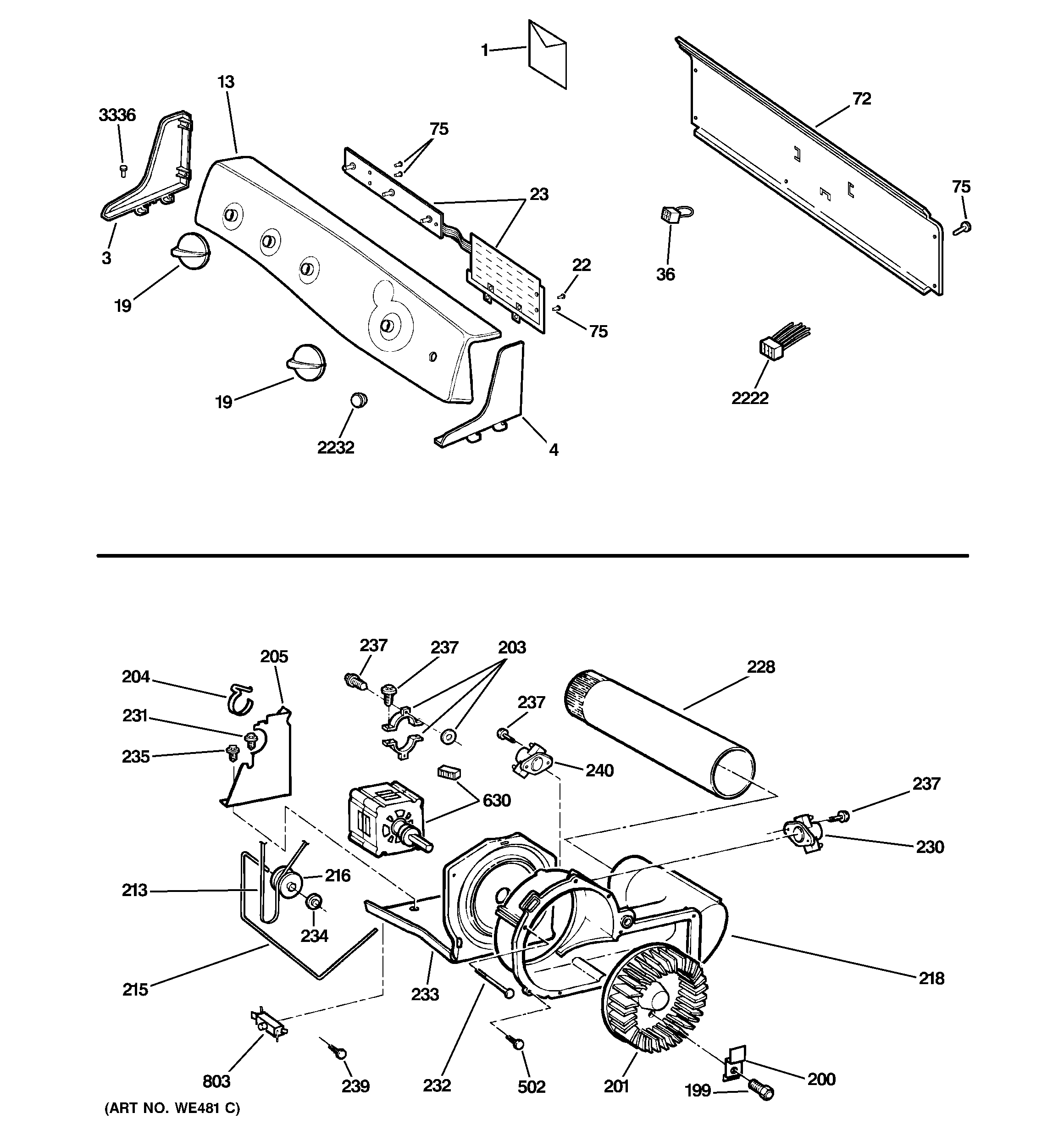

DPSE810GG0WT BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DPSE810GG0WT BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DPSE810GG0WT BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16139
1GEN 49-90290
1GEN 31-16131
3GEN WE19M1461
4WE19M1460 GE Dryer Right Hand Endcap, White
13GEN WE19M1506
19GEN WH01X10305
22GEN WH02X10236
23WE04M10004 GE Control Board
36WD21X10024 GE Dryer Model Selector Connector
72GEN WE19M1310
75WE2M173 GE Screw
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE2M176 GE Washer Insulated
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M300 GE Backup Thermostat Outlet Black
232WE2M202 GE Screw
233GEN WD2M174
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE04X20685 GE Washer Thermistor
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
630GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2222GEN WE5M37
2232WH01X10088 GE Start/stop Switch Button
3336WE2M189 GE Screw
