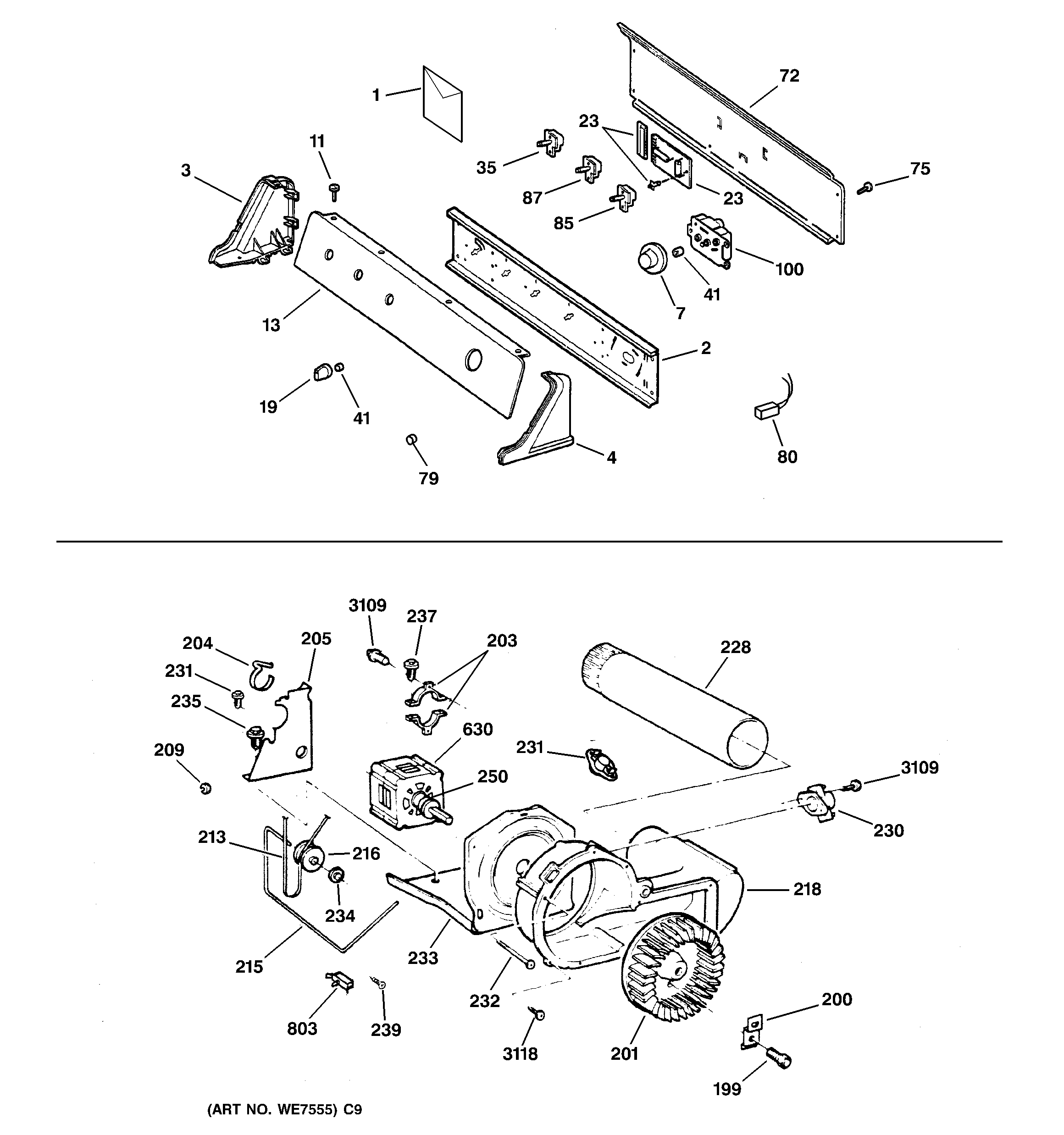

DPSR513EA2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

Position	Product
1	GEN 31-16046
1	GEN 31-16023
1	GEN 49-90043
2	GEN WE19M1166
3	GEN WE19M940
4	END CAP RH WH
7	WE1M654 GE Washer White Timer Knob
11	GEN WH02X1206
13	GEN WE19M1152
19	WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
23	GEN WE4M272
23	GEN WE01M0419
23	WE1M418 GE PC Support
35	WE4X881 GE Dryer Rotary Start Switch
41	GEN WE01X0980?
72	GEN WE20X0811
75	GEN WE02M0180
75	WE2M173 GE Screw
79	GEN WE5M6
80	GEN WE5M7
85	WE4M399 GE Rocker Switch
87	GEN WE4M270
100	GEN WE4M260
199	GEN WE02X0280
200	WE1X688 GE Dryer Clamp and Screw
201	WE16M15 GE Washer Dryer Blower Wheel
203	WE13X200 GE Motor Strap
204	WE1X921 GE Motor Strap
205	WE13M39 GE Motor Support
209	GEN WE02M0165
213	WE03X29897 BELT DRIVE
215	WE03X20434 GE Washer Idler Arm
216	WE12X81 GE Dryer Idler Pulley
218	GEN WE14M89
228	WE14X20421 GE Exhaust Duct
230	GEN WE04M216
231	GEN WE4M206
232	WE2M202 GE Screw
233	MOTOR PLATE (E-COAT)
234	GEN WE02M0096
235	WE1M280 GE Screw
237	WE2M200 GE Ground Screw
239	GEN WE02M0167
250	GEN WE12X0041
630	WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803	WD21X10261 GE Dishwasher Interlock Switch
3109	WD02X10057 GE Dishwasher Screw 10-16 x 1
3118	GEN WH02M0342
