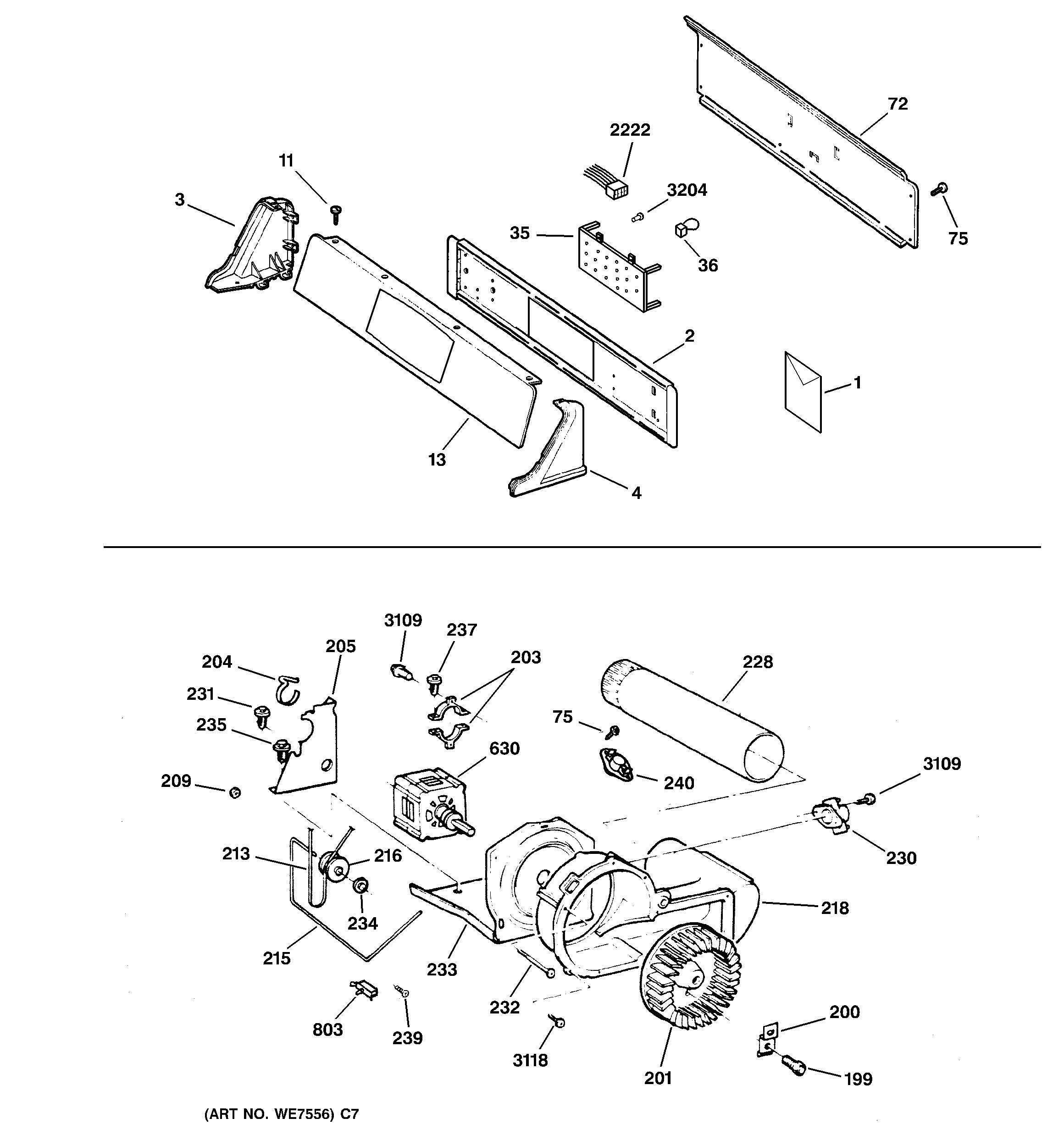

DPXB515EB0CC BACKSPLASH, BLOWER & DRIVE ASSEMBLYadmin2025-04-26T08:37:18+00:00DPXB515EB0CC BACKSPLASH, BLOWER & DRIVE ASSEMBLY ProductsPositionProduct1GEN 49-900941GEN 31-154751MINI-MANUAL2GEN WH46X100553END CAP LH BISQUE11SCREW 8-18 AB FLT 9/16 S13END CAP RH BISQUE35WE4M296 GE Washer Control Module Board36GEN WD21X1003572GEN WE20X081175WE2M173 GE Screw199GEN WE02X0280200WE1X688 GE Dryer Clamp and Screw201WE16M15 GE Washer Dryer Blower Wheel203WE13X200 GE Motor Strap204WE1X921 GE Motor Strap205WE13M39 GE Motor Support209GEN WE02M0165213WE03X29897 BELT DRIVE215WE03X20434 GE Washer Idler Arm216WE12X81 GE Dryer Idler Pulley218BLOWER HOUSING228WE14X20421 GE Exhaust Duct230GEN WE04M216232WE2M202 GE Screw233MOTOR PLATE (E-COAT)234GEN WE02M0096235WE1M280 GE Screw237WE2M200 GE Ground Screw239GEN WE02M0167240GEN WE4M275630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly803WD21X10261 GE Dishwasher Interlock Switch2222HARNESS SENSORS3109WD02X10057 GE Dishwasher Screw 10-16 x 13109WE2M176 GE Washer Insulated3118GEN WH02M03423204WZ4X241D GE Screw Package
