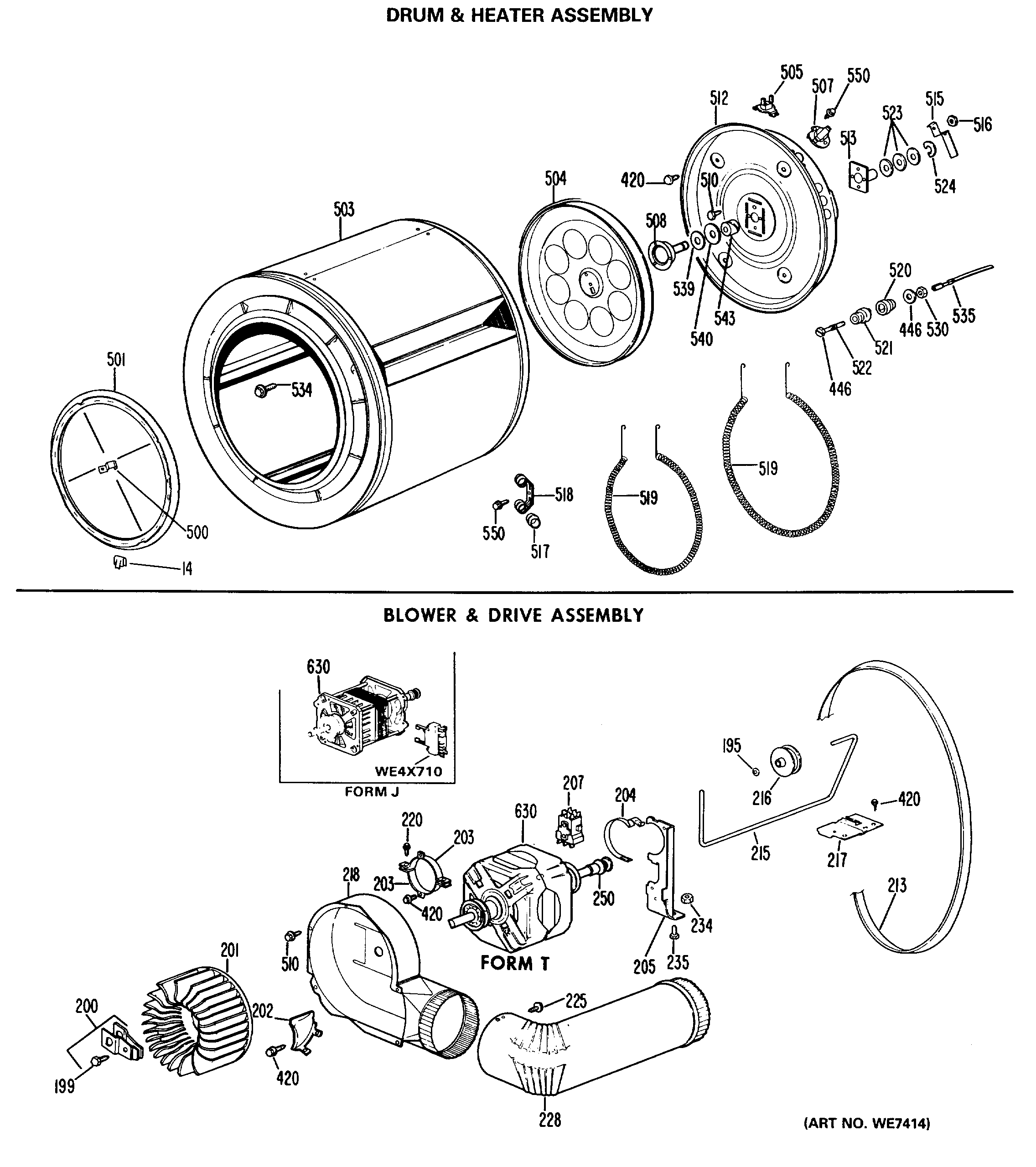

DRB1255KBL DRUM & HEATER ASSEMBLY

DRB1255KBL DRUM & HEATER ASSEMBLY

Written by

in

DRB1255KBL DRUM & HEATER ASSEMBLY

Products

PositionProduct
14GEN WE01X0762
195GEN WH02X0885
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WHEEL BLOWER
202GEN WE01X0689
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
207SWITCH START (FORM T)
213WE12X10014 GE Washer Drive Belt
215GEN WE03X0069
216WE12X83 GE Dryer Idler Pulley
217GEN WE13X0159
218HOUSING WELD ASM BLOWER
220GEN WE02X0275
228ELBOW EXHAUST
250GEN WE12X0041
420GEN WH02X0893
446GEN WE02X0279
500GEN WE01X0299
501GEN WE09X0030
503GEN WE21X0049
504GEN WE14X0086
505WE4X800 GE Dryer Thermal Fuse Thermostat
507WE4X584 GE Dryer High Limit Thermostat
510WE2X263D GE Screw Package 12 C92
513WE1X461 GE Bearing Retainer
515WE1X1172 GE Strap Assembly
516WR01X10212 GE Refrigerator 8-32 Nut
517GEN WE01X0336
518CLIP HEATER COIL
519COIL ASM HEATER
520INSULATOR OUTER
521INSULATOR INNER
522STUD HEATER
523WASHER FLAT
524RING RETAINING
534GEN WE02X0153
535TERMINAL (HEATER COIL)
539WE25M40 GE Dryer Rear Bearing Kit
540WASHER FLAT
543WE3X75 GE Dryer Rear Drum Bearing
550GEN WE02X0281
613GEN WE01X0344
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
