DRL1555RBL CABINET ASSEMBLY – Aparts

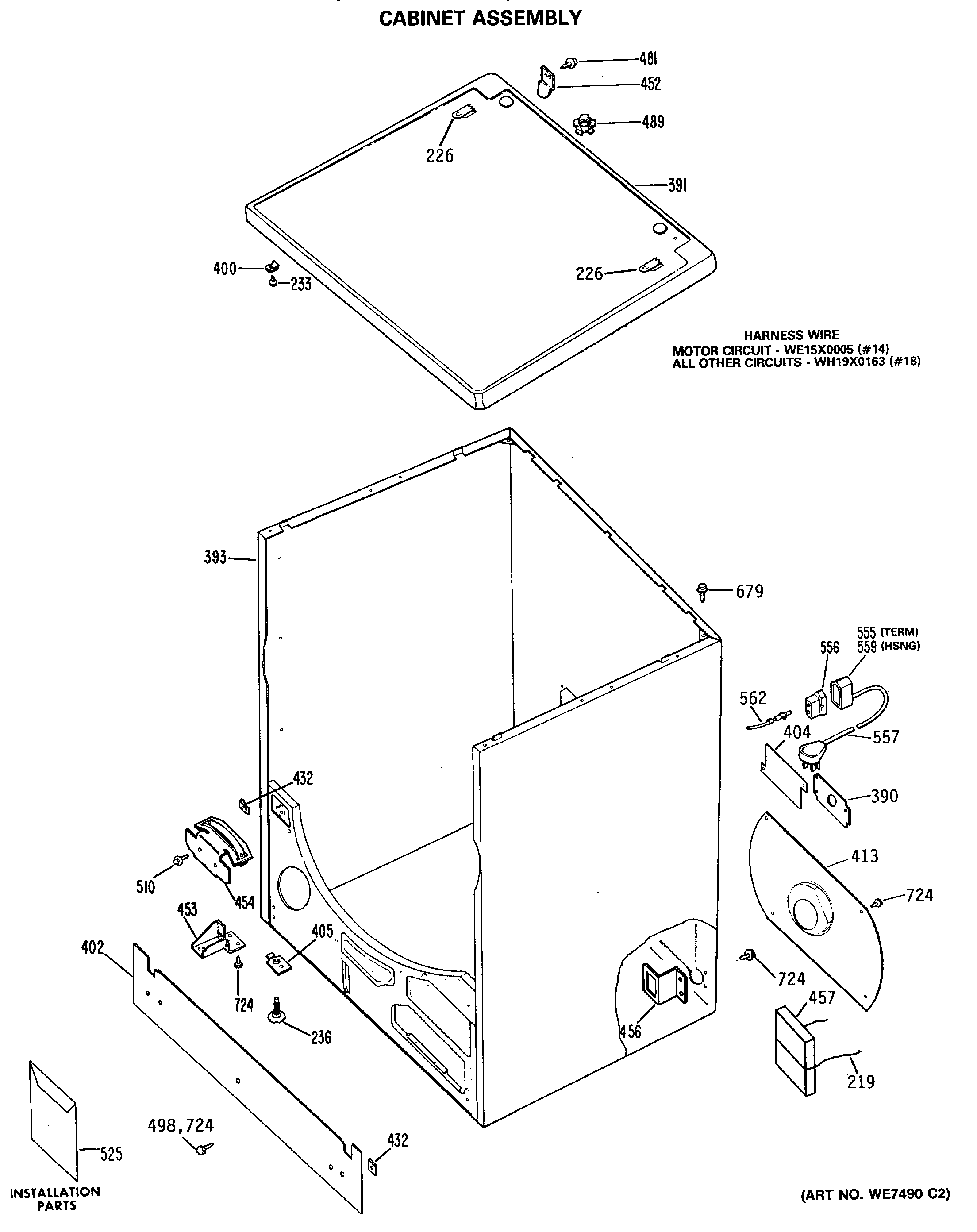

DRL1555RBL CABINET ASSEMBLY

Products

Position	Product
219	GEN WH16X0370
226	GEN WH02X1154
233	GEN WZ04X0236
236	WE1M642 GE Washer Leveling Leg
390	GEN WE01X1175
391	GEN WE20X0761
391	GEN WE20X0759
391	GEN WE20X0760
393	CABINET ASM AD
393	CABINET ASM HA
393	CABINET ASM WH
400	GEN WE02X0134
402	GEN WE20X0347
404	GEN WE01X0425
405	GEN WE01X0468
413	GEN WE14X0212
432	GEN WL02X0071
452	GEN WE01X1094
453	GEN WE13X0080
454	GEN WE25X0060
456	WE1X617 GE Pipe Clamp
457	GEN WE01X1173
481	GEN WH02X0967
489	GEN WH01X2572
510	WE2X263D GE Screw Package 12 C92
525	GEN WE25X0098
555	GEN WB17X5053
556	GEN WH12X0497
557	GEN WE08X0031
559	GEN WH12X0538
562	GEN WB17X5054
679	GEN WZ05X0155
724	SCREW 10-16 X 1/2" HEX
