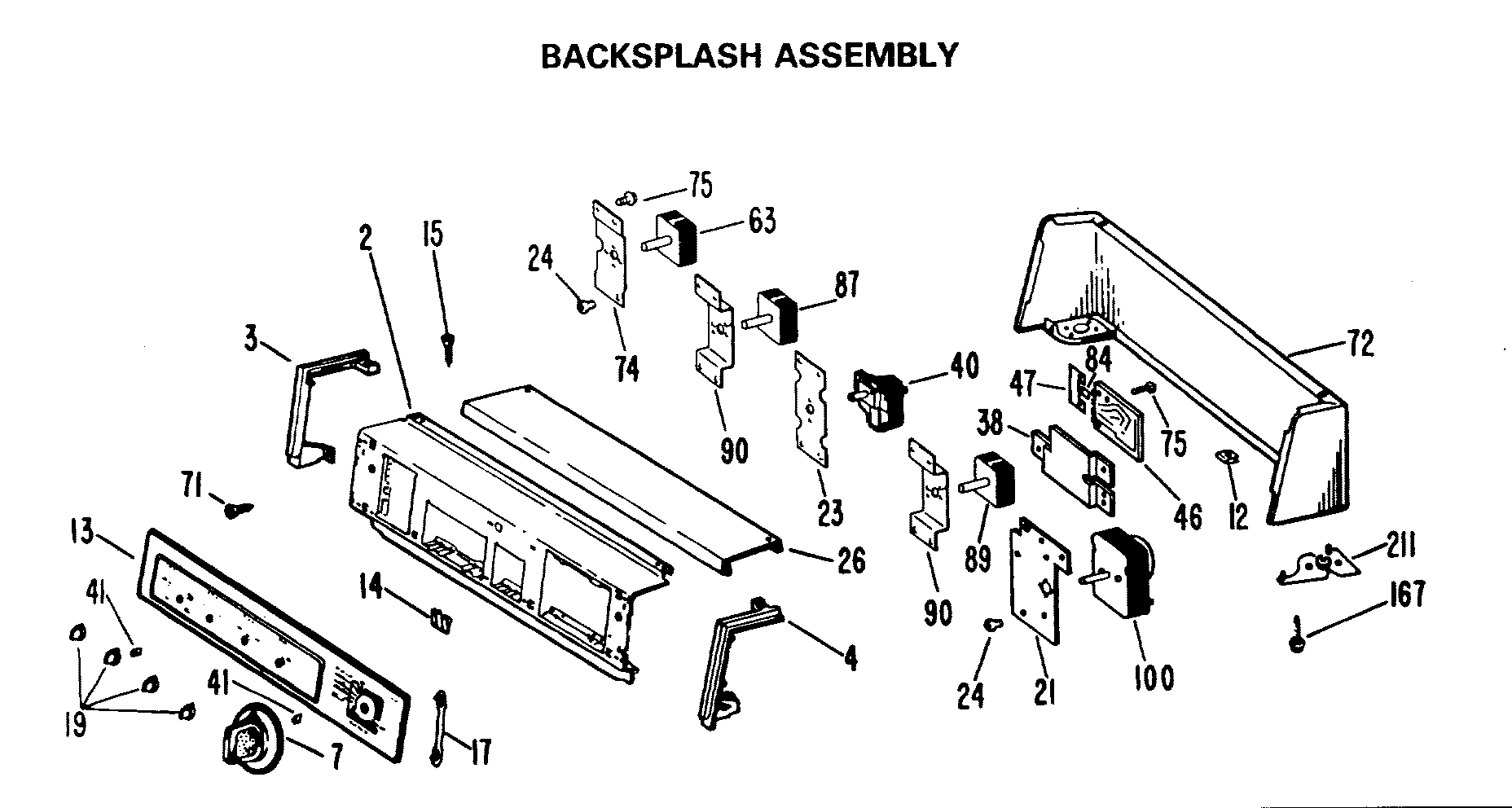

DRL2885MBL BACKSPLASH ASSEMBLY

DRL2885MBL BACKSPLASH ASSEMBLY

Written by

in

DRL2885MBL BACKSPLASH ASSEMBLY

Products

Position	Product
2	GEN WE19X0719
3	GEN WH42X2199
4	GEN WH42X2200
7	GEN WE01X1132
12	SPEEDNUT
13	GEN WE19X0882
14	GEN WE01X0762
15	GEN WE02X0367
17	GEN WH01X2008
19	KNOB & CLIP ASM
21	GEN WE13X0076
23	BRACKET-SWITCH
26	GEN WH42X2201
38	GEN WE13X0156
40	GEN WE01X0916
41	GEN WE01X0980?
46	GEN WZ04X0238
46	GEN WE04X0425
47	GEN WE01X0706
63	GEN WE04X0724
71	GEN WH02X0947
72	GEN WH46X0211
72	GEN WH46X0212
72	GEN WH46X0215
74	GEN WE13X0137
75	WH2X930 GE Screw
84	GEN WE01X0704
87	SWITCH ASM-ROTARY 2 POS
89	GEN WE04X0679
90	GEN WH16X0434
100	GEN WE04X0766
167	GEN WE02X0186
211	GEN WE01X0553
250	GEN WE12X0041
461	WZ5X158D GE Screw Package of 12
9999	GEN 31-1822
9999	GEN 79-9024
9999	GEN 31-2389
