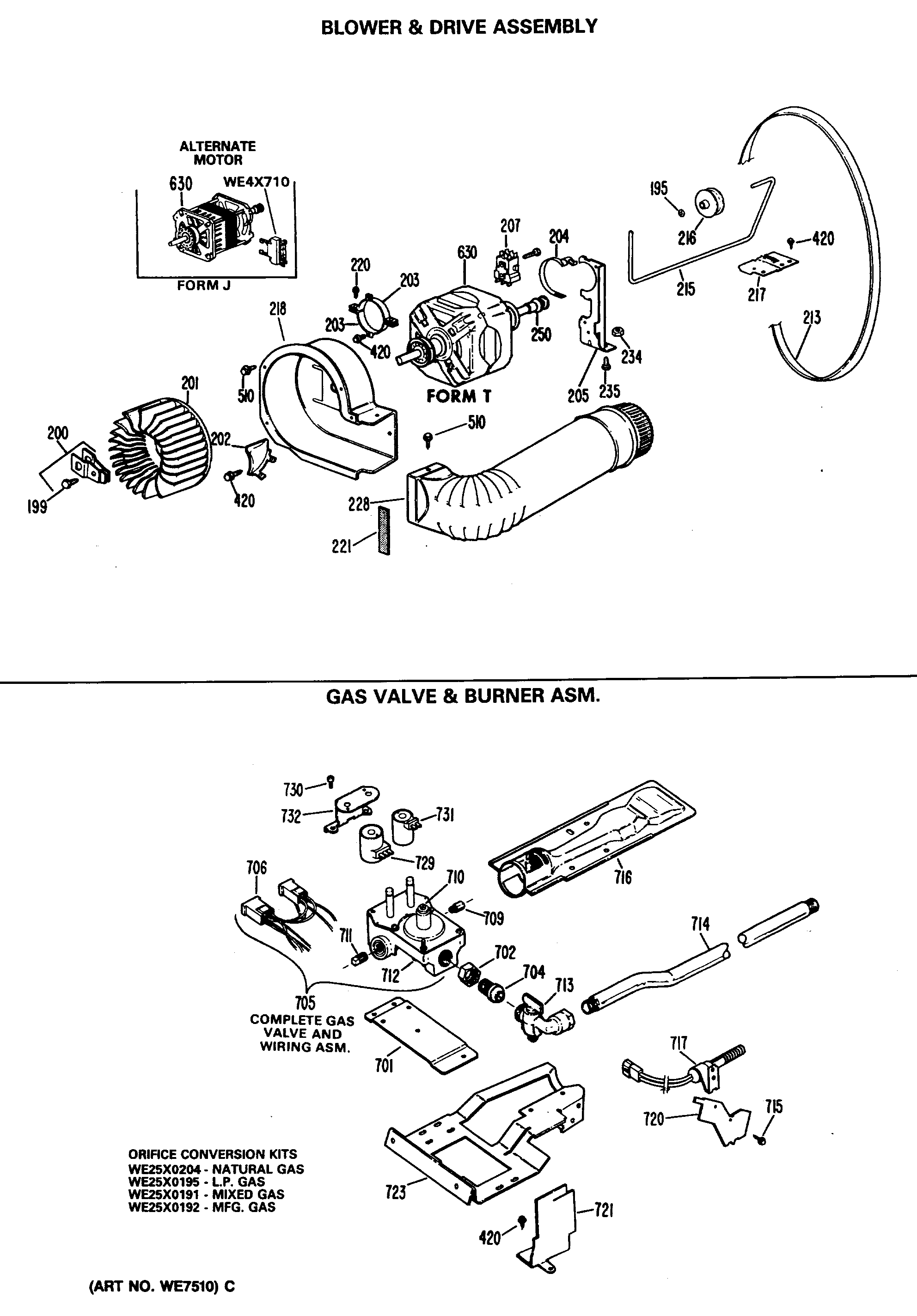

DRL2885MBL BLOWER & DRIVE ASSEMBLY

DRL2885MBL BLOWER & DRIVE ASSEMBLY

Written by

in

DRL2885MBL BLOWER & DRIVE ASSEMBLY

Products

PositionProduct
195GEN WH02X0885
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
202GEN WE01X0689
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205GEN WE13X0161
207SWITCH START (FORM T)
213WE12X10014 GE Washer Drive Belt
215GEN WE03X0069
216WE12X83 GE Dryer Idler Pulley
217GEN WE13X0159
218GEN WE14X0134
221GEN WE01X1171
228ELBOW-EXHAUST
234GEN WE02X0154
235GEN WE02X0194
420GEN WH02X0893
510WE2X263D GE Screw Package 12 C92
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
701GEN WE13X0166
702GEN WE02X0319
704GEN WE02X0320
705WE14X215 GE Gas Valve
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
711GEN 1/8-27 NPT
713GEN WE01X1078
714PIPE LUG ASM
715GEN WD02X5063
716WE14M104 GE Burner Assembly
717WE04X25996 GE Washer Igniter
720GEN WE13X0183
721GEN WE13X0118
723BRACKET VALVE
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
