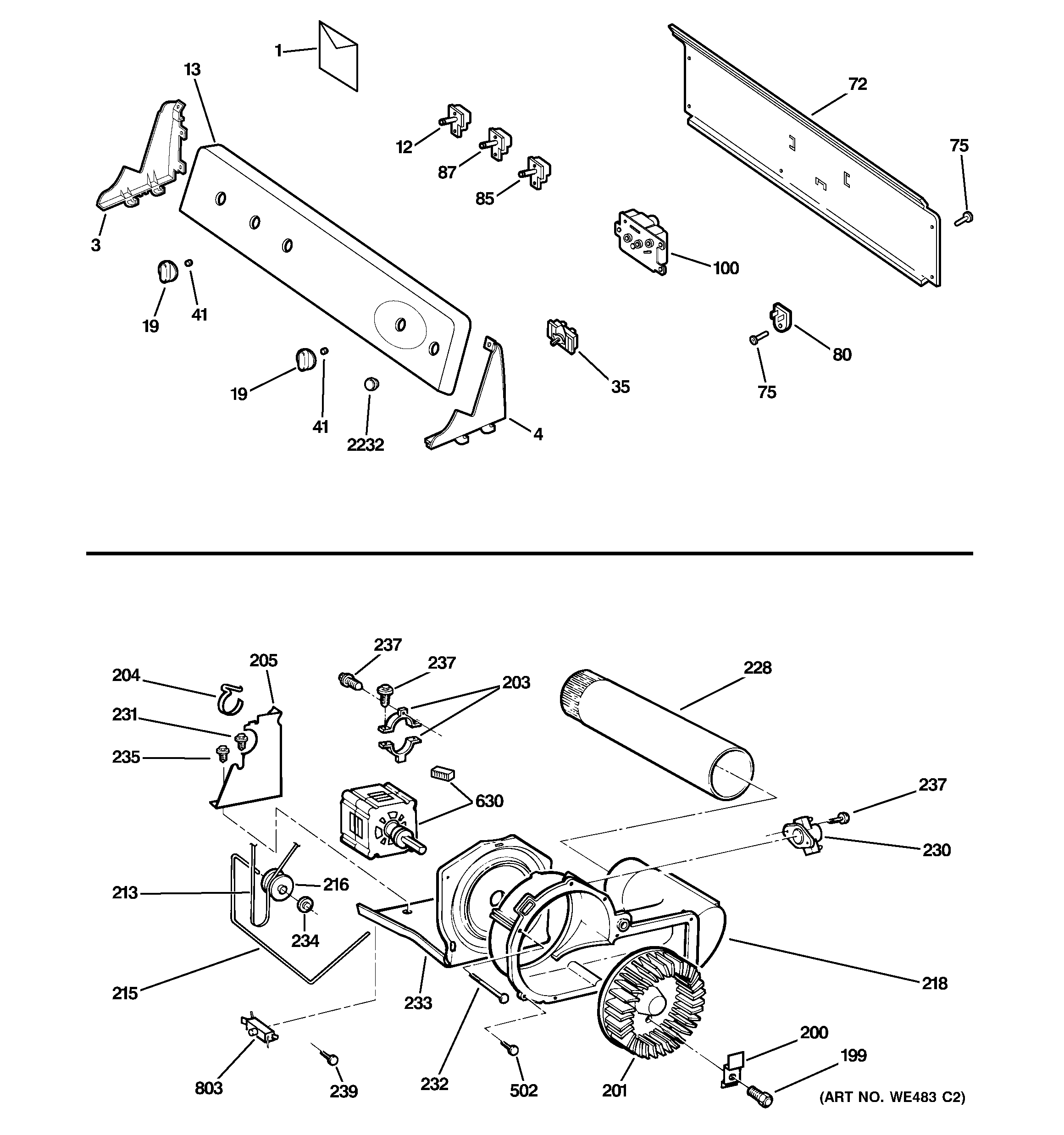

DRSR483EG0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DRSR483EG0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DRSR483EG0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1USE & CARE MANUAL
1INSTALL INSTRUCTION
1MINI MANUAL
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
12GEN WE4M368
13GEN WE19M1483
19WH01X10462 GE Washer Dryer Gray Knob and Clip Assembly
35PUSH TO START SWITCH
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
85WE4M399 GE Rocker Switch
87WE4M411 GE Appliance Rotary Switch Zodiac 4 Temp
100GEN WE4M377
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
630GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
