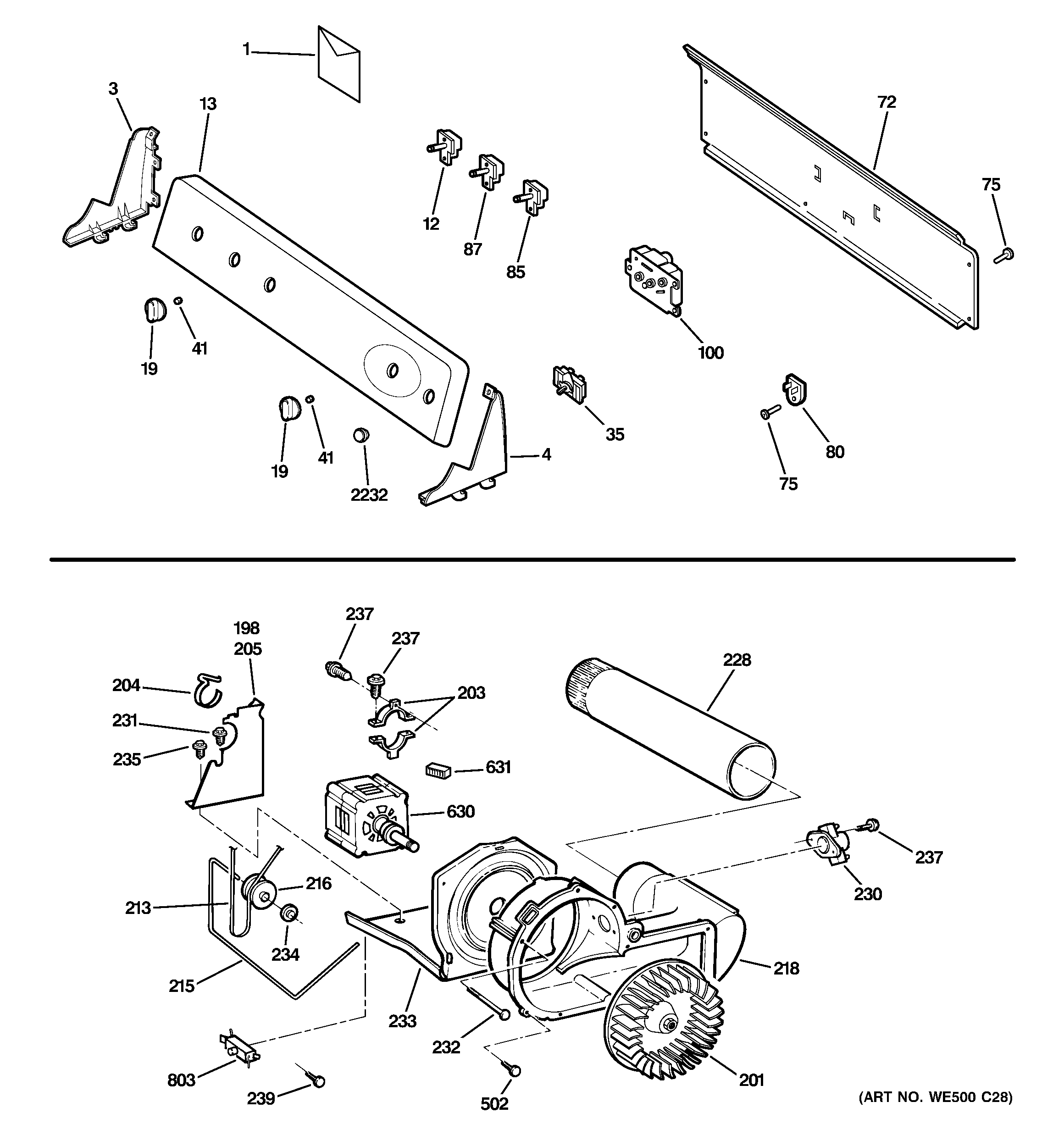

DRSR483EG3CC BACKSPLASH, BLOWER & MOTOR

DRSR483EG3CC BACKSPLASH, BLOWER & MOTOR

Written by

in

DRSR483EG3CC BACKSPLASH, BLOWER & MOTOR

Products

PositionProduct
1INSTALL INSTRUCTION
1MINI MANUAL
1USE & CARE
3GEN WE19M1476
4GEN WE19M1475
12GEN WE4M368
13BACKSPLASH ASM CC
19GEN WH01X10318
35PUSH TO START SWITCH
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
85WE4M399 GE Rocker Switch
87WE4M411 GE Appliance Rotary Switch Zodiac 4 Temp
100WE04X20416 GE Washer Dryer Control Timer Assembly with Plastic Shaft
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232GEN WE1M692
