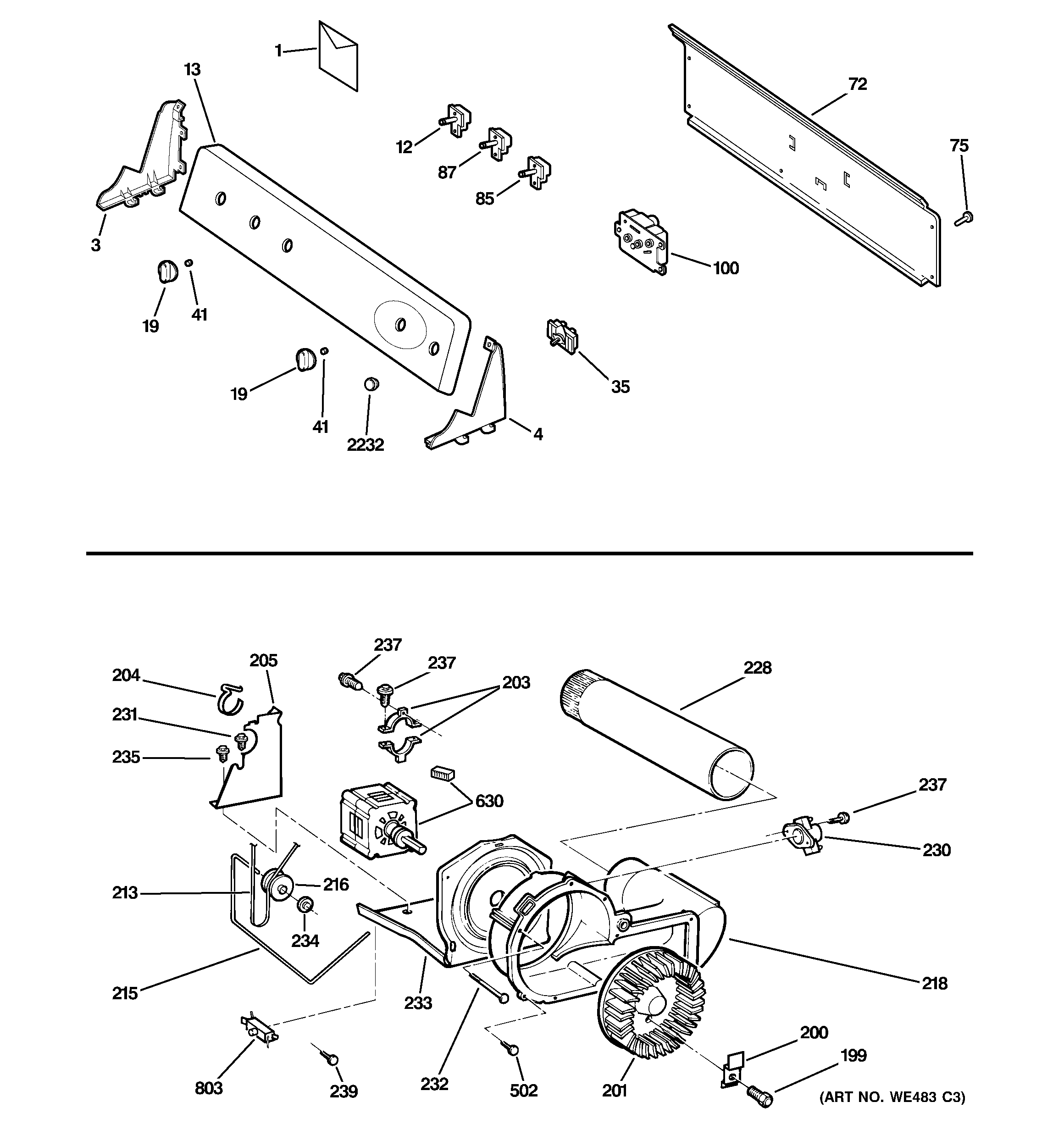

DRSR483GG1WW BACKSPLASH, BLOWER & MOTORadmin2025-04-26T08:37:49+00:00DRSR483GG1WW BACKSPLASH, BLOWER & MOTOR ProductsPositionProduct1MINI-MANUAL1INSTALL INSTRUCTION1USE & CARE MANUAL3WE49X22294 GE Endcap Service Kit4WE19X20467 GE Endcap Left Hand12GEN WE4M36813GEN WE19M148319WH01X10462 GE Washer Dryer Gray Knob and Clip Assembly35PUSH TO START SWITCH41GEN WE01X0980?72WE19M1481 GE Rear Panel75WE2M173 GE Screw85WE4M399 GE Rocker Switch87GEN WE4M269100WE04X20416 GE Washer Dryer Control Timer Assembly with Plastic Shaft199WE2M98 GE Screw200WE1X688 GE Dryer Clamp and Screw201WE16M15 GE Washer Dryer Blower Wheel203WE13X200 GE Motor Strap204WE1X921 GE Motor Strap205WE13M39 GE Motor Support213WE03X29897 BELT DRIVE215WE03X20434 GE Washer Idler Arm216PULLEY218WE09X27636 GE Exhaust Blower Gasket218BLOWER HOUSING228WE14X20421 GE Exhaust Duct230WE4M216 GE Dryer Bias Thermostat232WE2M202 GE Screw233MOTOR PLATE (E-COAT)234GEN WE2M96?235WE1M280 GE Screw237WD02X10057 GE Dishwasher Screw 10-16 x 1239WR2X9260 GE Refrigerator Screw502WE2M174 GE Screw #10630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly630GEN WE1M650803WD21X10261 GE Dishwasher Interlock Switch2232WE1M659 GE Dryer Push-to-Start Button
