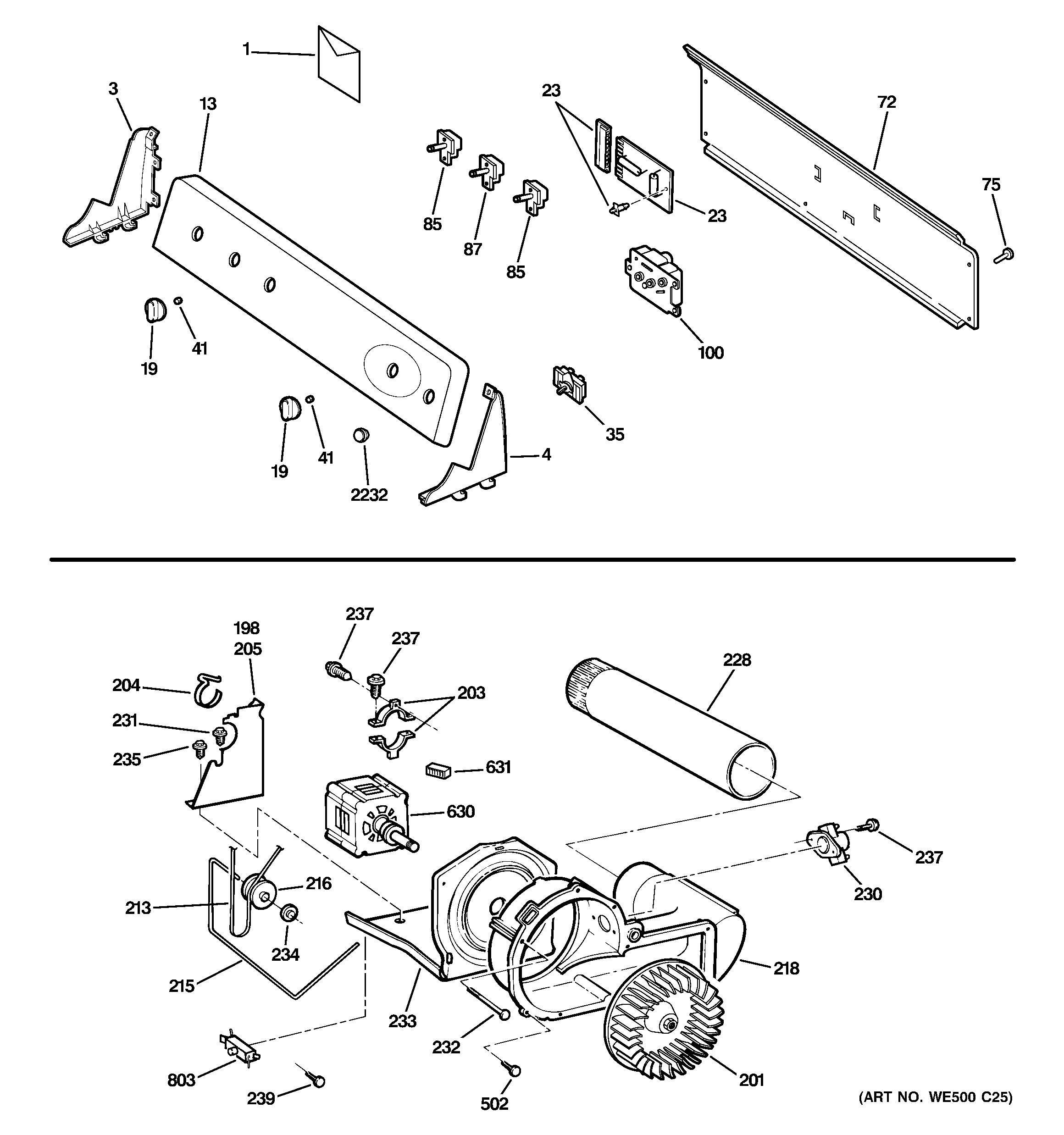

DRSR495GG8WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DRSR495GG8WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DRSR495GG8WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1MINI MANUAL
1USE & CARE ( GE )
1INSTALL INSTRUCTION
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
13BACK. ASM
19WH01X10462 GE Washer Dryer Gray Knob and Clip Assembly
23WE1M418 GE PC Support
23GEN WE1M419
23GEN WE4M272
35PUSH TO START SWITCH
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
85WE4M399 GE Rocker Switch
87ROTARY SWITCH ZODIAC 4TE
100WE4M527 GE Washer Control Timer
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
502GEN WE2M209
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
