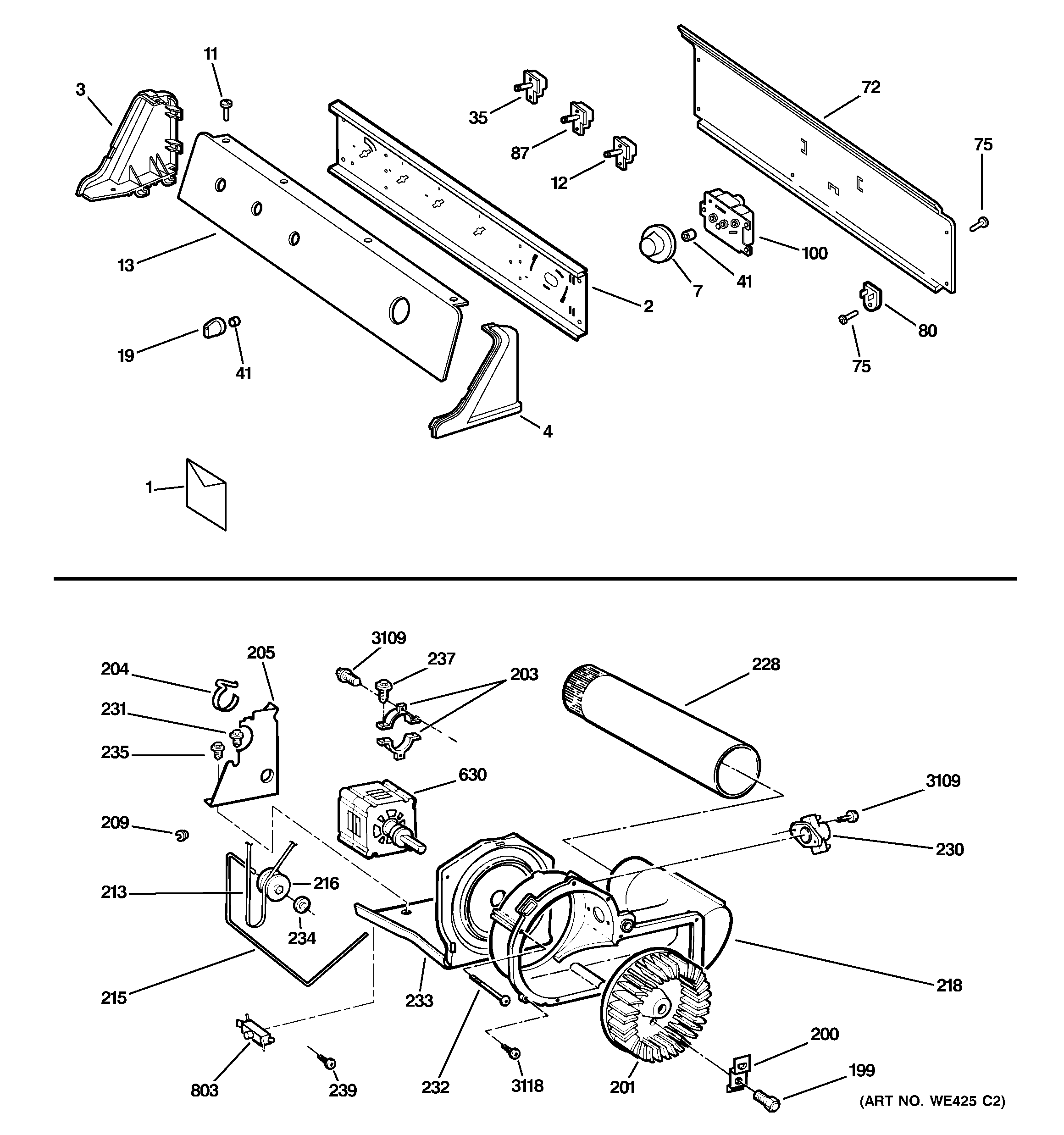

DS4500EB2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DS4500EB2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DS4500EB2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 49-90099
1MINI MANUAL
1GEN 31-15475
2GEN WE19M1286
3GEN WE19M940
4END CAP RH WH
7WE1M654 GE Washer White Timer Knob
11GEN WH02X1206
12GEN WE4M257
13GEN WE19M1274
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
35WE4M519 GE Washer Start Switch Rotary
41GEN WE01X0980?
72GEN WE20X0811
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
87WE4M407 GE Dryer Rotary Temperature Switch 4 Temperature
100WE4M271 GE Timer
199GEN WE2X280D
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
209GEN WE02M0165
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE02M0096
235WE1M280 GE Screw
237WE2M200 GE Ground Screw
239GEN WE02M0167
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3118WE2M174 GE Screw #10
