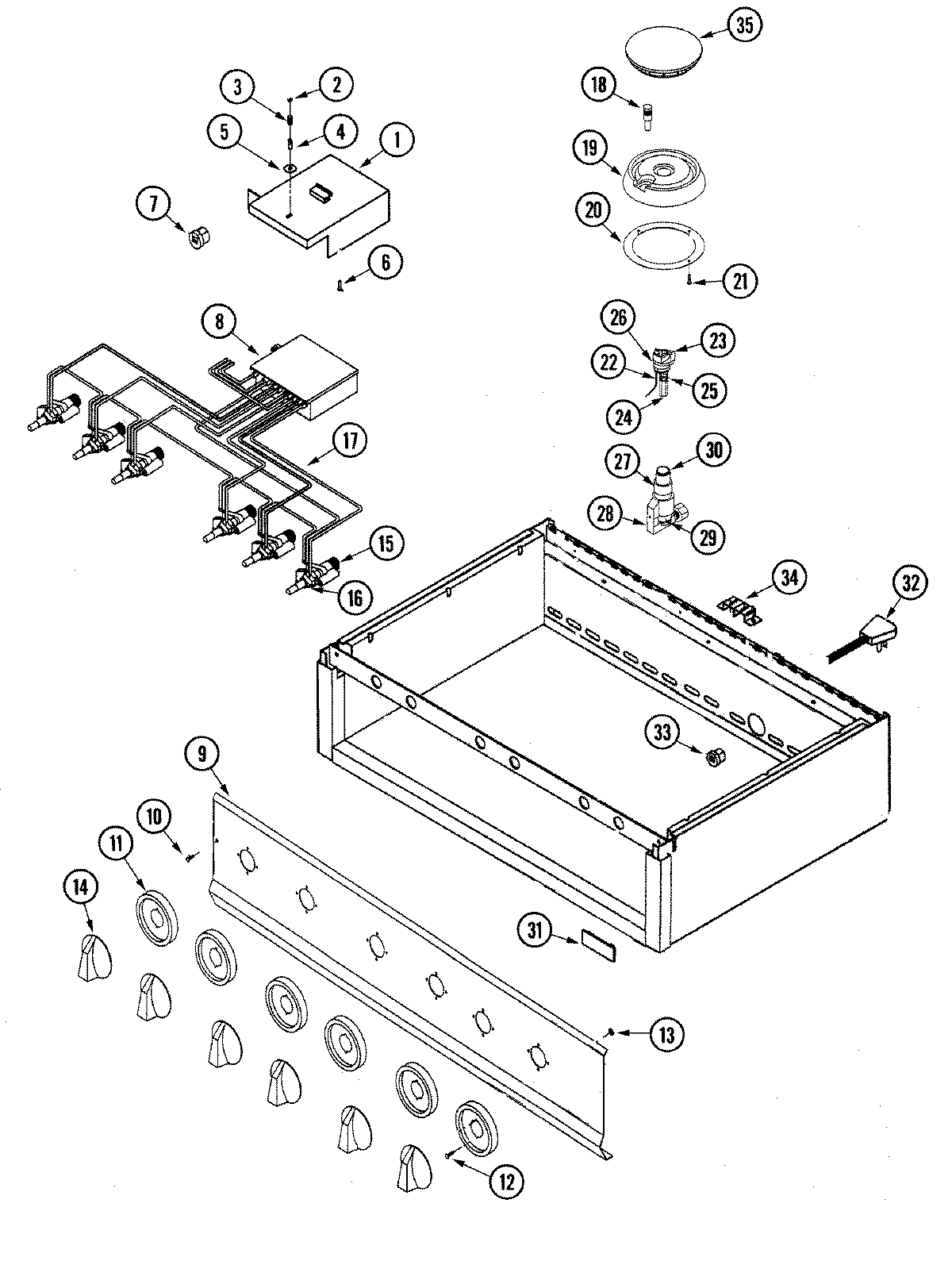

DSCT304 02 – CONTROL PANEL/GAS CONTROL

Products

PositionProduct
1BRACKET, IGNITION MODULE (LWR)
2MAY 70001991
3MAY 70001992
4MAY 70001993
5MAY 70001994
6MAY 70001995
8MODULE, IGNITION
9MAY 70002973
10MAY 70001999
11BEZEL, KNOB (CHROME)
11MAY 70002001
12SCREW, BEZEL
13MAY 70001831
14MAY 70002588
14MAY 70001049
15VALVE (W/.42 LP ORIFICE) 3/8“
15VALVE (W/.70 NAT ORIFICE) 3/8“
16MAY 70001983
17MAY 70002974
18BASE, SIMMER
19BASE, BURNER
20GASKET, SEALED BURNER BASE
22IGNITER/WIRE/TERMINAL(380 MM)
22IGNITER/WIRE/TERMINAL(620MM)
23SCREW, M5 X 8MM-BURNER MOUNT
23MOUNT, SIMMER BURNER
24VENTURY, SIMMER
25ORIFICE, SIMMER (NAT) .0125“
25ORIFICE, SIMMER (LP) .0086“
27VENTURI, SEALED BURNER
28SCREW, BURNER ELBOW
28BURNER, ELBOW
29ORIFICE, BURNER (No.50-NAT)
29ORIFICE, BURNER (No.56-LP)
30RING, RETAINING
31MAY 70002022
32CORD, POWER
33MAY 70001996
34MAY 70002021
34MAY 70002007
35CAP, BURNER
36SIMMERMAX OB ASSY, LP
36SIMMERMAX OB ASSY. NAT.
37MAY 16023218
38MAY 2454510000
39MAY 2454610000
