DSE25JBLKCTS FREEZER DOOR

DSE25JBLKCTS FREEZER DOOR

Written by

in

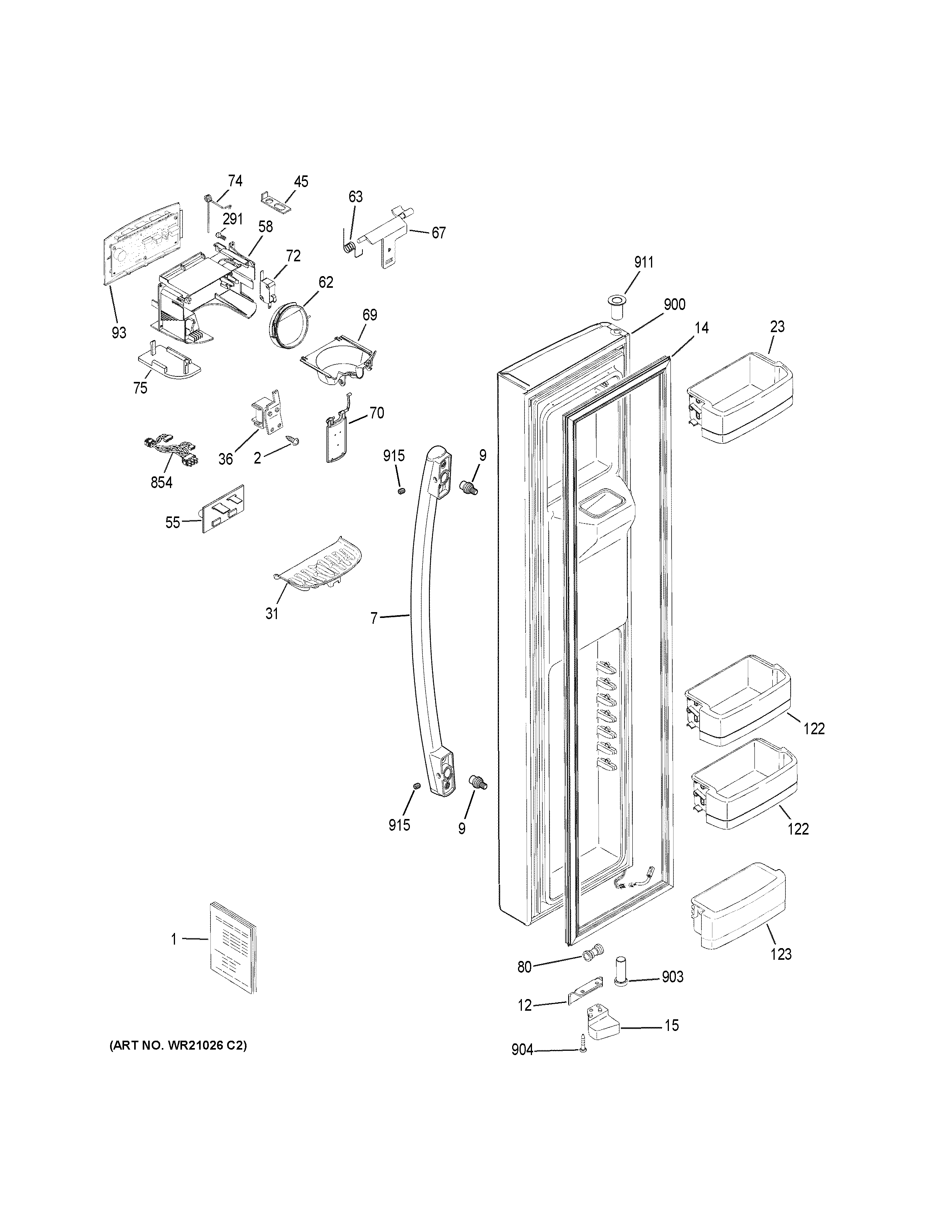

DSE25JBLKCTS FREEZER DOOR

Products

Position	Product
1	PM MINI MANUAL AND WIRING
1	PM QUICK USE & CARE CAFE
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	WR12X29210 GE Refrigerator Black Stainless Door Handle
9	WR01X11007 GE Refrigerator Fastener Door Handle
12	WR02X10782 GE Refrigerator Stop Door
14	WR24X20455 GE Refrigerator Freezer Door Gasket
15	WR02X10779 GE Refrigerator Door Closure Cam
23	WR71X10953 GE Refrigerator Shelf Module
31	WR17X29213 GE Refrigerator Recess Grille Dorian Gray
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X34253 GE Refrigerator Gray Dispenser Housing Shield
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X21781 GE Refrigerator Dispenser Ice Funnel
70	WR17X29214 GE Refrigerator Dorian Gray Dispenser Paddle
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
75	WR02X13405 GE Refrigerator Cover LED Housing Shield
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	WR55X30706 GE Refrigerator Dispenser Interface and Board
122	WR71X10291 GE Refrigerator Shelf Module
123	WR71X10501 GE Refrigerator Fixed Shelf Module
291	WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
854	WR23X10695 GE Refrigerator Harness Recess Dispenser
900	REFRIGERATOR – FREEZER DOOR BLACK STAINL
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
915	WR01X20424 GE Refrigerator Screw
