DSE26JMEBCES FREEZER DOOR

DSE26JMEBCES FREEZER DOOR

Written by

in

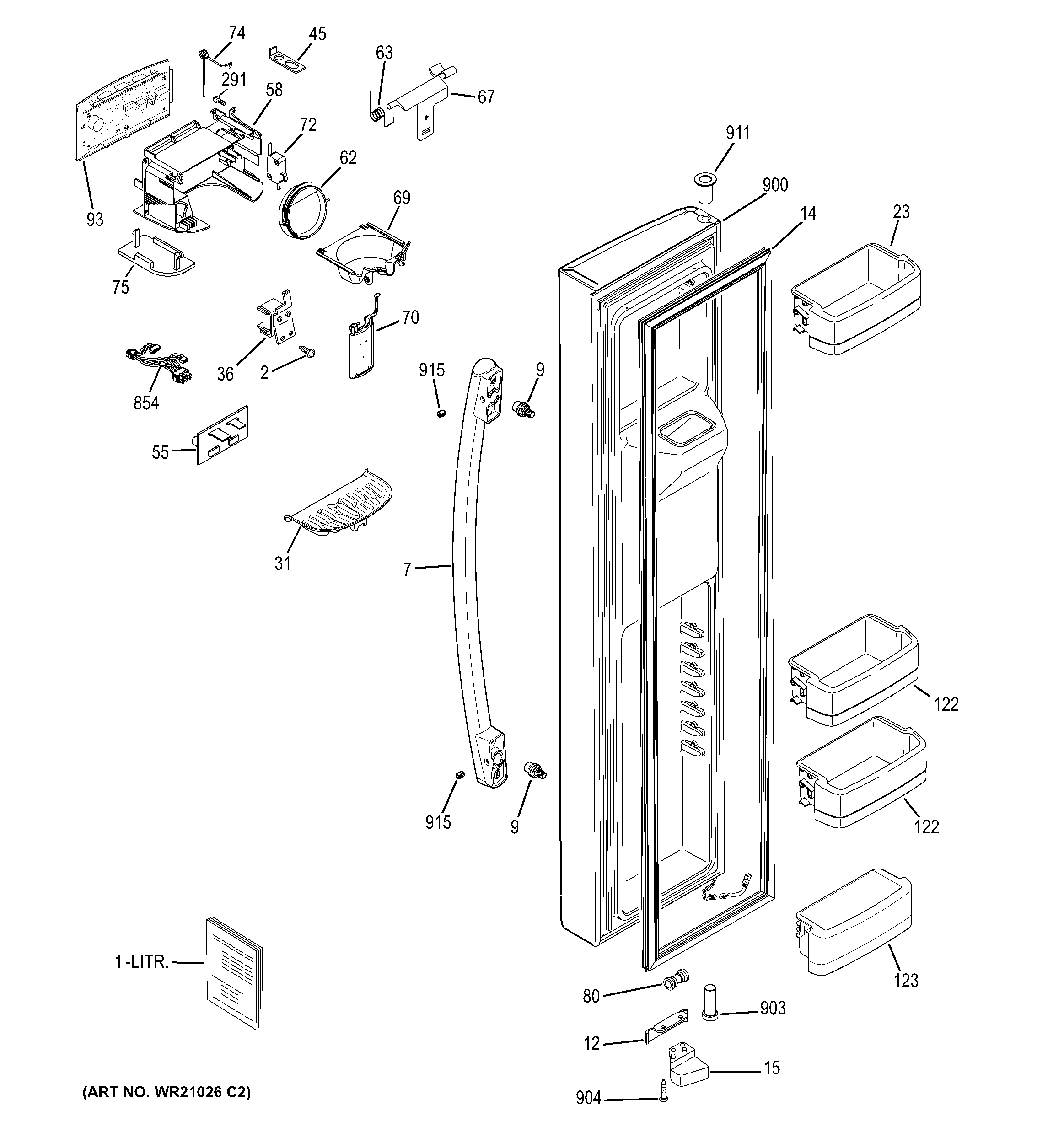

DSE26JMEBCES FREEZER DOOR

Products

Position	Product
1	GEN 200D4665G023
1	GEN 225D6452P008
1	GEN 225D5513G016
1	GEN 225D3754P001
1	GEN 200D9424P015
1	GEN 225D7765G002
1	HARNESS COMM SUB ASM
1	GEN 225D7765G001
1	GEN 225D5319P001
1	GEN 49-60646
1	SPOUT WATER FILL
1	CHUTE ICE
1	GEN 31-51809
1	GEN EFX1316P009
1	GEN 200D4643P019
1	GEN 200D4303G420
1	GEN 200D1968G346
1	GEN 200D1967G196
1	GEN 200D1363G101
1	GEN 200D1344G093
1	GEN 197D5154P017
1	GEN 200D8789P014
1	GEN EUX1137G008
1	SLEEVE VINYL
2	GEN EUS1136P001
2	HOUSING
2	DOOR INNER FF
2	GEN 225D5043P021
2	GEN 200D8932P009
2	GEN 200D1405P012
2	GEN 200D1404P010
2	DOOR INNER FZ
2	GASKET ICE CHUTE
2	THIMBLE DOOR BTM FZ
2	THIMBLE DOOR
2	TUBE PLASTIC FORMED
2	GEN EMX1151P001
2	GEN 239D1709P001
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
2	GEN 238C4975P001
2	GEN 225D7764G001
7	LEAD ASM (REF 8911402)
7	WR12X21070 GE Refrigerator Door Handle
7	GEN 8911200P460
7	GEN 200D8820G016
9	WR01X11007 GE Refrigerator Fastener Door Handle
9	LEAD ASM (REF 8911402)
9	ANCHOR SCREW
12	GROMMET ELECT
12	WR02X10782 GE Refrigerator Stop Door
12	GEN 203C2552P025
14	WR24X20455 GE Refrigerator Freezer Door Gasket
15	WR02X10780 GE Refrigerator Cam Closure
15	HARNESS COMM FZ DOOR
23	WR71X10953 GE Refrigerator Shelf Module
31	WR17X20452 GE Refrigerator Grille Recess
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
45	POLYPROPYLENE TAPE
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	GEN WR17X20754
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
63	GEN 225D3755G010
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	WR17X27912 GE Refrigerator Dispenser Paddle
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
75	WR02X13405 GE Refrigerator Cover LED Housing Shield
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	WR55X20460 GE Refrigerator Dispenser Interface Assembly
122	WR71X10291 GE Refrigerator Shelf Module
123	WR71X10501 GE Refrigerator Fixed Shelf Module
291	WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
854	WR23X10695 GE Refrigerator Harness Recess Dispenser
900	GEN WR78X20473
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
915	WR01X11014 GE Refrigerator Set Screw
