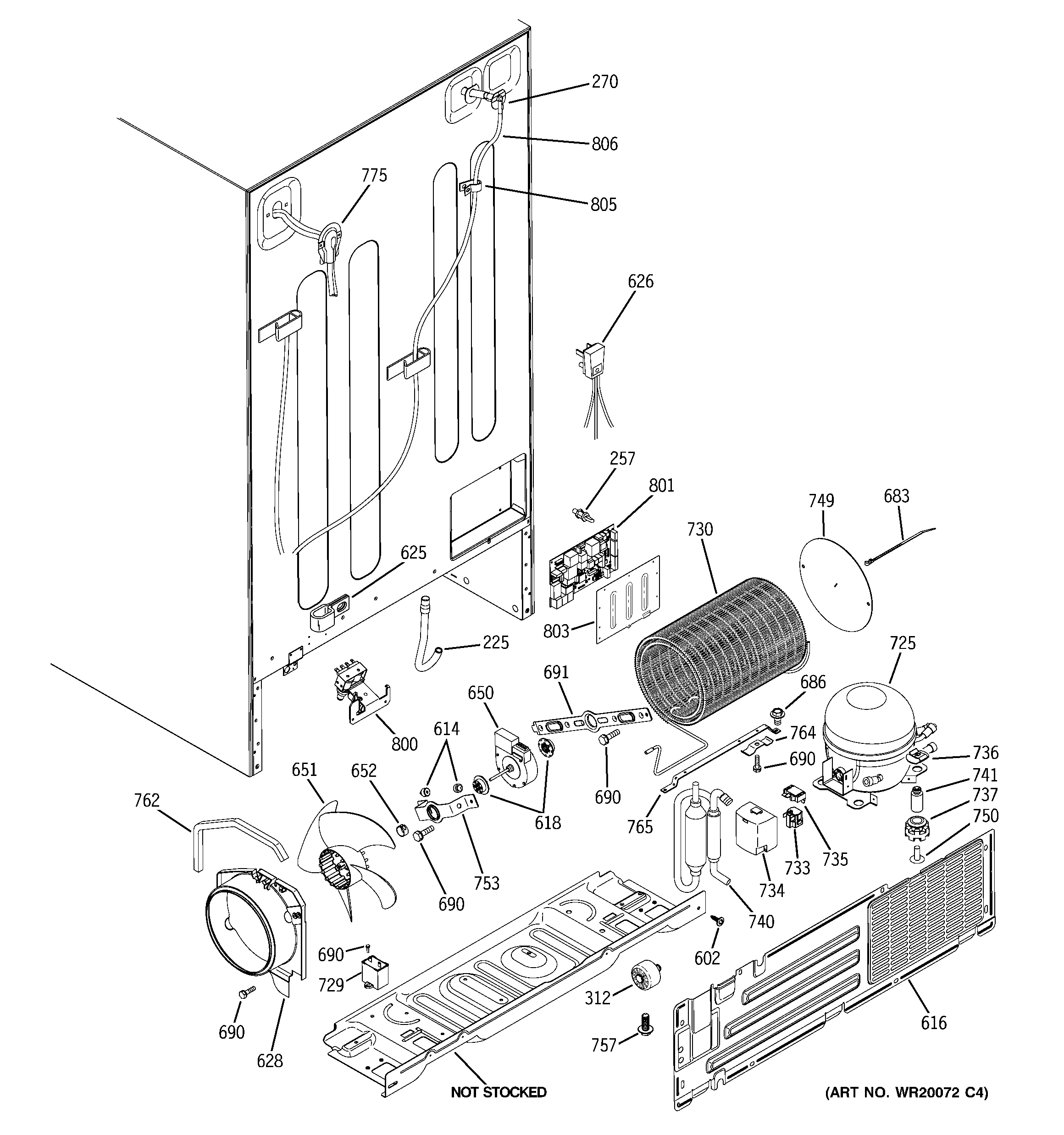

DSF26DHWABB SEALED SYSTEM & MOTHER BOARD

DSF26DHWABB SEALED SYSTEM & MOTHER BOARD

Written by

in

DSF26DHWABB SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X10695 GE Refrigerator Wheel
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
614BUMPER
614WH1X2722 GE Lid Bumper
616WR82X10103 GE Refrigerator Access Cover
618GROMMET EVAP
625WR1X5278 GE Refrigerator Cable Clamp
626WR23X10300 GE Refrigerator Power Cord Assembly
628GEN WR17X11650
650WR60X10220 GE Refrigerator Condenser Fan Motor
651WR60X10207 GE Refrigerator Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X11742 GE Refrigerator Bracket Condenser Fan
725WR87X20798 GE Refrigerator High Side Assembly
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733WR07X10084 GE Start Relay
734GEN WR02X10556
735WR08X10025 GE Refrigerator Overload
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753GEN WR02X11621
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
762WR14X10199 GE Foam Strip
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
775WR17X10796 GE Refrigerator Water Line Cover
800WR57X10070 GE Refrigerator Water Valve
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
803WR02X12025 GE Main Board Enclosure
806WR17X11625 GE Refrigerator Plastic Tube
