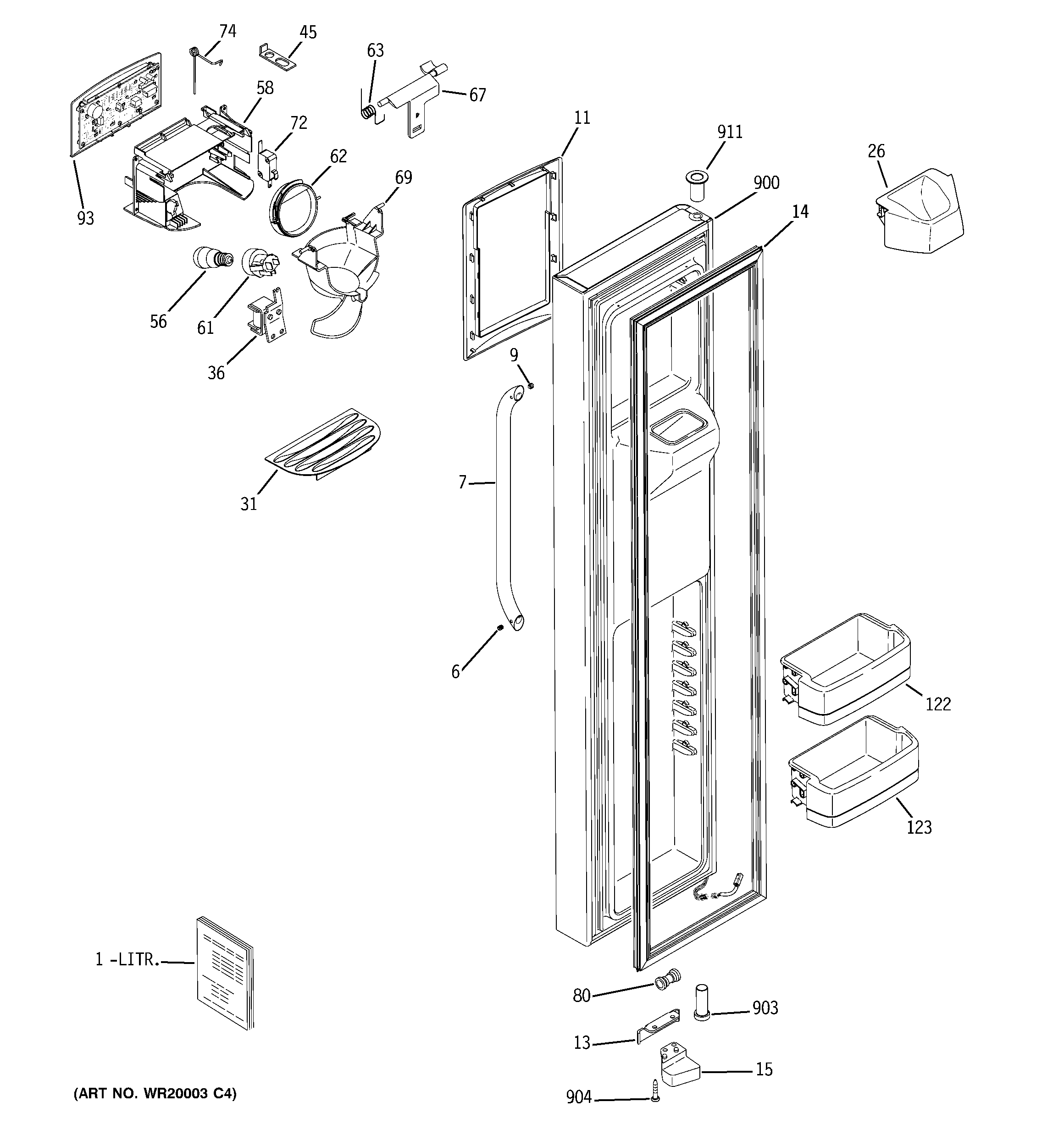

DSHF5PGXAEWW FREEZER DOOR

DSHF5PGXAEWW FREEZER DOOR

Written by

in

DSHF5PGXAEWW FREEZER DOOR

Products

PositionProduct
1GEN 46-60542
1GEN 31-51627
6WR01X10450 GE Refrigerator Screw Set
7WR12X10907 GE Refrigerator Tubulur Handle Assembly
7WR12X10908 GE Refrigerator Tubulur Handle Assembly
9WR02X12800 GE Refrigerator Stainless Steel Handle Fastener
11GEN WR38X10417
11GEN WR38X10416
13WR02X12353 GE Refrigerator Door Stop
13WR02X12351 GE Refrigerator Door Stop
14WR24X10156 GE Refrigerator Door Gasket White
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10638 GE Refrigerator Cam Closure
15WR02X10780 GE Refrigerator Cam Closure
26GEN WR71X10706
31WR17X11654 GE Refrigerator White Recess Grille
31WR17X11655 GE Refrigerator Grille Recess Black
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR49X10228 GE Dispenser Shield Housing Kit
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10839
93GEN WR55X10840
122WR71X10291 GE Refrigerator Shelf Module
123WR71X10501 GE Refrigerator Fixed Shelf Module
900GEN WR78X12187
900GEN WR78X12185
903WR01X10208 GE Refrigerator Door Thimble
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
911WR01X10955 GE Refrigerator Door Thimble
911WR01X10956 GE Door Thimble
