DSHF9NGYACBB FRESH FOOD SHELVES

DSHF9NGYACBB FRESH FOOD SHELVES

Written by

in

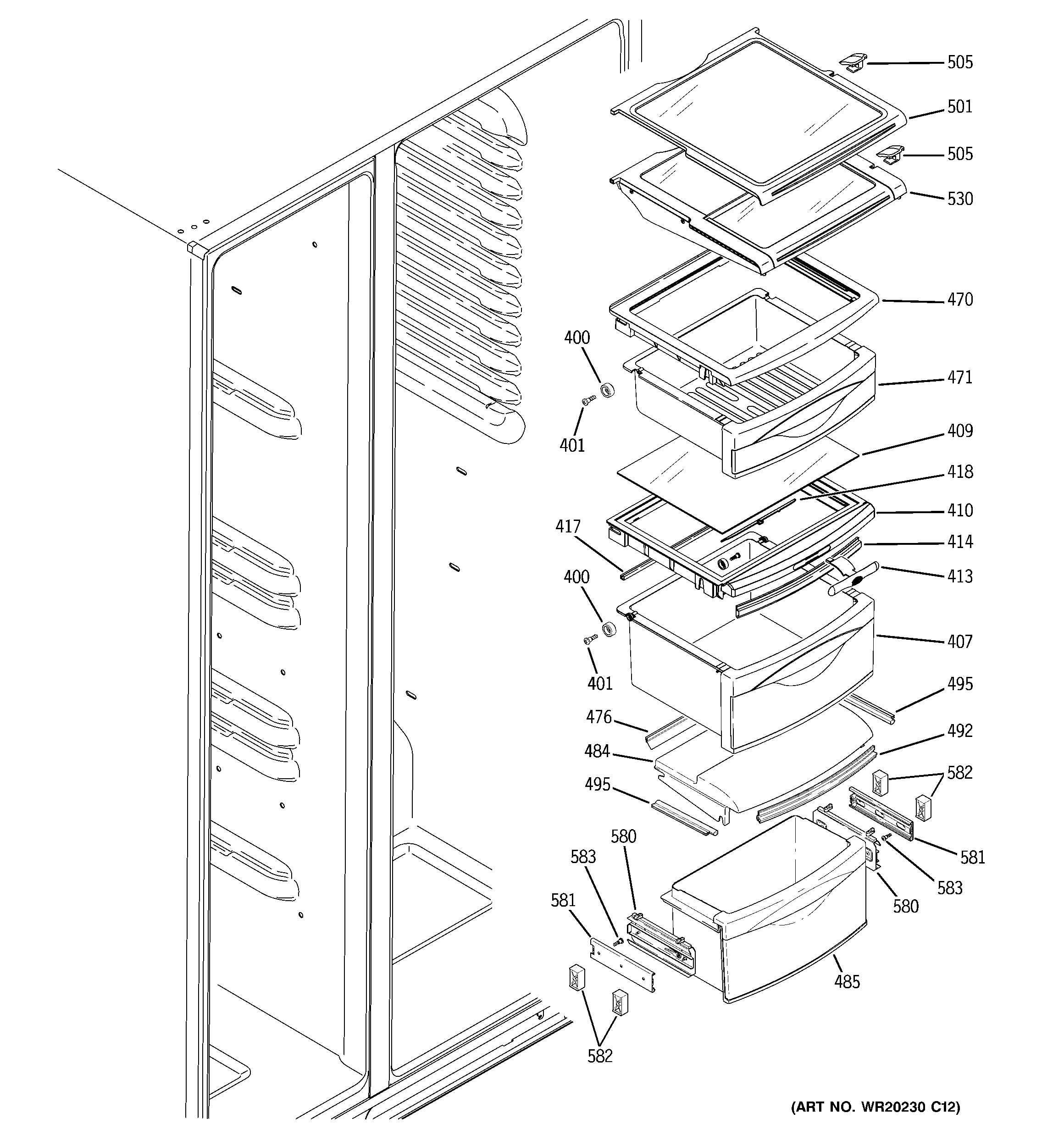

DSHF9NGYACBB FRESH FOOD SHELVES

Products

PositionProduct
400WR01X10209 GE Refrigerator Wheel Pan Cover
401WR01X10615 GE Screw
407PAN MIDDLE ASM
409COVER PAN GLASS
410MIDDLE PAN COVER
413WR02X10821 GE Refrigerator Humidity Control
414WR14X10059 GE Refrigerator Front Cover Pan Gasket
417WR14X10058 GE Drawer Seal
418WR02X10633 GE Middle Pan Cover Slide
470WR32X10566 GE Refrigerator Cover Top Pan Assembly
471WR32X26215 GE Top Pan Assembly
476WR14X10169 GE Refrigerator Gasket Pan Cover Front
484GEN WR32X10436
485GEN WR32X10536
492WR14X10105 GE Refrigerator Front Seal
495WR14X10160 GE Refrigerator Chill Sides Seal
501WR71X10249 GE Refrigerator Shelf Slideout Assembly
505WR02X10662 GE Shelf Support Retainer
530WR71X10616 GE Refrigerator Shelf Tuckaway Assembly
580WR72X10193 GE Refrigerator Slide and Bracket Assembly L
580WR72X10194 GE Slide and Bracket
581WR72X10195 GE Refrigerator Slide Liner
582WR72X10239 GE Refrigerator Spacer
583WR01X10629 GE Refrigerator Screw 8-18 AB Hex Washer 1/2"
