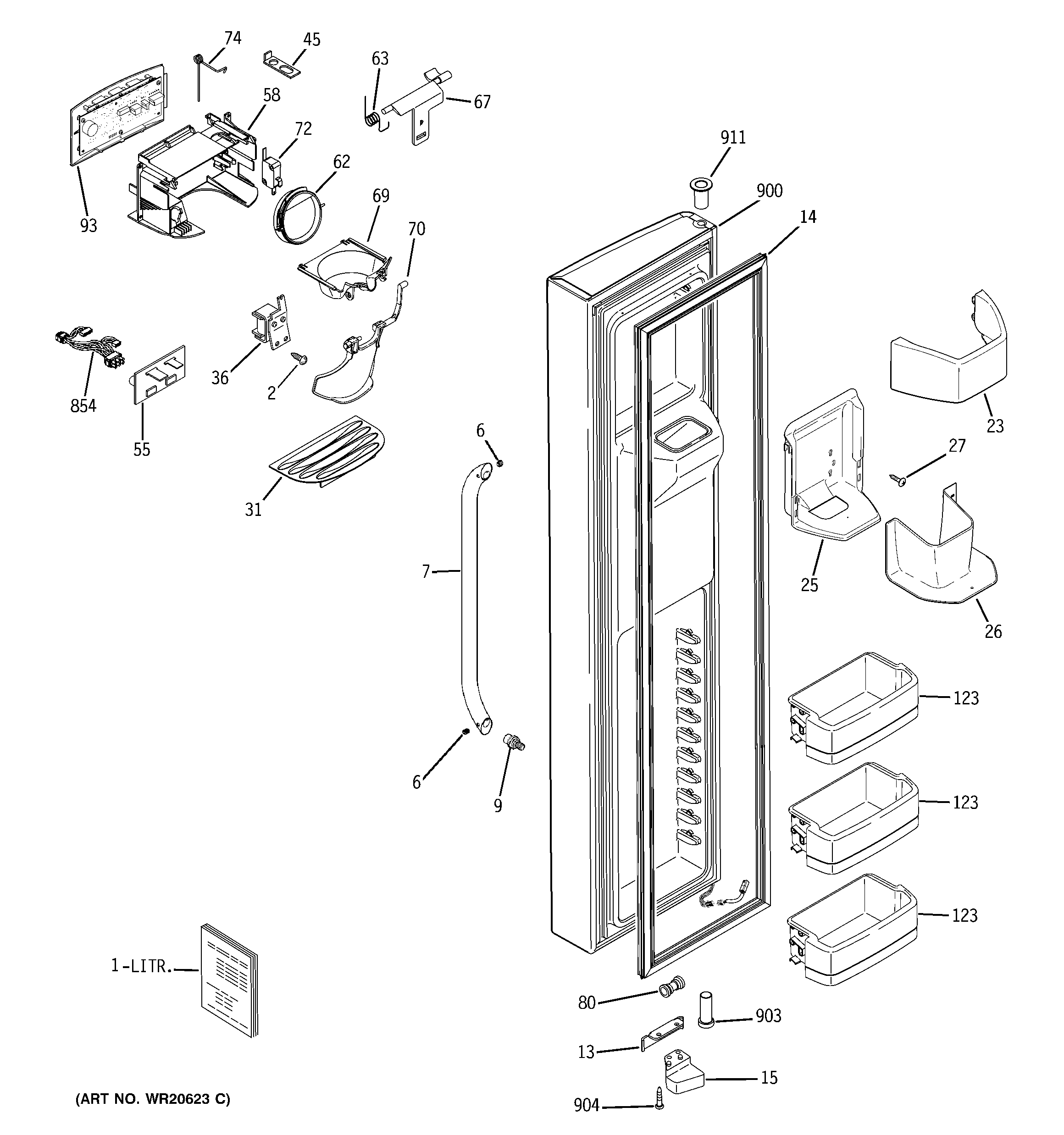

DSHF9NGYACWW FREEZER DOOR

DSHF9NGYACWW FREEZER DOOR

Written by

in

DSHF9NGYACWW FREEZER DOOR

Products

Position	Product
1	GEN 49-60587
1	GEN 31-51779
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6	WR01X10450 GE Refrigerator Screw Set
7	WR12X10907 GE Refrigerator Tubulur Handle Assembly
7	WR12X10908 GE Refrigerator Tubulur Handle Assembly
9	WR02X12800 GE Refrigerator Stainless Steel Handle Fastener
13	WR02X10690 GE Refrigerator Door Stop
13	WR02X10782 GE Refrigerator Stop Door
14	WR24X10156 GE Refrigerator Door Gasket White
14	WR24X20455 GE Refrigerator Freezer Door Gasket
15	WR02X10638 GE Refrigerator Cam Closure
15	WR02X10780 GE Refrigerator Cam Closure
23	GEN WR71X10509
25	GEN WR71X10510
26	GEN WR71X10511
27	WR01X10857 GE Scr 8-18 Ab Flp 7/8 S
31	WR17X12884 GE Refrigerator Grille Recess
31	WR17X12873 GE Refrigerator Grille Recess
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X34287 GE Refrigerator Dispenser Housing Shield White
58	WR17X34266 GE Refrigerator Housing Shield Dispenser Black
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	WR17X12121 GE Refrigerator Paddle Ice Dispenser White
70	WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10974
93	GEN WR55X10975
123	WR71X10246 GE Refrigerator Freezer Shelf
854	WR23X10665 GE Dispenser Recess Harness
900	GEN WR78X12488
900	GEN WR78X12486
903	WR01X10208 GE Refrigerator Door Thimble
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
911	WR01X10955 GE Refrigerator Door Thimble
