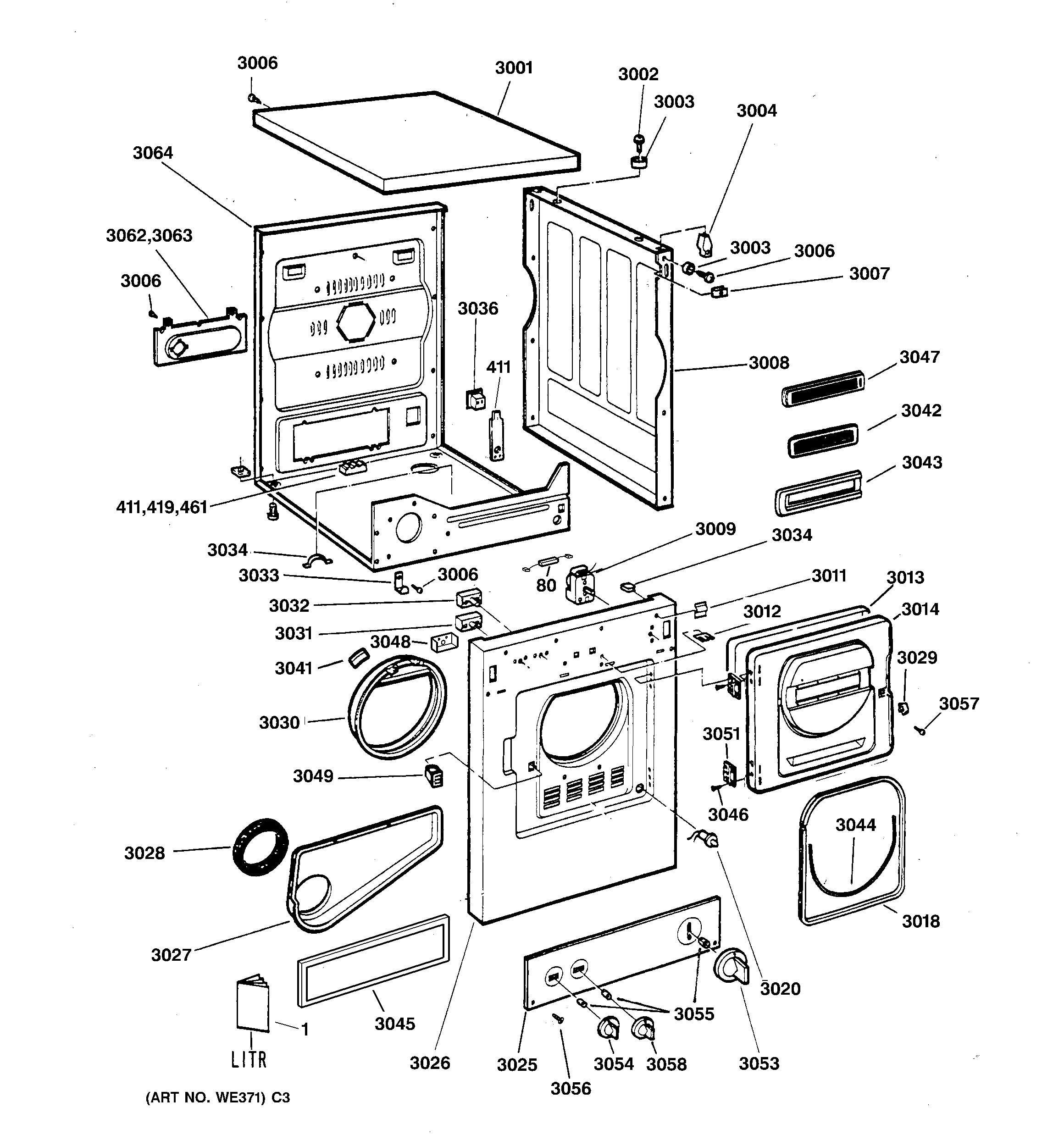

DSKS433EA0AA CABINET, FRONT PANEL, DOOR & CONTROL PANEL

DSKS433EA0AA CABINET, FRONT PANEL, DOOR & CONTROL PANEL

Written by

in

DSKS433EA0AA CABINET, FRONT PANEL, DOOR & CONTROL PANEL

Products

PositionProduct
1GEN 49-9898
1GEN 31-2811
1GEN 31-1819
80GEN WE04M0198
411GEN WE01M0341
414WE1X1172 GE Strap Assembly
419GEN WE04X0168
461WZ5X158D GE Screw Package of 12
530GEN WE17M0024
3001GEN WE20X0695
3002WE02X25454 GE Screw 10-16 A TRQ2 1-1/4 S
3003GEN WE01X1079
3004GEN WE01X1080
3006WE2X263D GE Screw Package 12 C92
3007GEN WE02X0196
3008GEN WE20X0697
3009GEN WE4M264
3011GEN WE02X0321
3012GEN WE01M0317
3013GEN WE10M87
3014GEN WE10M0099
3018WE9M16 GE Door Gasket
3020SWITCH, DOOR
3025GEN WE19M1151
3026GEN WE20M0280
3027GEN WE14M0060
3028WE9X38 GE Dryer Felt Seal Assembly
3029WE1M1011 GE Washer Dryer Door Latch
3030GEN WE03M0021
3031GEN WE4M145
3032GEN WE4M265
3033BRACKET, CABINET FRONT
3034CLIP
3036GEN WE04X0721
3041WE03X37319 GE Dryer Bearing Slide 2-Pack
3042WE22X35337 GE Grid Assembly
3044GEN WE09M0017
3045INSULATION, CABINET
3046WE2M196 GE Screw #8
3047GEN WE18M0020
3048SHIELD, START SWITCH
3049WE1X1192 GE Dryer Door Strike
3051WE1M1033 GE Hinge
3053KNOB, TIMER AD
3054GEN WE1M466
3055WE1M140 GE Clip
3056GEN WH02M0385
3057GEN WE2M150
3058WH1X2721 GE Dryer Control Knob
3062GEN WE01X1087
3063GEN WE01X1088
3064GEN WE20M0278
