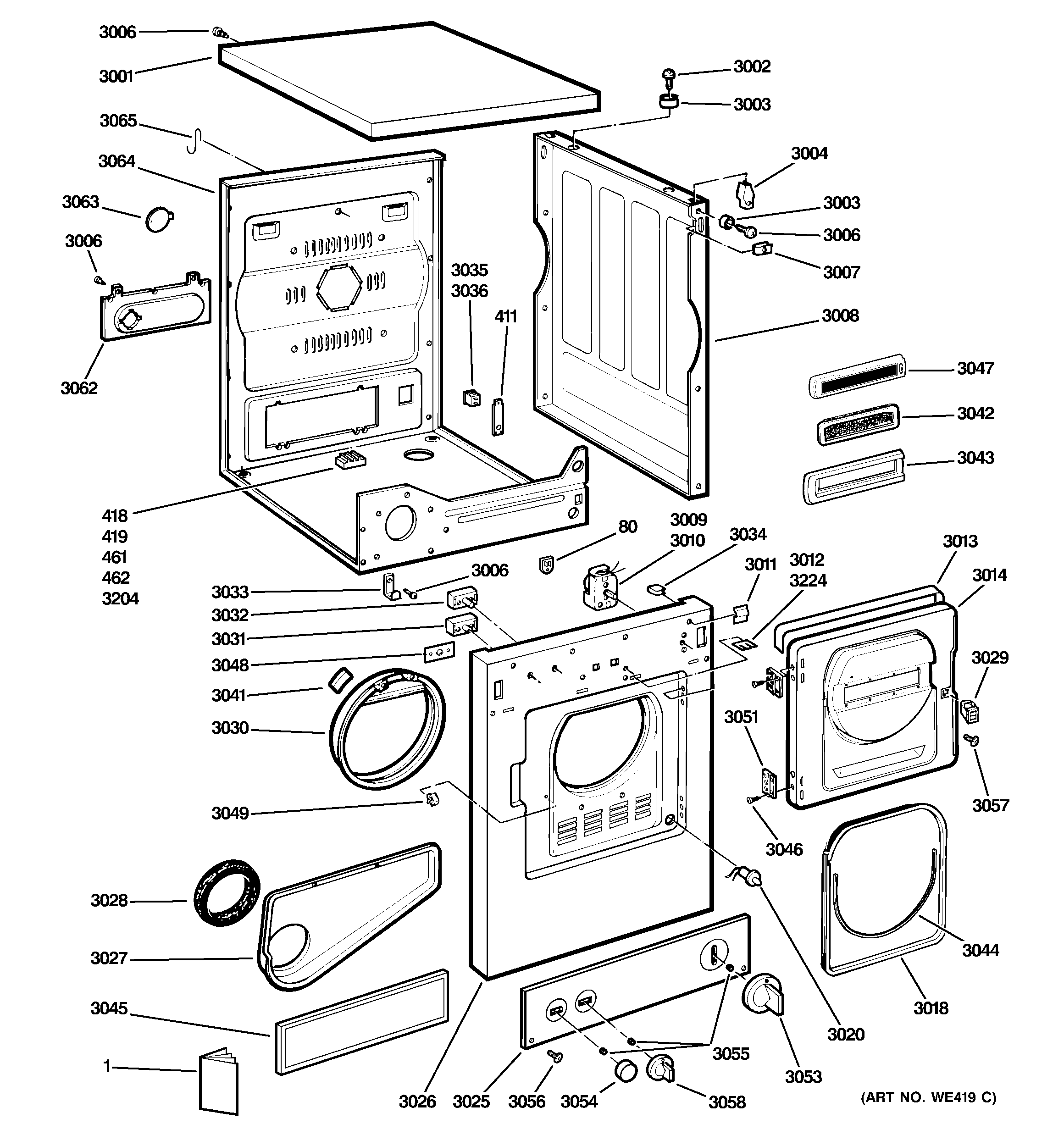

DSKS433EB1WW CABINET, FRONT PANEL, DOOR & CONTROL PANEL

DSKS433EB1WW CABINET, FRONT PANEL, DOOR & CONTROL PANEL

Written by

in

DSKS433EB1WW CABINET, FRONT PANEL, DOOR & CONTROL PANEL

Products

PositionProduct
1GEN 31-16069
1GEN 49-90096
1GEN 31-16057
80WE4M255 GE Washer Resistor
411GEN WE1M341
418GEN WZ07X0031
419WE4M325 GE Dryer Terminal Block and Ground Strap
461WZ5X158D GE Screw Package of 12
462GEN WE2M169
3001GEN WE20M208
3002WE02X25454 GE Screw 10-16 A TRQ2 1-1/4 S
3003BUMPER
3004GEN WE1M195
3006WE2X263D GE Screw Package 12 C92
3007GEN WE2X196
3008GEN WE20M202
3009WE49X23896 GE Timer and Harness Kit
3010WE1M398 GE Control Shield
3011GEN WE2M95
3012GEN WE1M317
3013DOOR OUTER WHITE
3014GEN WE10M94
3018WE9M16 GE Door Gasket
3020SWITCH, DOOR
3025GEN WE19M1249
3026TOP COVER BQ
3027GEN WE14M60
3028WE9X38 GE Dryer Felt Seal Assembly
3029WE1M1011 GE Washer Dryer Door Latch
3030GEN WE3M21
3031GEN WE4M145
3032WE4M403 GE Electric Rotary Switch 4TEMP
3033BRACKET, CABINET FRONT
3034GEN WE1X408
3035WE1M455 GE Receptacle Plate
3036GEN WE4M297
3041WE03X37319 GE Dryer Bearing Slide 2-Pack
3042GEN WE18M20
3044GASKET
3045INSULATION, CABINET
3046WE2M170 GE Screw #8
3047WE22X35337 GE Grid Assembly
3048SHIELD, START SWITCH
3049WE1X1192 GE Dryer Door Strike
3051WE1M1033 GE Hinge
3053WE1X1263 GE Dryer Timer Control Knob
3054WE1M356 GE WE1M353
3055WE1M140 GE Clip
3056WD02X10057 GE Dishwasher Screw 10-16 x 1
3057WE2M196 GE Screw #8
3058WH1X2721 GE Dryer Control Knob
3062WE1M194 GE Access Backplate
3063COVER KNOCKOUT
3064GEN WE20M312
3065CLIP CORDSET
3204WZ4X241D GE Screw Package
3224GEN WE01X0762
