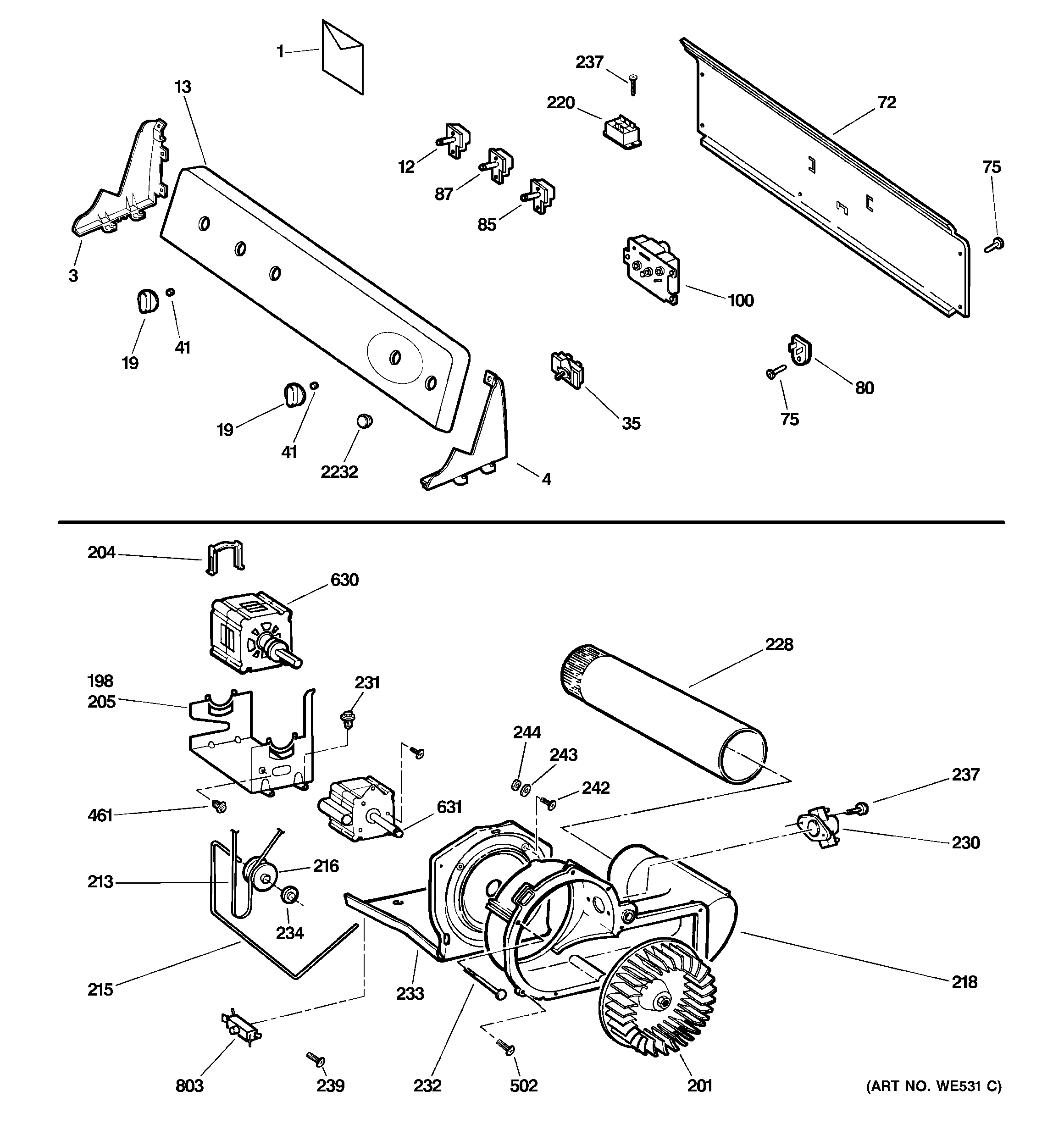

DSLVR48EH2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DSLVR48EH2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DSLVR48EH2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16179
1GEN 31-16136
1GEN 49-90328
3WE49X22294 GE Endcap Service Kit
4WE19X20467 GE Endcap Left Hand
12GEN WE4M368
13GEN WE19M1608
19WH01X10462 GE Washer Dryer Gray Knob and Clip Assembly
35PUSH TO START SWITCH
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
85WE4M399 GE Rocker Switch
87WE4M411 GE Appliance Rotary Switch Zodiac 4 Temp
100GEN WE4M429
198WE2M200 GE Ground Screw
201BLOWER WHEEL
204WE1M555 GE Motor Clip
205WE13M38 GE Motor Plate
213WE03X29897 BELT DRIVE
215WE03X21438 GE Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
220GEN WE4M430
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WE13M37
234GEN WE2M96?
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
242WE02X28997 GE Plain Screw and Washers
243WASHER
244RUBBER GROMMET
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630MTR/PULLEY ASM L.V.
631WE49X22596 GE Blower Motor Assembly
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
