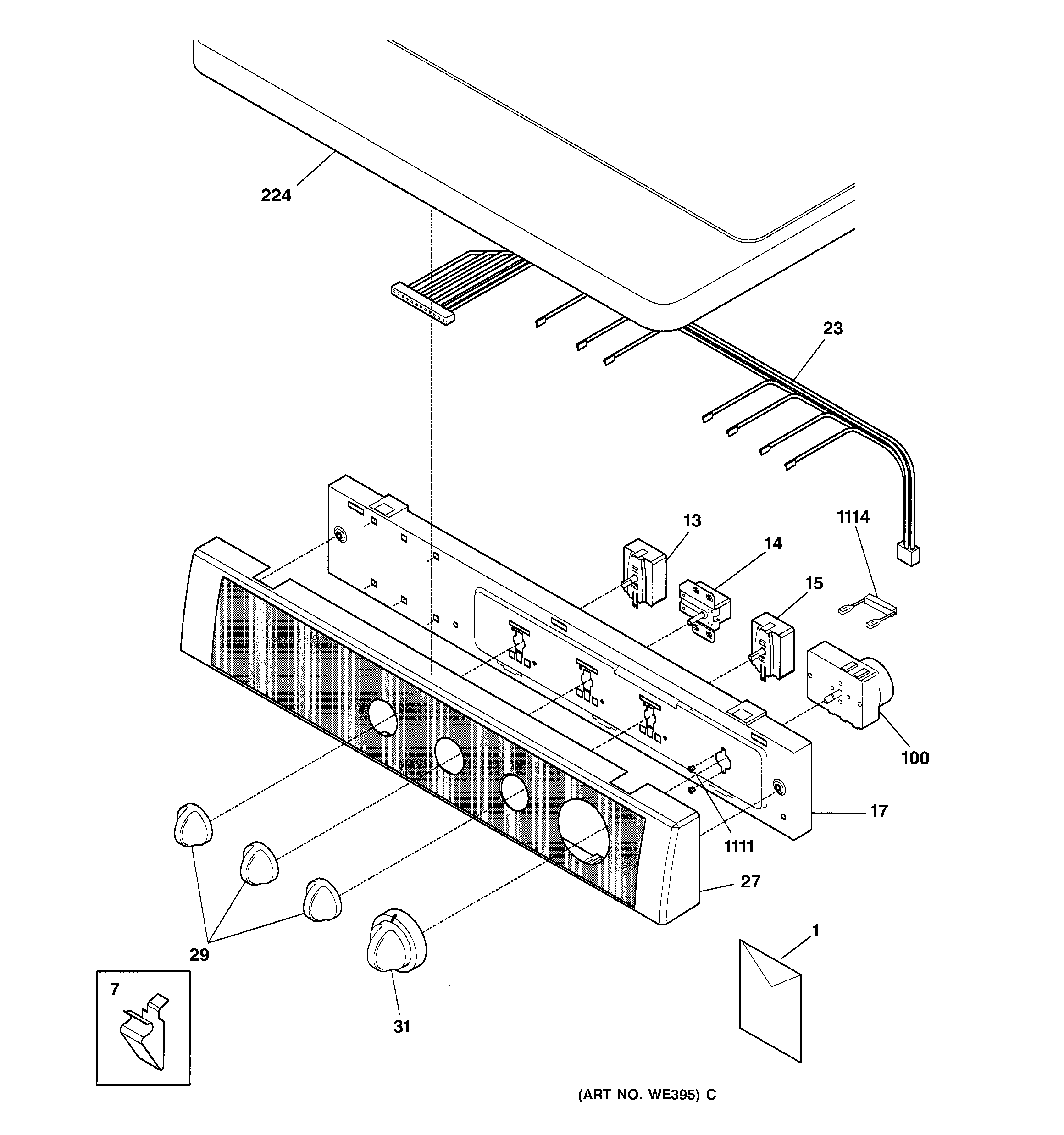

DSXH43EV0WW CONTROL PANEL

Products

Position	Product
1	GEN 49-9963
1	GEN 31-15363
7	CLIP-TOP FRONT/PANEL
13	GEN WE04X10023
14	GEN WE04X10010
15	GEN WE04X10008
17	GEN WE13X10004
22	SCREW
23	GEN WE08X10005
27	CONTROL PANEL ASM.
29	ROTARY WH
31	GEN WE01X10032
100	WE04X10024 GE Timer
224	GEN WE04X10011
1111	GEN WH02X1150
1114	RESISTOR-POWER, 4.4K
1375	GEN WE01X10021
