DU018DWJX0 03 – DOOR AND TOE PANEL
Written by
in

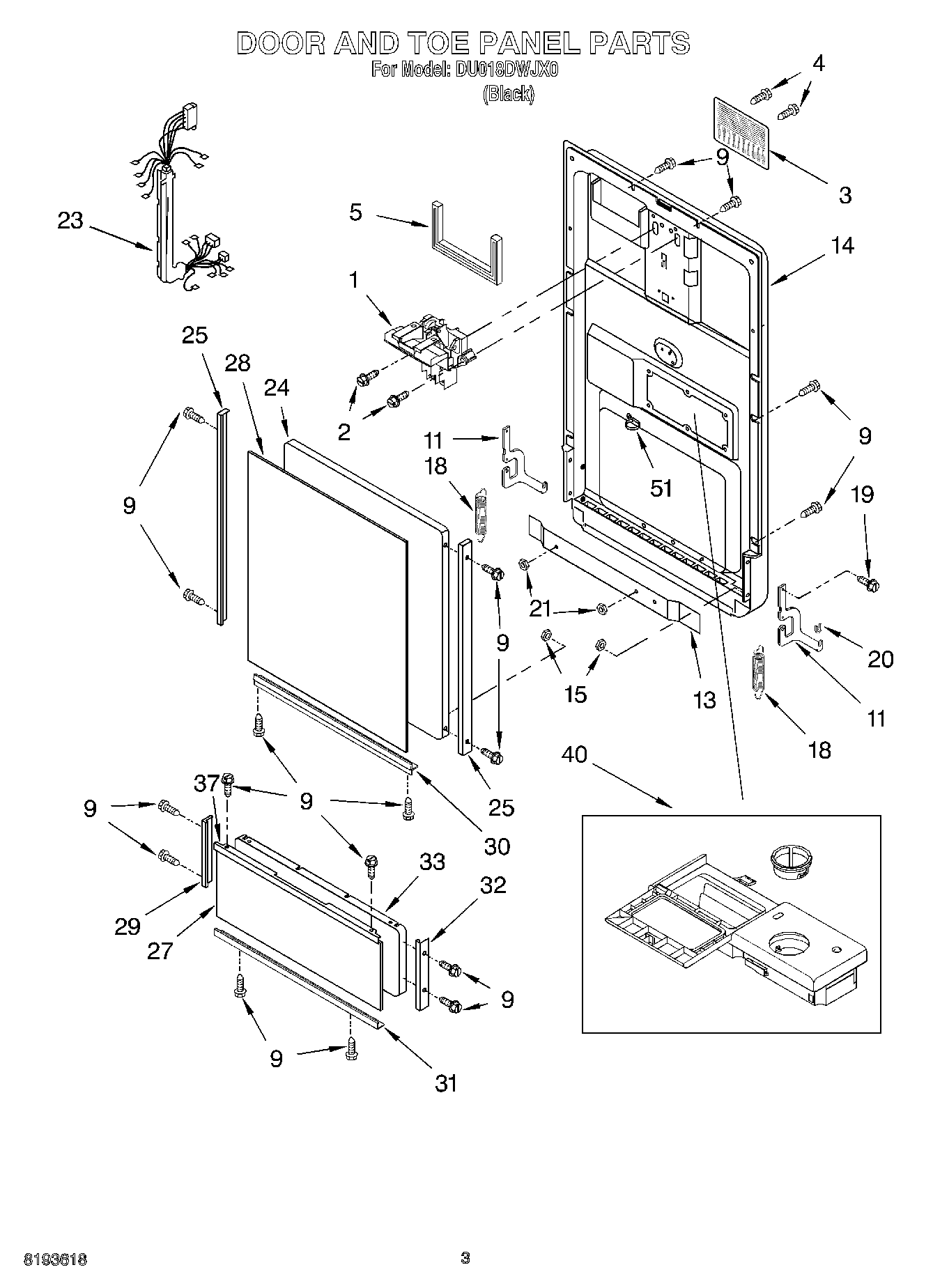

DU018DWJX0 03 – DOOR AND TOE PANEL
Products
Position
Product
1
Latch Assembly
2
Screw
3
Cover, Vent
4
Screw, Vent Cover
5
Gasket, Vent Cover
9
Screw, 8 x 3/8
11
Arm Assembly (R.H. & L.H.)
13
Seal, Baffle
14
Door, Inner
15
Nut, Arm Assembly
18
Spring, Door
19
Screw, Arm Assembly
20
Pad, Spring
21
Speednut, Baffle
23
Harness, Wiring
24
Panel, Door
25
Trim, Side Door
27
Insert, Access Panel (White & Clear)
28
Insert, Door Panel (White & Clear)
29
Trim, Access Panel – L.H.
30
Trim, Door Bottom
31
Trim, Access Panel Bottom
32
Trim, Access Panel – R.H.
33
Panel, Access
37
Trim, Access Panel Top
40
Body Assembly
51
Clamp, wire
←
