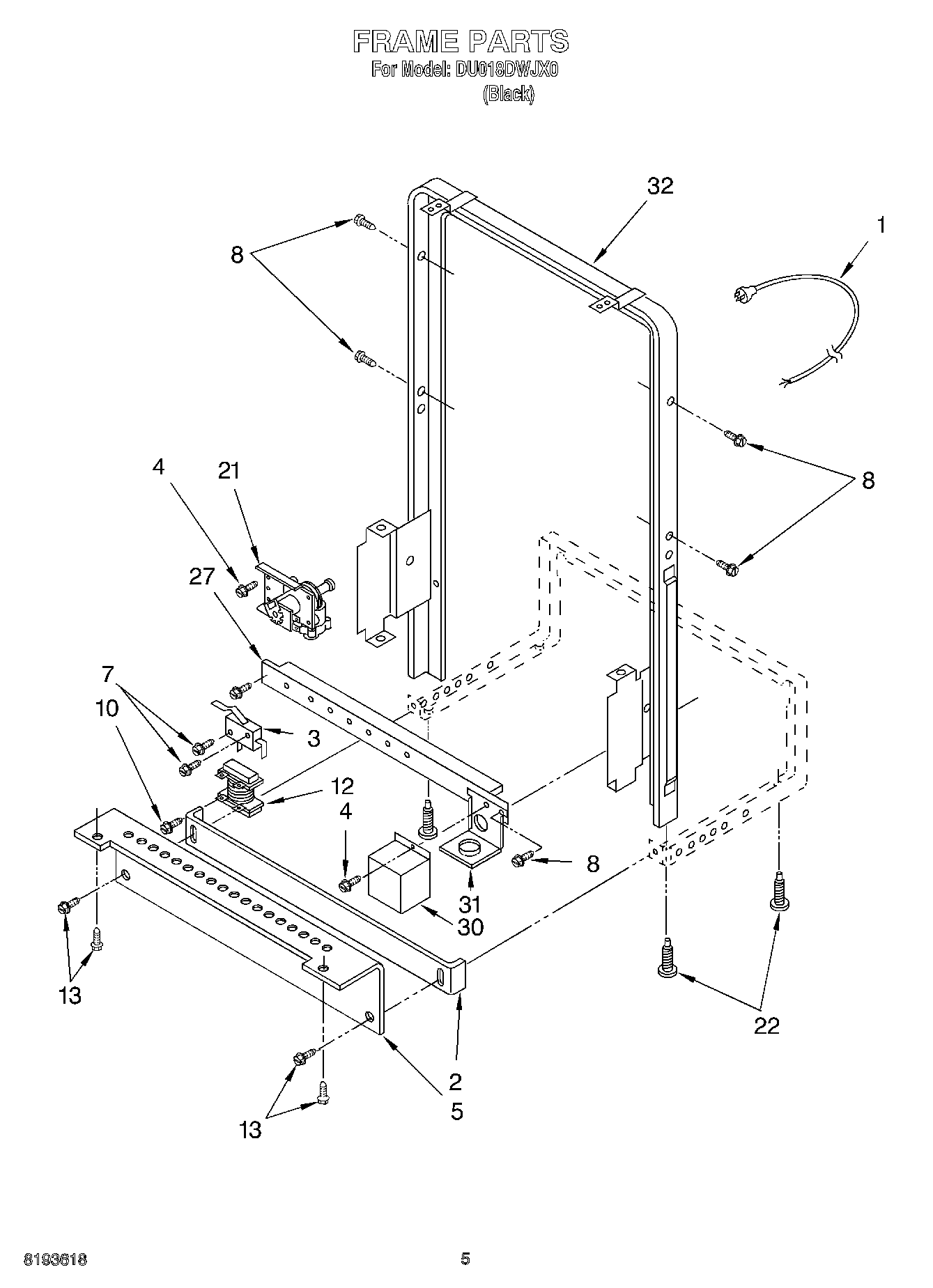

DU018DWJX0 04 – FRAME

Products

PositionProduct
1Power Cord (optional)
2Toeplate, Adjustable
3Switch, Float
4Screw
5Toeplate
7Screw, 10 x 5/8
8Screw
10Screw, No.8-32 x 1 1/4
12Relay, Motor
13Screw, No.8 x 3/8
21WPR9800089 Whirlpool Inlet Valve
22Levelers (4)
27Brace, Front
30Cover, Junction Box
31Bracket, Junction Box
32Frame Assy., Front
