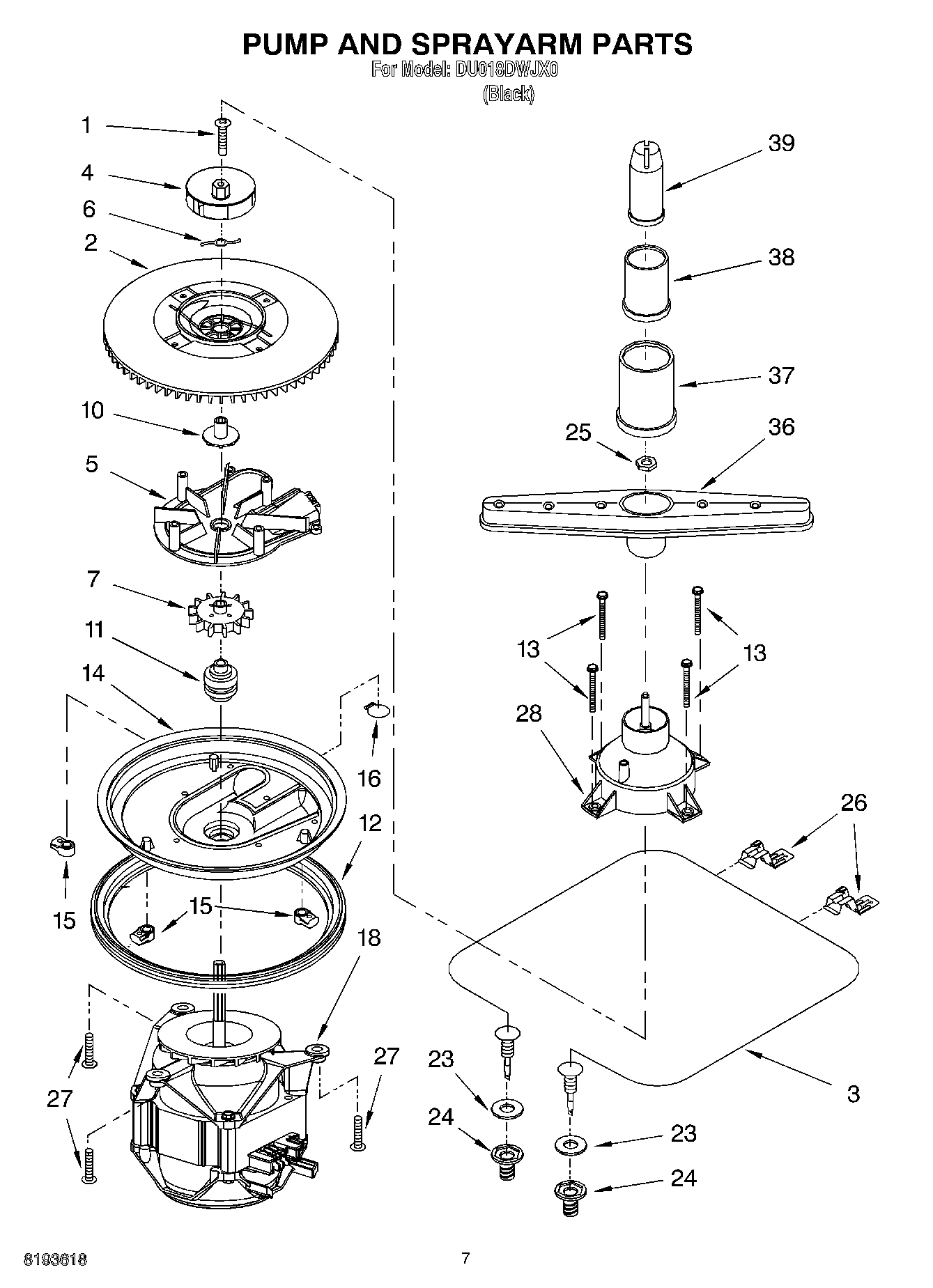

DU018DWJX0 05 – PUMP AND SPRAYARMadmin2025-04-26T12:08:18+00:00DU018DWJX0 05 – PUMP AND SPRAYARM
Products
| Position | Product |
|---|
| 1 | Screw |
| 2 | Cover, Pump Housing |
| 3 | Heater |
| 4 | Upper Impeller |
| 5 | Cover, Volute |
| 6 | Macerator |
| 7 | Impeller, Lower |
| 10 | Slinger, Pump |
| 11 | Sleeve & Seal Assembly |
| 12 | Gasket, Pump |
| 13 | Screw, Pump Housing |
| 14 | Housing, Pump |
| 15 | Retainer, Sump |
| 16 | Valve, Check |
| 18 | Motor Assembly |
| 23 | Washer, Insulating |
| 24 | Nut, Heater |
| 25 | Nut, Spray Arm |
| 26 | Bracket, Heater |
| 27 | Screw, Motor Mounting |
| 28 | Diffuser |
| 36 | Sprayarm, Lower |
| 37 | Base, Tower |
| 38 | Middle, Tower |
| 39 | Tip, Tower |
