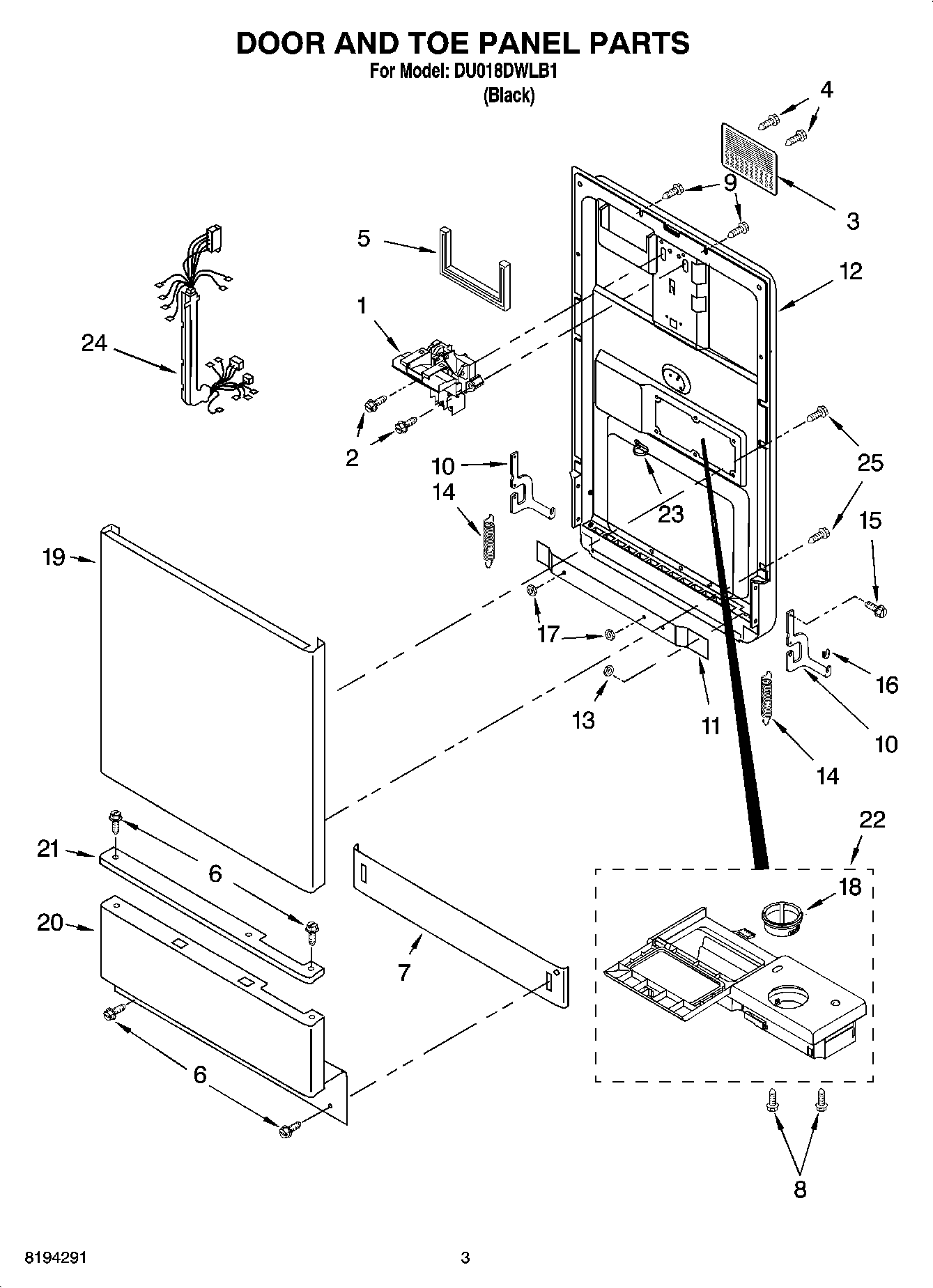

DU018DWLB1 03 – DOOR AND TOE PANEL PARTS

Products

PositionProduct
1Latch Assembly
2Screw
3Cover, Vent
4Screw, Vent Cover
5Gasket, Vent Cover
6Screw
7Panel, Toe
8Screw
9Screw
10Arm Assembly (R.H. & L.H.)
11Seal, Baffle
12Door, Inner
13Nut, Arm Assembly
14Spring, Door
15Screw, Arm Assembly
16Pad, Spring
17Speednut, Baffle
18Cap, Rinse Aid
19Panel, Door
20Panel, Access
21Trim, Access Panel
22Body Assembly
23Clamp, wire
24Harness, Wiring
25Screw
