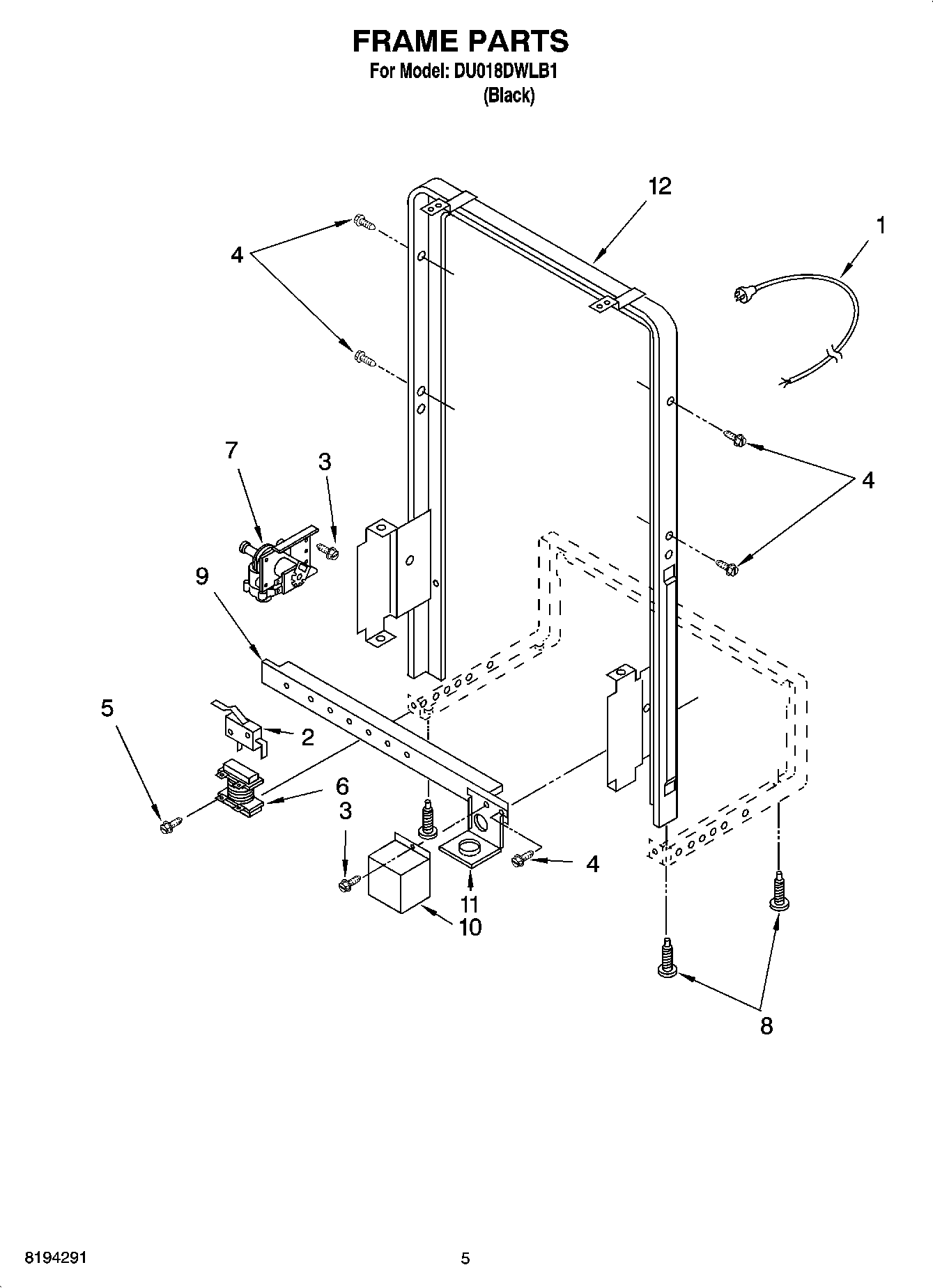

DU018DWLB1 04 – FRAME PARTS

DU018DWLB1 04 – FRAME PARTS

Written by

in

DU018DWLB1 04 – FRAME PARTS

Products

Position	Product
1	Power Cord (optional)
2	Switch, Float
3	Screw
4	Screw
5	Screw, No.8-32 x 1 1/4
6	Relay, Motor
7	WPR9800089 Whirlpool Inlet Valve
8	Levelers (4)
9	Brace, Front
10	Cover, Junction Box
11	Bracket, Junction Box
12	Frame Assy., Front
