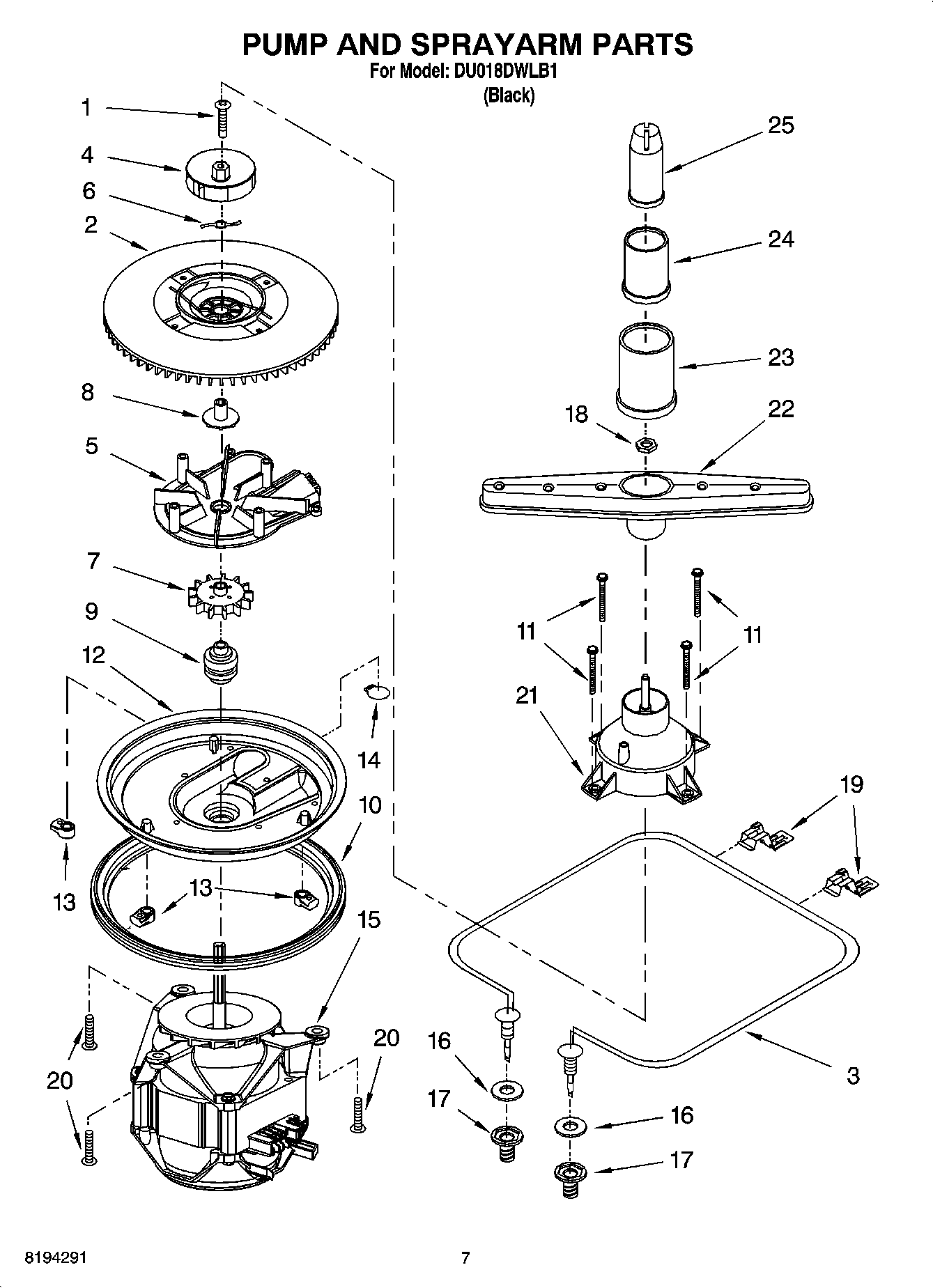

DU018DWLB1 05 – PUMP AND SPRAYARM PARTS

Products

PositionProduct
1Screw
2Cover, Pump Housing
3Heater
4Upper Impeller
5Cover, Volute
6Macerator
7Impeller, Lower
8Slinger, Pump
9Sleeve & Seal Assembly
10Gasket, Pump
11Screw, Pump Housing
12Housing, Pump
13Retainer, Sump
14Valve, Check
15Motor Assembly
16Washer, Insulating
17Nut, Heater
18Nut, Spray Arm
19Bracket, Heater
20Screw, Motor Mounting
21Diffuser
22Sprayarm, Lower
23Base, Tower
24Middle, Tower
25Tip, Tower
