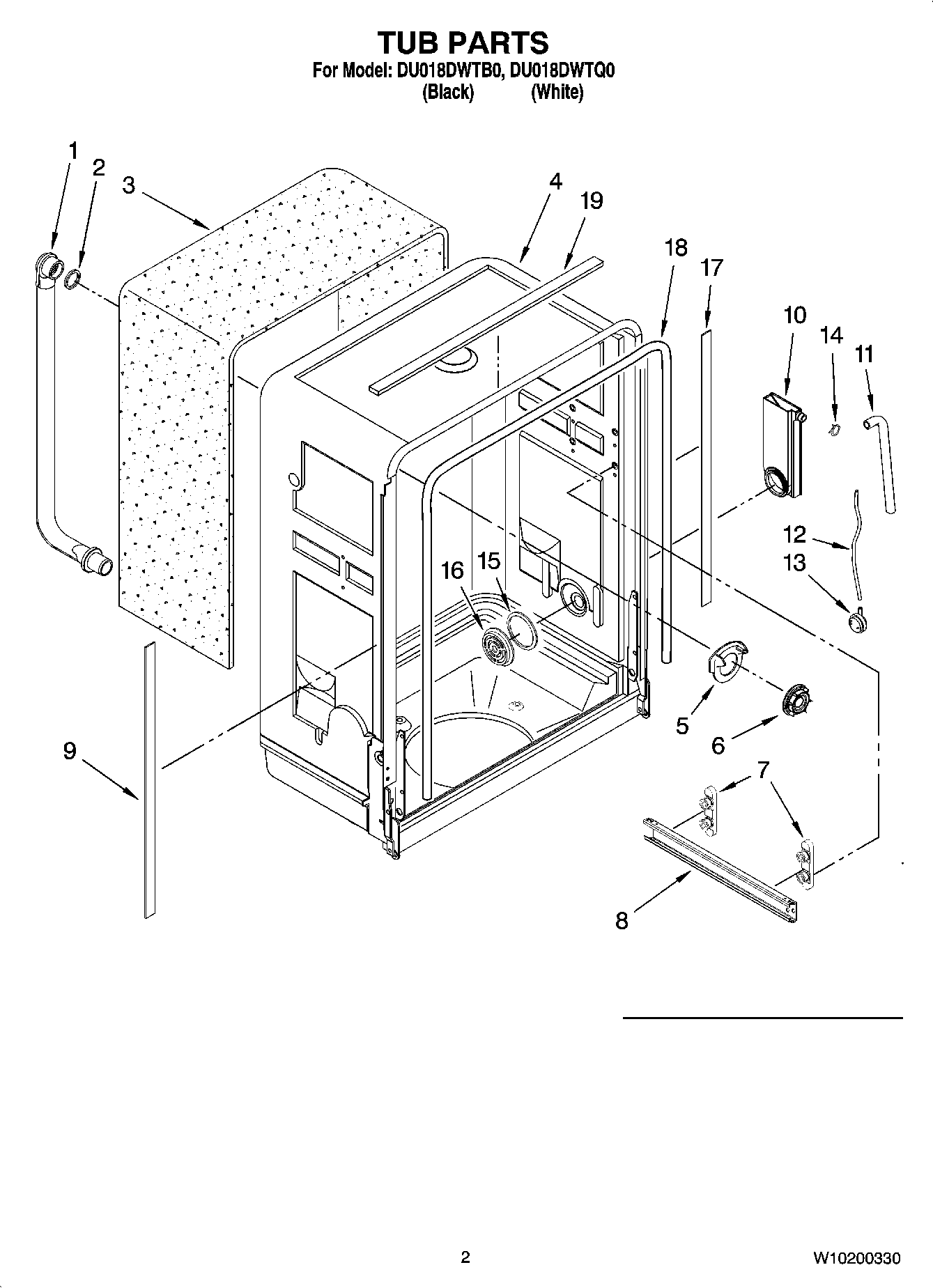

DU018DWTB0 02 – TUB PARTS

DU018DWTB0 02 – TUB PARTS

Written by

in

DU018DWTB0 02 – TUB PARTS

Products

PositionProduct
1W10181553 Whirlpool Dishwasher Tube
2W10181554 Whirlpool Dishwasher Gasket
3Shield, Sound
4WPW10181555 Whirlpool Dishwasher Tub
5GUIDE
6Nut
7Wheel, Tub
8TRACK
9Trim, Tank Left (Black)
9Trim, Tank Left (White)
11Hose, Inlet
12Hose, PVC
13W10181588 Whirlpool Dishwasher Water Level Switch
14W10181583 Whirlpool Dishwasher Clamp
15W10181585 Whirlpool Dishwasher Gasket
16Bezel, Inlet
17Trim, Tank Right (White)
17Trim, Tank Right (Black)
18Gasket, Door
19Tank, Trim Top (Black)
19Tank, Trim Top (White)
