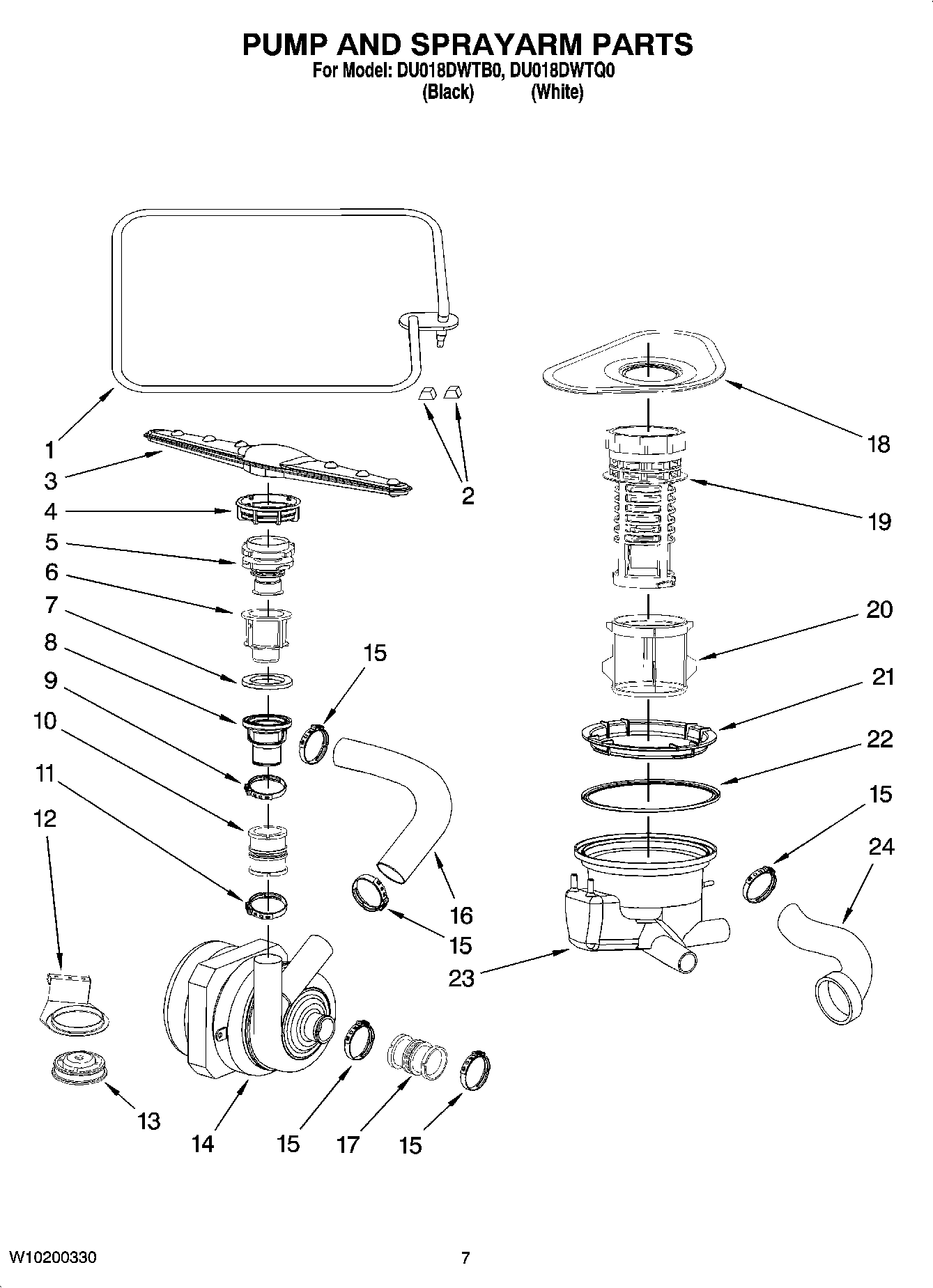

DU018DWTB0 05 – PUMP AND SPRAYARM PARTS

Products

PositionProduct
1W10181654 Whirlpool Dishwasher Heater
2COVER
3Sprayarm
4Nut, Lower Sprayarm
5Support, Arm
6Support, Lower Manifold
7W10181554 Whirlpool Dishwasher Gasket
8Nut, Support Manifold
9W10181635 Whirlpool Dishwasher Clamp
12W10181643 Whirlpool Support
13GROMMET
14Motor, Pump
16W10181638 Whirlpool Dishwasher Hose
17HOSE
18W10181660 Whirlpool Dishwasher Sieve
19Filter, Drain
20W10181658 Whirlpool Dishwasher Microfilter
21Nut, Sump
22W10181656 Whirlpool Dishwasher Gasket
23W10181655 Whirlpool Dishwasher Sump Assembly
24W10181634 Whirlpool Dishwasher Drain Hose
