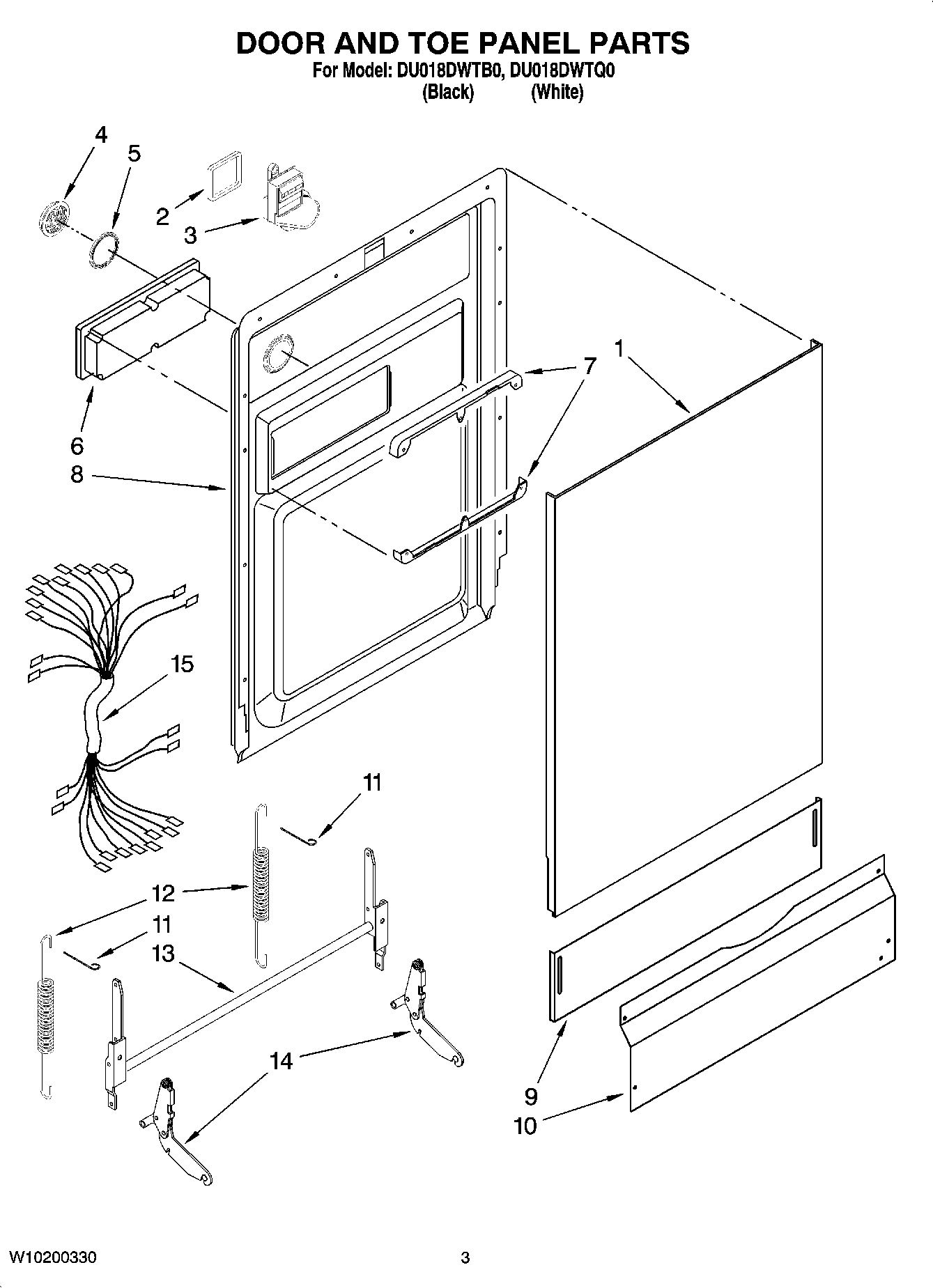

DU018DWTQ0 03 – DOOR AND TOE PANEL PARTS

DU018DWTQ0 03 – DOOR AND TOE PANEL PARTS

Written by

in

DU018DWTQ0 03 – DOOR AND TOE PANEL PARTS

Products

PositionProduct
1Panel, Door (Black)
1Panel, Door (White)
2Gasket, Vent
3Vent
4Deflector
5W10181554 Whirlpool Dishwasher Gasket
6DISPENSER
7Bracket Dispenser
8W10181599 Whirlpool Dishwasher Inner Door
9Panel, Toe (White)
9Panel, Toe (Black)
10Panel, Access (Black)
10Panel, Access (White)
11PIN
12Spring, Door
13Hinge, Bracket
14Hinge, Door (Left)
14Hinge, Door (Right)
15Wiring, Harness
