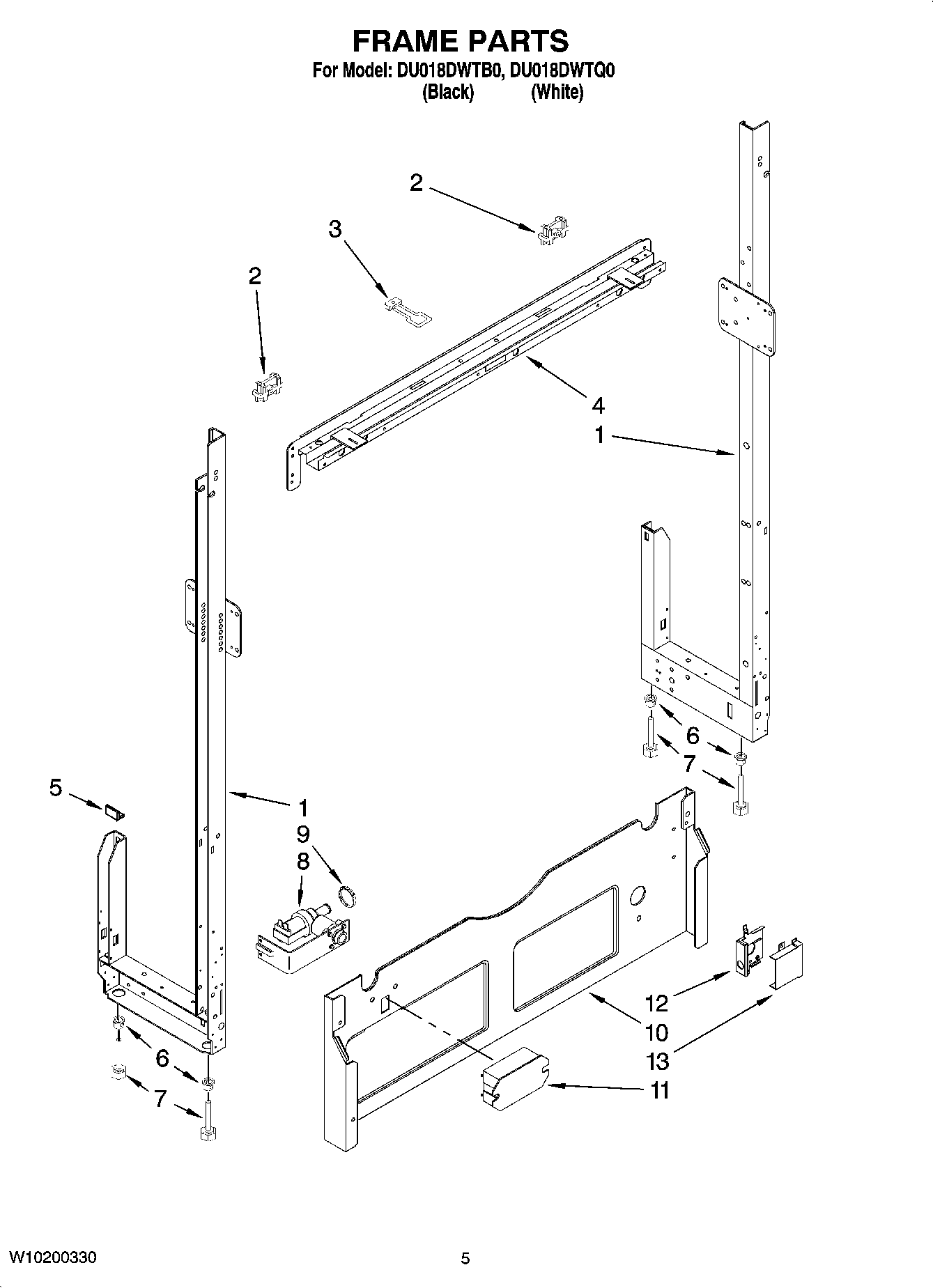

DU018DWTQ0 04 – FRAME PARTS

Written by

Products

Position	Product
1	Frame, Uprights (Right)
1	Frame, Uprights (Left)
2	Block (White)
2	Block (Black)
3	STRIKE
4	Brace, Upper (Black)
4	Brace, Upper (White)
5	PLATE
6	Nut, Foot
7	Foot
8	Valve, Inlet
9	W10199511 Whirlpool Gasket
10	Brace, Lower
11	W10181592 Whirlpool Dishwasher Relay Motor
12	Box, Terminal
13	Cover, Terminal Box
