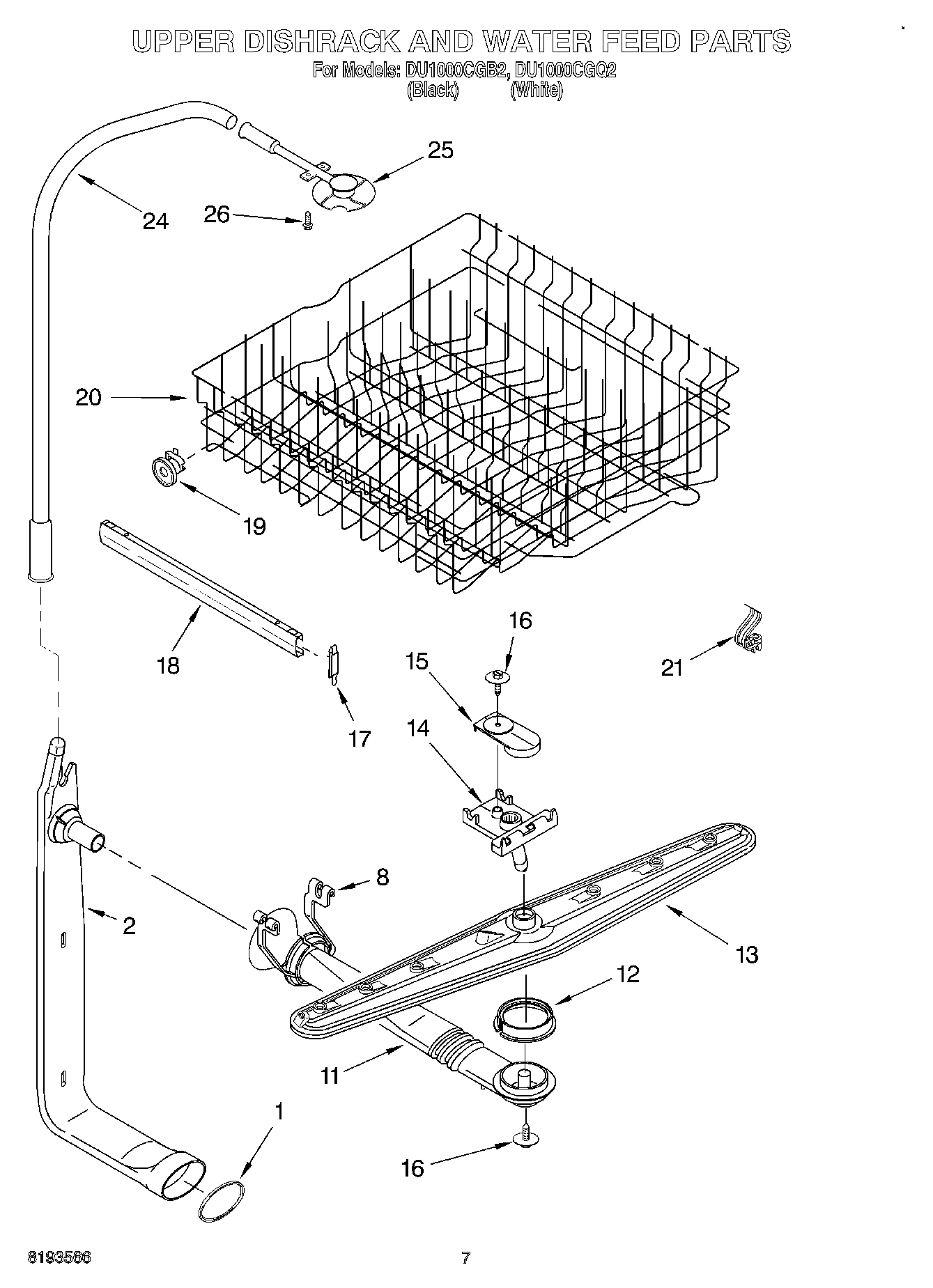

DU1000CGB2 05 – UPPER DISHRACK AND WATER FEED

Products

Position	Product
1	Seal, Tube
2	661651 Whirlpool Dishwasher Tube
8	WP8268843 Whirlpool Dishwasher Holder
11	WPW10258149 Whirlpool Dishwasher Manifold
12	WP3376846 Whirlpool Seal
13	WP8268840 Whirlpool Dishwasher Spray Arm
14	WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
15	WP8268812 Whirlpool Dishwasher Mounting Assembly
16	WPW10349488 Whirlpool Screw
17	WP3379941 Whirlpool Dishwasher Stop
18	WP3385089 Whirlpool Track
19	WP8268807 Whirlpool Dishwasher Upper Wheel
20	WPW10253040 Whirlpool Dishwasher Dish Rack
21	CLIP, NO FLIP
24	Tube (3rd Level)
25	WP3379369 Whirlpool Dishwasher Wash Assembly
26	WP489443 Whirlpool Refrigerator Screw
